Name: Centrally Mounted Components 2
Rating: 5.0 (1 reviews)

View All

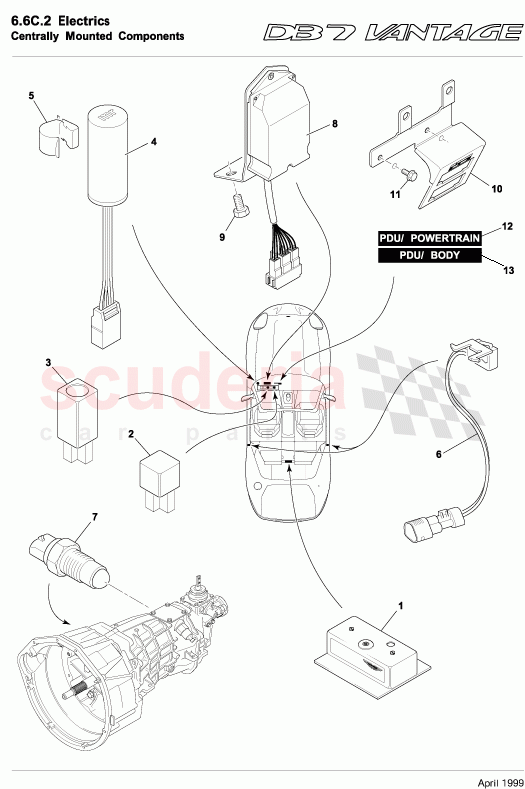

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3784330	SENSOR-MICROWAVE	$216.93	To Order

Photo	Part No	Description	Price (each)	Stock
	3785772	TIMER-HTD FT SCREEN	$14.03	To Order

Photo	Part No	Description	Price (each)	Stock
	3783301	CONTROL UNIT-DIMMER	$331.62	To Order

Photo	Part No	Description	Price (each)	Stock
	3781926	LOW COOLANT TRANSMITTER	$275.08	To Order

Photo	Part No	Description	Price (each)	Stock
	83111591AA	STRAP FIXING JETPRESS 36060-11	$1.86	To Order

Photo	Part No	Description	Price (each)	Stock
	3785435	SWITCH-REVERSE LIGHT MANUAL GEARBOX	$143.97	To Order

Photo	Part No	Description	Price (each)	Stock
	697162	SCREW 5/16 UNF x 5/8 HEX HEAD	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	3790152	MOUNTING BRACKET- PATS/OBDII RHD	$56.33	To Order
	3790151	MOUNTING BRACKET- PATS/OBDII LHD	$56.33	To Order

Photo	Part No	Description	Price (each)	Stock
	697119	SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	37123171AA	LABEL - PDU/POWER- TRAIN	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	37123172AA	LABEL - PDU/BODY	$3.74	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3784330	SENSOR-MICROWAVE	3784330 SENSOR-MICROWAVE	$216.93	1
2	3785772	TIMER-HTD FT SCREEN	3785772 TIMER-HTD FT SCREEN	$14.03	1
3	3783301	CONTROL UNIT-DIMMER	3783301 CONTROL UNIT-DIMMER	$331.62	1
4	3781926	LOW COOLANT TRANSMITTER	3781926 LOW COOLANT TRANSMITTER	$275.08	1
5	83111591AA	STRAP FIXING JETPRESS 36060-11	83111591AA STRAP FIXING JETPRESS 36060-11	$1.86	1
6	37122890AA	SWITCH - DOOR AJAR RH	37122890AA SWITCH - DOOR AJAR RH	$197.42	1
6	37122887AA	SWITCH - DOOR AJAR LH	37122887AA SWITCH - DOOR AJAR LH	$197.42	1
7	3785435	SWITCH-REVERSE LIGHT MANUAL GEARBOX	3785435 SWITCH-REVERSE LIGHT MANUAL GEARBOX Manual cars	$143.97	1
8	37123780AB	Module, wiper delay	37123780AB Module, wiper delay RHD	$271.48	1
8	37123781AB	WIPER RELAY MODULE LH	37123781AB WIPER RELAY MODULE LH LHD	$384.03	1
9	697162	SCREW 5/16 UNF x 5/8 HEX HEAD	697162 SCREW 5/16 UNF x 5/8 HEX HEAD	$0.47	2
10	3790152	MOUNTING BRACKET- PATS/OBDII RHD	3790152 MOUNTING BRACKET- PATS/OBDII RHD RHD	$56.33	1
10	3790151	MOUNTING BRACKET- PATS/OBDII LHD	3790151 MOUNTING BRACKET- PATS/OBDII LHD LHD	$56.33	1
11	697119	SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	697119 SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	$1.18	2
12	37123171AA	LABEL - PDU/POWER- TRAIN	37123171AA LABEL - PDU/POWER- TRAIN	$2.28	1
13	37123172AA	LABEL - PDU/BODY	37123172AA LABEL - PDU/BODY	$3.74	1

Centrally Mounted Components 2

Aston Martin DB7 Vantage
