Aston Martin DB7 Vantage - Underbonnet Components

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
37122428AA HORN-HIGH NOTE ASSY $69.85 To Order
Photo Part No Description Price (each) Stock
37122429AA HORN-LOW NOTE ASSY $54.33 To Order
Photo Part No Description Price (each) Stock
699897 DYRALOC M8 DAL A NUT $1.27 To Order
Photo Part No Description Price (each) Stock
699898 M8 NYLON SPACER 2MM $0.09 To Order
Photo Part No Description Price (each) Stock
3784729 RELAY MODULE SINGLE LATCHING $193.21 To Order
Photo Part No Description Price (each) Stock
3785427 RELAY $80.72 IN STOCK
Photo Part No Description Price (each) Stock
3786500 SECURITY ECU 303MHz $1,080.56 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.31 IN STOCK
Photo Part No Description Price (each) Stock
3784328 SECURITY SIREN ASSY $242.63 To Order
700673 NUT AND WASHER ASSY M6 x 1.0 HEX (PAINT SCRAPER) $0.71 To Order
Photo Part No Description Price (each) Stock
3784326 BONNET SWITCH $69.88 To Order
Photo Part No Description Price (each) Stock
697398 TIESTRAP-RELEASEABLE 4.6 x 165 $1.31 To Order
3785291 MODULE-MSF $399.30 To Order
3790075 Cable Tie, 290mm $0.11 IN STOCK
Photo Part No Description Price (each) Stock
33120741AD ASSY BRACKET MTG MISFIRE MODULE RH $53.46 To Order
700332 Nut, M6, paint clearing Enquire To Order
697119 SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8 $1.18 To Order
Photo Part No Description Price (each) Stock
1R123210112 CYL BLOCK HTR 240v $179.67 To Order
Photo Part No Description Price (each) Stock
1R123210113 CYL BLOCK HTR-120v $47.69 To Order
Photo Part No Description Price (each) Stock
9085345 WHEEL SPEED SENSOR $183.58 IN STOCK
699220 TIE STRAP RELEASABLE $0.77 To Order
3286515 WASHER-SEALING $7.09 To Order
Photo Part No Description Price (each) Stock
700332 Nut, M6, paint clearing Enquire To Order
Photo Part No Description Price (each) Stock
3885597 TEMP SENSOR-EXTERNAL $32.56 To Order
View All

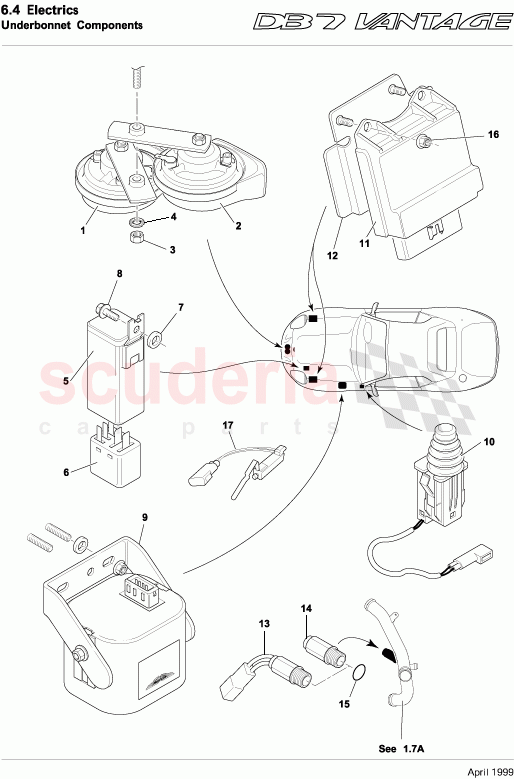

Underbonnet Components of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 37122428AA
HORN-HIGH NOTE ASSY 		$69.85 1
2 37122429AA
HORN-LOW NOTE ASSY 		$54.33 1
3 699897
DYRALOC M8 DAL A NUT 		$1.27 1
4 699898
M8 NYLON SPACER 2MM 		$0.09 2
5 3784729
RELAY MODULE SINGLE LATCHING 		$193.21 1
6 3785427
RELAY
IN STOCK 		$80.72 1
7 3786500
SECURITY ECU 303MHz 		$1,080.56 3
8 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.31 1
9 3784328
SECURITY SIREN ASSY 		$242.63 1
9 700673
NUT AND WASHER ASSY M6 x 1.0 HEX (PAINT SCRAPER) 		$0.71 2
10 3784326
BONNET SWITCH 		$69.88 1
11 697398
TIESTRAP-RELEASEABLE 4.6 x 165 		$1.31 1
11 3785291
MODULE-MSF 		$399.30 2
11 3790075
Cable Tie, 290mm
IN STOCK 		$0.11 3
12 33120741AD
ASSY BRACKET MTG MISFIRE MODULE RH 		$53.46 1
12 700332
Nut, M6, paint clearing 		- 1 Enquire
12 697119
SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8 		$1.18 1
13 1R123210112
CYL BLOCK HTR 240v 		$179.67 1
14 1R123210113
CYL BLOCK HTR-120v 		$47.69 1
15 9085345
WHEEL SPEED SENSOR
See also sect 6.6D
IN STOCK 		$183.58 2
15 699220
TIE STRAP RELEASABLE 		$0.77 1
15 3286515
WASHER-SEALING 		$7.09 1
16 700332
Nut, M6, paint clearing 		- 2 Enquire
17 3885597
TEMP SENSOR-EXTERNAL 		$32.56 1
