Interior Installation

Aston Martin DB7 Vantage

Find Your Part

Aston Martin DB7 Vantage - Interior Installation

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8123756AA STRUT ASSY-HEATER /AIRCON RH $48.34 To Order
Photo Part No Description Price (each) Stock
8123757AA STRUT ASSY-HEATER /AIRCON LH $129.69 To Order
Photo Part No Description Price (each) Stock
8982097 WASHER MALE SPHERICAL SEATING $1.13 To Order
Photo Part No Description Price (each) Stock
8982098 WASHER FEMALE SPHERICAL SEATING $1.13 To Order
Photo Part No Description Price (each) Stock
697119 SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8 $1.20 To Order
Photo Part No Description Price (each) Stock
697106 SCREW M8 x 20 HEX FLANGE HD GRD 8.8 $1.69 To Order
Photo Part No Description Price (each) Stock
8990042 SEAL AIRCON TO BODY $4.74 To Order
Photo Part No Description Price (each) Stock
8983049 SEAL-TOP DUCT $7.10 To Order
697411 Adhesive tape $11.92 To Order
Photo Part No Description Price (each) Stock
8982101 DUCT-AIR BLOWER TO AIRCON RH $24.46 To Order
Photo Part No Description Price (each) Stock
8982102 DUCT-AIR BLOWER TO AIRCON LH $24.46 To Order
Photo Part No Description Price (each) Stock
89121414AA DUCT CENTRE VENT CONNECTOR $80.20 To Order
Photo Part No Description Price (each) Stock
8984286 DUCT - FACIA $41.95 To Order
Photo Part No Description Price (each) Stock
37123985AA H/LAMP APERTURE FOAM $6.86 To Order
8982105 DUCT - DEMIST $484.40 To Order
Photo Part No Description Price (each) Stock
8984279 ASSY DUCT FOOT OUTLET-RH $42.75 To Order
8984280 ASSY-DUCT FOOT OUTLET-LH $42.75 To Order
Photo Part No Description Price (each) Stock
8984283 DUCT-PASSENGER FOOTWELL $54.28 To Order
697498PK SCREW-No6x13 FLG(10) $42.64 To Order
Photo Part No Description Price (each) Stock
8984288 DUCT DIFFUSER $35.87 To Order
8984289 DUCT DIFFUSER $35.87 To Order
Photo Part No Description Price (each) Stock
697802 SCREW-S/TAPP $0.24 To Order
Photo Part No Description Price (each) Stock
8982112 VACUUM MTR-FT FLAP & TOP FLAP $94.46 To Order
89124946AA Polyethylene foam CFPE20 Enquire To Order
8984138 DUCT ASSY- DISTRIBUTION $546.81 To Order
Photo Part No Description Price (each) Stock
91510 BLOWER MOTOR ASSY RH $1,674.95 To Order
Photo Part No Description Price (each) Stock
91511 BLOWER MOTOR ASSY LH $1,674.95 To Order
Photo Part No Description Price (each) Stock
8982131 ASSY STAY VOLUTE TO BODY INNER $39.89 To Order
Photo Part No Description Price (each) Stock
8983051 STAY ASSY-BLOWER TO BODY OUTER $0.73 To Order
Photo Part No Description Price (each) Stock
8982132 SEAL - ASSY BLOWERS $14.46 To Order
Photo Part No Description Price (each) Stock
8985245 GROMMET $3.40 To Order
Photo Part No Description Price (each) Stock
8982134 TUBE CONDENSATE DRN $0.48 To Order
Photo Part No Description Price (each) Stock
3280370 CONNECTOR $2.20 To Order
Photo Part No Description Price (each) Stock
8982136 CLIP $0.48 To Order
Photo Part No Description Price (each) Stock
697299 WASHER 1/4 S/PROOF INT $0.10 To Order
Photo Part No Description Price (each) Stock
697414 SCREW 1/4inUNFx3/4in HEX HEAD GRADE 8.8 $0.24 To Order
Photo Part No Description Price (each) Stock
697157 NUT 1/4 UNF NYLOC $0.19 To Order
Photo Part No Description Price (each) Stock
8972290 IN CAR SENSOR $351.07 To Order
8982138 ASSY SENSOR AMBIENT $548.63 To Order
697612 CABLE TIE STRAP Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8985242 Foot duct, RH Enquire To Order
8985243 Foot duct, LH Enquire To Order
8983651 Motor, servo vacuum $558.72 To Order
Photo Part No Description Price (each) Stock
8983652 EVAPORATOR SENSOR $903.88 To Order
Photo Part No Description Price (each) Stock
8982094 ECU AIR CON CROPPED CASE MK3 $2,389.70 To Order
Photo Part No Description Price (each) Stock
8982087 ASSY POT & MTG PLATE UPPER $439.84 To Order
Photo Part No Description Price (each) Stock
8986017 ASSY POT & MTG-LOWER Enquire To Order
89122289AA BLANKING PLUG $93.16 To Order
Photo Part No Description Price (each) Stock

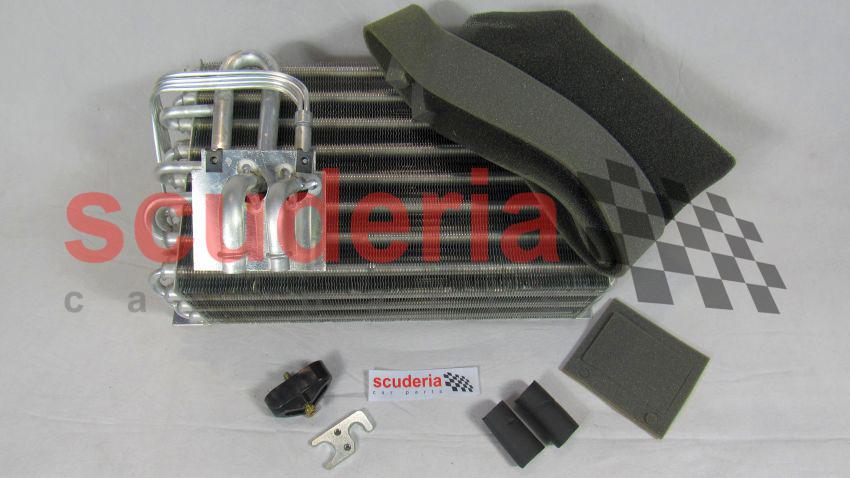

8985130 EVAPORATOR ASSY $1,396.15 To Order
Photo Part No Description Price (each) Stock
8983656P HTR MATRIX & SEALS $692.59 To Order
Photo Part No Description Price (each) Stock
8983657 `O' RING $20.15 To Order
Photo Part No Description Price (each) Stock
3481380 EDGE FINISHER- DRAFLEX STRIP $6.47 To Order
6785244 Gasket, air extraction trunk Enquire To Order
6784524 ASSY TRUNK AIR EXTRACTION SALOON $90.88 To Order
Photo Part No Description Price (each) Stock
6785244 Gasket, air extraction trunk Enquire To Order
6784862 SHROUD-AIR EXTRACT'N $23.32 To Order
6784524 ASSY TRUNK AIR EXTRACTION SALOON $90.88 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
89124873AA TUBE CENTRE CONSOLE $7.10 To Order
697449 SCREW No8 x 13 S T FLANGED AB $0.65 To Order
View All

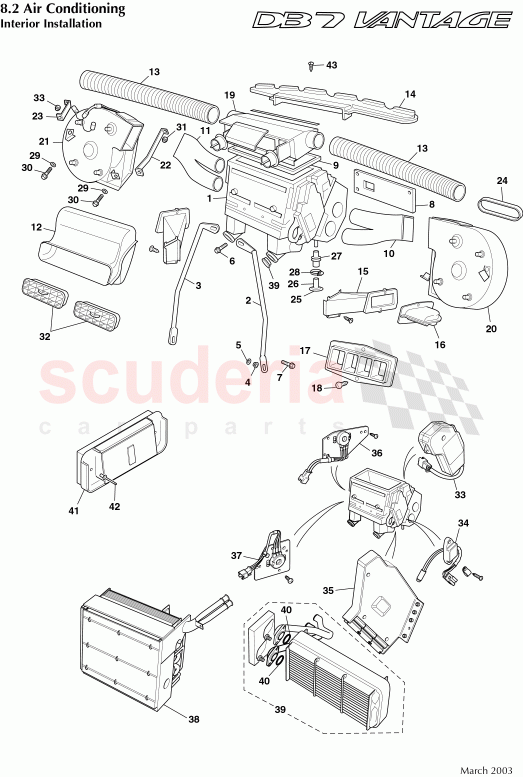

Interior Installation of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 8985730
SWITCH-WATER TEMP 		$85.63 1
2 8123756AA
STRUT ASSY-HEATER /AIRCON RH 		$48.34 1
3 8123757AA
STRUT ASSY-HEATER /AIRCON LH 		$129.69 1
4 8982097
WASHER MALE SPHERICAL SEATING 		$1.13 2
5 8982098
WASHER FEMALE SPHERICAL SEATING 		$1.13 2
6 697119
SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8 		$1.20 2
7 697106
SCREW M8 x 20 HEX FLANGE HD GRD 8.8 		$1.69 2
8 8990042
SEAL AIRCON TO BODY 		$4.74 1
9 8983049
SEAL-TOP DUCT 		$7.10 1
9 697411
Adhesive tape 		$11.92 1
10 8982101
DUCT-AIR BLOWER TO AIRCON RH 		$24.46 1
11 8982102
DUCT-AIR BLOWER TO AIRCON LH 		$24.46 1
12 89121414AA
DUCT CENTRE VENT CONNECTOR 		$80.20 1
13 8984286
DUCT - FACIA 		$41.95 2
14 37123985AA
H/LAMP APERTURE FOAM 		$6.86 1
14 8982105
DUCT - DEMIST 		$484.40 1
15 8984279
ASSY DUCT FOOT OUTLET-RH 		$42.75 1
15 8984280
ASSY-DUCT FOOT OUTLET-LH 		$42.75 1
16 8984283
DUCT-PASSENGER FOOTWELL
USA/CDN only 		$54.28 1
16 697498PK
SCREW-No6x13 FLG(10) 		$42.64 2
17 8984288
DUCT DIFFUSER
Not USA/CDN 		$35.87 1
17 8984289
DUCT DIFFUSER
Not USA/CDN 		$35.87 1
18 697802
SCREW-S/TAPP
Not USA/CDN 		$0.24 4
19 8982112
VACUUM MTR-FT FLAP & TOP FLAP
Front flap & top flap 		$94.46 2
19 89124946AA
Polyethylene foam CFPE20 		- 1 Enquire
19 8984138
DUCT ASSY- DISTRIBUTION 		$546.81 1
20 91510
BLOWER MOTOR ASSY RH 		$1,674.95 1
21 91511
BLOWER MOTOR ASSY LH 		$1,674.95 1
22 8982131
ASSY STAY VOLUTE TO BODY INNER 		$39.89 2
23 8983051
STAY ASSY-BLOWER TO BODY OUTER 		$0.73 2
24 8982132
SEAL - ASSY BLOWERS 		$14.46 2
25 8985245
GROMMET 		$3.40 2
26 8982134
TUBE CONDENSATE DRN 		$0.48 2
27 3280370
CONNECTOR 		$2.20 2
28 8982136
CLIP 		$0.48 2
29 697299
WASHER 1/4 S/PROOF INT 		$0.10 4
30 697414
SCREW 1/4inUNFx3/4in HEX HEAD GRADE 8.8 		$0.24 4
31 697157
NUT 1/4 UNF NYLOC 		$0.19 4
32 8972290
IN CAR SENSOR 		$351.07 1
32 8982138
ASSY SENSOR AMBIENT 		$548.63 1
32 697612
CABLE TIE STRAP 		- 10 Enquire
32 8983052
VENT CENTRE 		$50.62 2
33 8985242
Foot duct, RH 		- 1 Enquire
33 8985243
Foot duct, LH 		- 1 Enquire
33 8983651
Motor, servo vacuum 		$558.72 2
34 8983652
EVAPORATOR SENSOR 		$903.88 1
35 8982094
ECU AIR CON CROPPED CASE MK3 		$2,389.70 1
36 8982087
ASSY POT & MTG PLATE UPPER 		$439.84 1
37 8986017
ASSY POT & MTG-LOWER 		- 1 Enquire
37 89122289AA
BLANKING PLUG 		$93.16 2
38 8985130
EVAPORATOR ASSY 		$1,396.15 1
39 8983656P
HTR MATRIX & SEALS 		$692.59 1
40 8983657
`O' RING 		$20.15 2
41 3481380
EDGE FINISHER- DRAFLEX STRIP
Coupe 		$6.47 2
41 6785244
Gasket, air extraction trunk
Coupe 		- 4 Enquire
41 6784524
ASSY TRUNK AIR EXTRACTION SALOON
Coupe 		$90.88 4
42 6785244
Gasket, air extraction trunk
Volante 		- 2 Enquire
42 6784862
SHROUD-AIR EXTRACT'N
Volante 		$23.32 2
42 6784524
ASSY TRUNK AIR EXTRACTION SALOON
Volante 		$90.88 2
42 6783776
AIR EXTRACTION-TRUNK ASSY VOLANTE
Volante 		$141.74 2
42 697803
WASHER RIVET 0.250 -0.312
Volante 		$0.18 20
42 697803
WASHER RIVET 0.250 -0.312
Coupe 		$0.18 16
43 89124873AA
TUBE CENTRE CONSOLE 		$7.10 2
43 697449
SCREW No8 x 13 S T FLANGED AB 		$0.65 6
