Engine Compartment Installation

Aston Martin DB7 Vantage

Find Your Part

Aston Martin DB7 Vantage - Engine Compartment Installation

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
697800 BOLT M8 x1.25x 113.5 HEX FLG PILOT $25.83 To Order
Photo Part No Description Price (each) Stock
89120069AB Pipe & Hose Assy Evaporator to Condenser $1,043.82 To Order
Photo Part No Description Price (each) Stock
700554 O RING $0.61 IN STOCK
Photo Part No Description Price (each) Stock
700334 O RING $8.51 To Order
Photo Part No Description Price (each) Stock
89120068AC PIPE - EVAPORATOR TO CONDENSER $989.31 To Order
Photo Part No Description Price (each) Stock
8982079 EXPANSION VALVE $181.32 IN STOCK
Photo Part No Description Price (each) Stock
8982080 CLAMP PLATE $10.08 To Order
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.66 IN STOCK
Photo Part No Description Price (each) Stock
700263 O RING $3.28 IN STOCK
Photo Part No Description Price (each) Stock
89120465AC PIPE & HOSE ASSY RECEIVER DRIER TO EVAPORATOR $903.15 To Order
Photo Part No Description Price (each) Stock
700555 O RING $6.67 To Order
Photo Part No Description Price (each) Stock
8985238 RECEIVER DRIER $363.52 To Order
Photo Part No Description Price (each) Stock
699125 SCREW M6 x 30 HEX 8.8 $0.06 To Order
Photo Part No Description Price (each) Stock
697122 NUT M6 NYLOC $0.08 IN STOCK
Photo Part No Description Price (each) Stock
699083 SCREW M6 x 30 FLG HD $0.47 To Order
Photo Part No Description Price (each) Stock
699833 O RING 7.66mm ID x 1.78mm SECTION $3.09 IN STOCK
Photo Part No Description Price (each) Stock

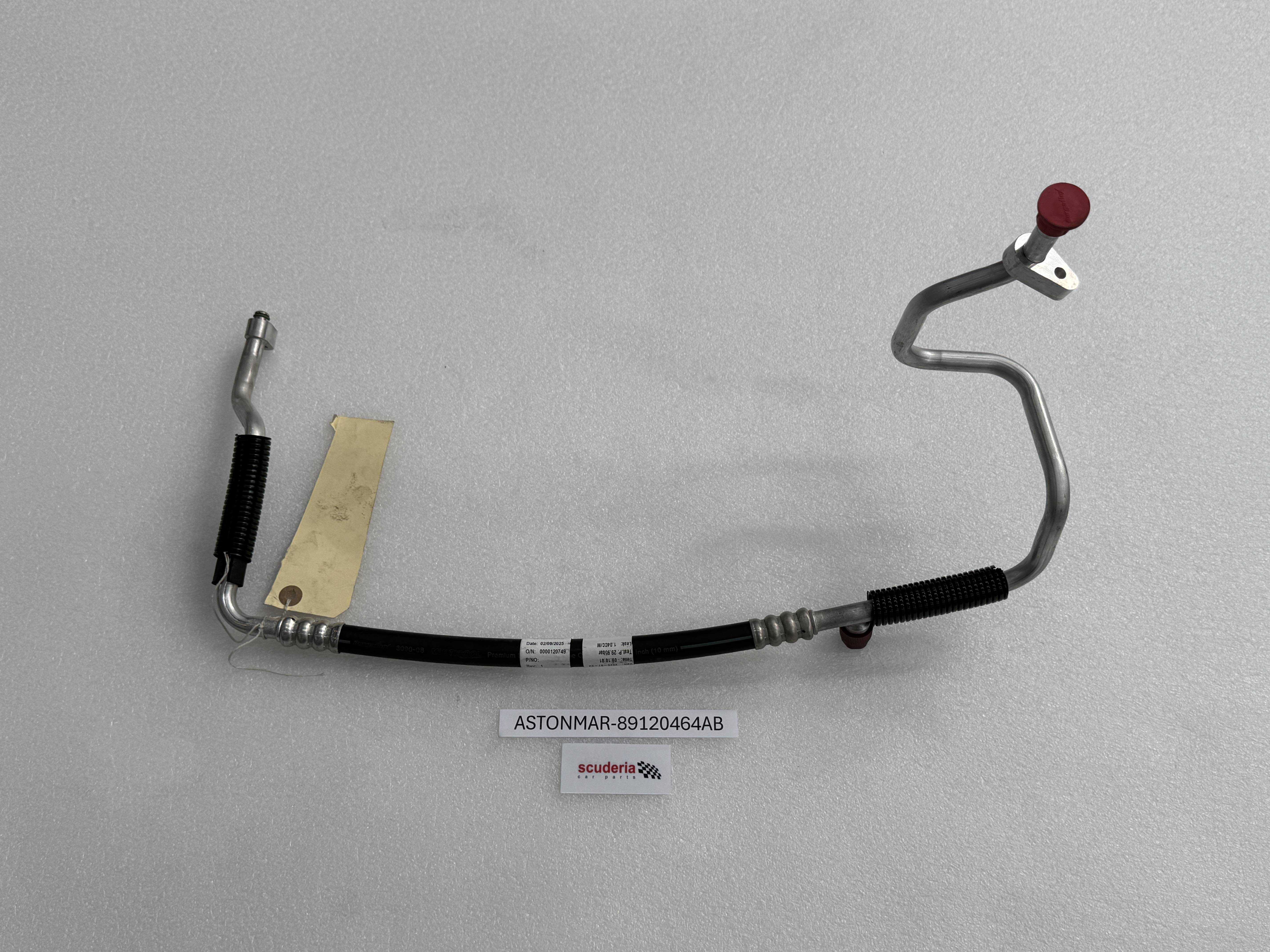

89120464AB PIPE & HOSE ASSY CONDENSER TO RECEIVER DRIER $993.94 To Order
Photo Part No Description Price (each) Stock
699084 SCREW M6 x 18 FLG HD $0.47 To Order
Photo Part No Description Price (each) Stock
699834 O RING $4.24 IN STOCK
Photo Part No Description Price (each) Stock
695526 NUT M6 HEX FLG GRD 8 ZINC PLATE $0.71 To Order
Photo Part No Description Price (each) Stock
699830 O RING-A/C HOSE 10.82IDx1.78 H7T39 $4.24 To Order
Photo Part No Description Price (each) Stock
8985240 A/C PRESSURE SWITCH $262.01 To Order
3790075 Cable Tie, 290mm $0.11 IN STOCK
Photo Part No Description Price (each) Stock
8985239 A/C CONDENSER $2,347.55 To Order
Photo Part No Description Price (each) Stock
697119 SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8 $1.18 To Order
Photo Part No Description Price (each) Stock
3781862 CLIP HARN STUD MOUNT $0.87 To Order
Photo Part No Description Price (each) Stock
97123155AA LABEL - AIR CON INFO $7.69 To Order
Photo Part No Description Price (each) Stock
8982083 DEFLECTOR SHIELD $8.87 To Order
699906 Clip, double C Enquire To Order
89111601AB PAG OIL DYE $63.09 To Order
View All
Engine Compartment Installation of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 5R1319D629AA
AIR CONDITIONING COMPRESSOR & CLUTCH
Zagato/DBAR1
IN STOCK 		$917.22 1
2 697800
BOLT M8 x1.25x 113.5 HEX FLG PILOT 		$25.83 3
3 89120069AB
Pipe & Hose Assy Evaporator to Condenser
Pipe assy to condenser 		$1,043.82 1
5 700554
O RING
IN STOCK 		$0.61 2
6 700334
O RING 		$8.51 1
7 89120068AC
PIPE - EVAPORATOR TO CONDENSER 		$989.31 1
8 8982079
EXPANSION VALVE
IN STOCK 		$181.32 1
9 8982080
CLAMP PLATE 		$10.08 1
10 HY53E804349AA
M6 X 14 SCREW HEX HD
IN STOCK 		$0.66 1
11 700263
O RING
IN STOCK 		$3.28 2
12 89120465AC
PIPE & HOSE ASSY RECEIVER DRIER TO EVAPORATOR 		$903.15 1
13 700555
O RING 		$6.67 1
14 8985238
RECEIVER DRIER 		$363.52 1
15 699125
SCREW M6 x 30 HEX 8.8 		$0.06 2
16 697122
NUT M6 NYLOC
IN STOCK 		$0.08 2
17 699083
SCREW M6 x 30 FLG HD 		$0.47 1
18 699833
O RING 7.66mm ID x 1.78mm SECTION
IN STOCK 		$3.09 1
19 89120464AB
PIPE & HOSE ASSY CONDENSER TO RECEIVER DRIER 		$993.94 1
20 699084
SCREW M6 x 18 FLG HD 		$0.47 1
21 699834
O RING
IN STOCK 		$4.24 1
22 695526
NUT M6 HEX FLG GRD 8 ZINC PLATE 		$0.71 2
23 699830
O RING-A/C HOSE 10.82IDx1.78 H7T39 		$4.24 2
24 8985240
A/C PRESSURE SWITCH 		$262.01 1
24 3790075
Cable Tie, 290mm
IN STOCK 		$0.11 2
25 8985239
A/C CONDENSER 		$2,347.55 1
26 697119
SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8 		$1.18 2
27 3781862
CLIP HARN STUD MOUNT 		$0.87 2
28 97123155AA
LABEL - AIR CON INFO 		$7.69 1
29 8982083
DEFLECTOR SHIELD 		$8.87 1
29 699906
Clip, double C 		- 1 Enquire
29 89111601AB
PAG OIL DYE 		$63.09 1
