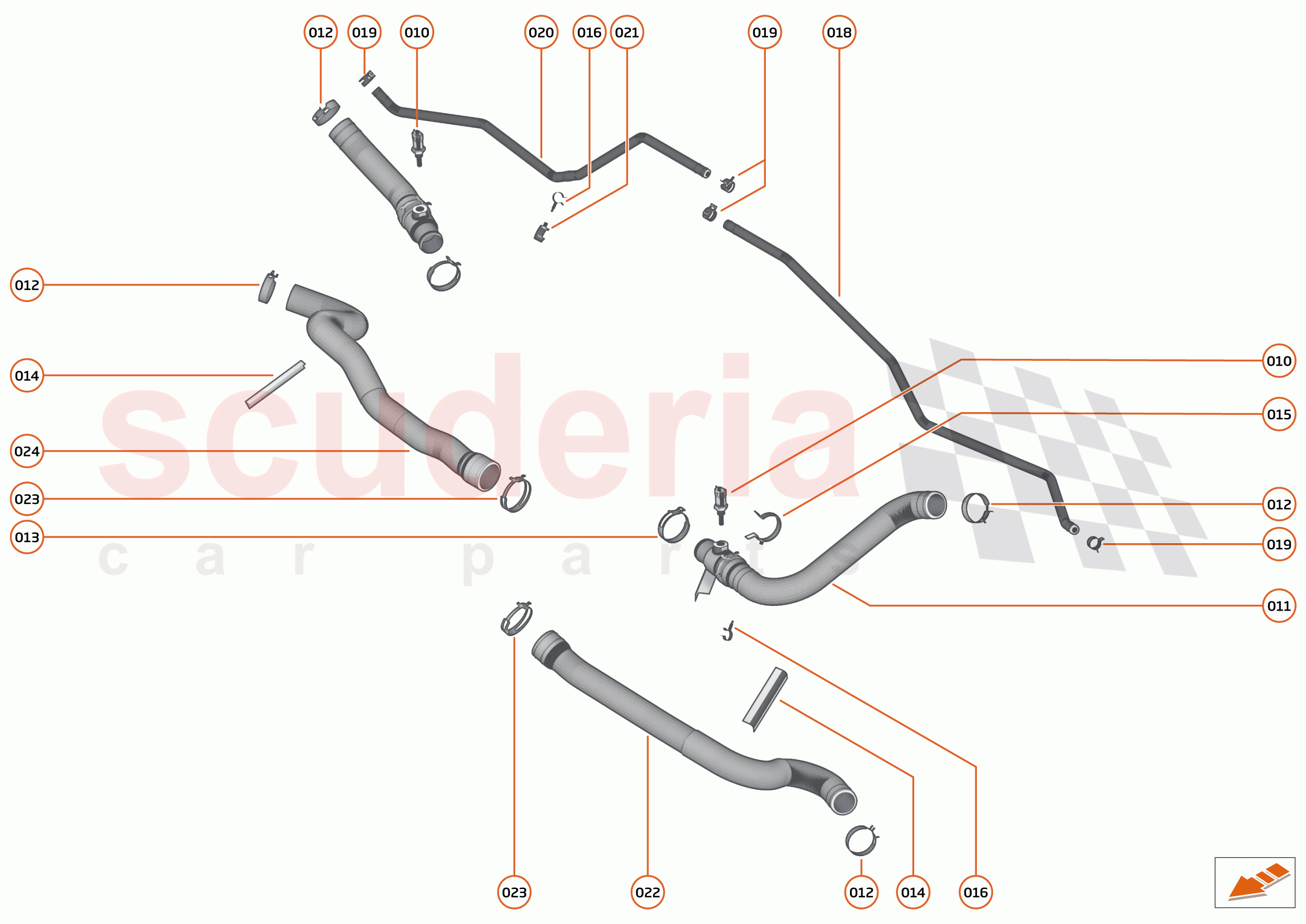

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	$38.02	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA072CP	RAD INLT HOSE LH	$769.48	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB056	SPRING BAND CLAMP - DIA 40	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB205	CLAMP - SPRING BAND - 43X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11C0570CP	ENGINE CRADLE FELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB057	CLIP - 39-45MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB034	CLIP - 14-15MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA066CP	RADIATOR BLEED HOSE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB199	CLAMP - SPRING BAND - 14X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA067CP	RADIATOR BLEED HOSE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB120	CLIP - 90 DEGREE - FEMALE - 20-22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA064CP	RAD OLET HOSE LH WITH PA SLEEV	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB206	CLAMP - SPRING BAND - 47X12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA065CP	RAD OLET HOSE RH W-SLEEVE	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11L0247CP	SENSOR - COOLANT TEMPERATURE - ENGINE	11L0247CP SENSOR - COOLANT TEMPERATURE - ENGINE	$38.02	2
011	23LA072CP	RAD INLT HOSE LH	23LA072CP RAD INLT HOSE LH	$769.48	1
012	00RB056	SPRING BAND CLAMP - DIA 40	00RB056 SPRING BAND CLAMP - DIA 40	-	4	Enquire
013	00RB205	CLAMP - SPRING BAND - 43X12	00RB205 CLAMP - SPRING BAND - 43X12	-	1	Enquire
014	11C0570CP	ENGINE CRADLE FELT	11C0570CP ENGINE CRADLE FELT	-	2	Enquire
015	00RB057	CLIP - 39-45MM - FEMALE	00RB057 CLIP - 39-45MM - FEMALE	-	1	Enquire
016	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE	-	2	Enquire
017	23LA073CP	RAD INLT HOSE RH	23LA073CP RAD INLT HOSE RH	$769.48	1
018	23LA066CP	RADIATOR BLEED HOSE LH	23LA066CP RADIATOR BLEED HOSE LH	-	1	Enquire
019	00RB199	CLAMP - SPRING BAND - 14X12	00RB199 CLAMP - SPRING BAND - 14X12	-	4	Enquire
020	23LA067CP	RADIATOR BLEED HOSE RH	23LA067CP RADIATOR BLEED HOSE RH	-	1	Enquire
021	00RB120	CLIP - 90 DEGREE - FEMALE - 20-22	00RB120 CLIP - 90 DEGREE - FEMALE - 20-22	-	1	Enquire
022	23LA064CP	RAD OLET HOSE LH WITH PA SLEEV	23LA064CP RAD OLET HOSE LH WITH PA SLEEV	-	1	Enquire
023	00RB206	CLAMP - SPRING BAND - 47X12	00RB206 CLAMP - SPRING BAND - 47X12	-	1	Enquire
024	23LA065CP	RAD OLET HOSE RH W-SLEEVE	23LA065CP RAD OLET HOSE RH W-SLEEVE	-	1	Enquire
