29 - COOLING SYSTEM - 29.5 - LOW TEMPERATURE RADIATORS AND FANS of McLaren McLaren Speedtail

View All

McLaren Speedtail - 29 - COOLING SYSTEM - 29.5 - LOW TEMPERATURE RADIATORS AND FANS

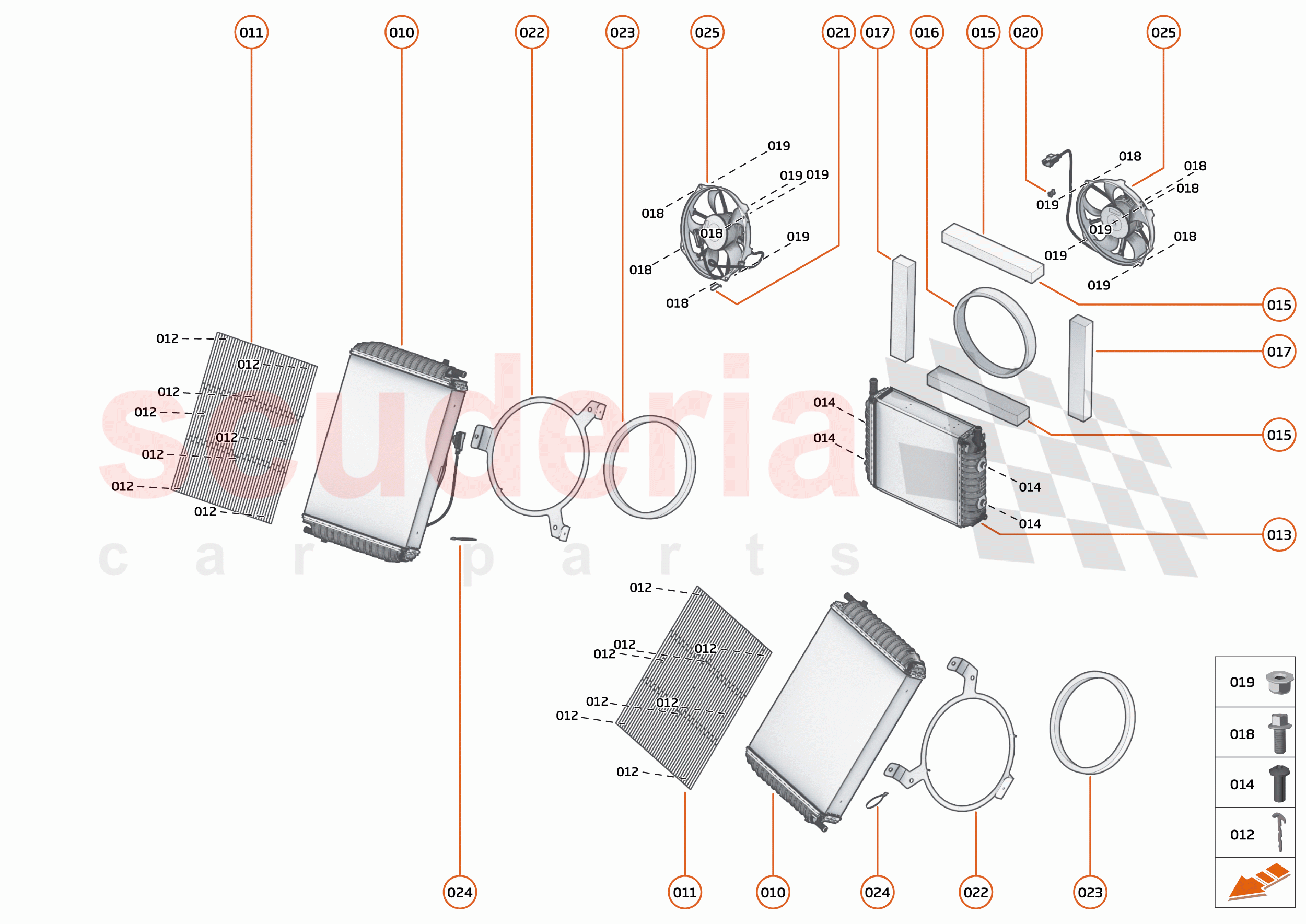

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13L0183CP	LOW TEMPERATURE RADIATOR - CHARGE COOLER	$789.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11L0528CP	LOW TEMPERATURE RADIATOR - GRILL - STANDARD	$38.49	To Order

Photo	Part No	Description	Price (each)	Stock
	11L0529CP	LOW TEMPERATURE RADIATOR - GRILL - PEGS	$3.07	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA311CP	Color codes: PRE-COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA689	BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA317CP	SEAL-BODY TO RADIATOR TOP	$38.00	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA318CP	SEAL-BODY TO RADIATOR FRONT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA320CP	SEAL-BODY TO RADIATOR SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL001	CABLE TIE - FIRTREE BASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL013	CABLE TIE - 360X4.8MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA324CP	LTR FAN BRACKET	$229.58	To Order

Photo	Part No	Description	Price (each)	Stock
	23LA325CP	FOAM LTR FAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL010	CABLE TIE - SF175-50X	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	23GA048CP	SUCTION FAN MTR	$250.33	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RM004	RIVET - 3.28.X 8MM - BOLLHOFF	00RM004 RIVET - 3.28.X 8MM - BOLLHOFF	-	1	Enquire
010	13L0183CP	LOW TEMPERATURE RADIATOR - CHARGE COOLER	13L0183CP LOW TEMPERATURE RADIATOR - CHARGE COOLER	$789.52	2
011	11L0528CP	LOW TEMPERATURE RADIATOR - GRILL - STANDARD	11L0528CP LOW TEMPERATURE RADIATOR - GRILL - STANDARD	$38.49	2
012	11L0529CP	LOW TEMPERATURE RADIATOR - GRILL - PEGS	11L0529CP LOW TEMPERATURE RADIATOR - GRILL - PEGS	$3.07	16
013	23LA311CP	Color codes: PRE-COOLER	23LA311CP Color codes: PRE-COOLER Color codes: PRE-COOLER;	-	1	Enquire
014	00RA689	BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX	00RA689 BTN HD FL-M6X12-SS BLACK TORX - BTN HD FL-M6X12-SS BLACK TORX	-	4	Enquire
015	23LA317CP	SEAL-BODY TO RADIATOR TOP	23LA317CP SEAL-BODY TO RADIATOR TOP	$38.00	2
016	23LA318CP	SEAL-BODY TO RADIATOR FRONT	23LA318CP SEAL-BODY TO RADIATOR FRONT	-	1	Enquire
017	23LA320CP	SEAL-BODY TO RADIATOR SIDE	23LA320CP SEAL-BODY TO RADIATOR SIDE	-	2	Enquire
018	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	8	Enquire
019	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	8	Enquire
020	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE	-	1	Enquire
021	00RL013	CABLE TIE - 360X4.8MM	00RL013 CABLE TIE - 360X4.8MM	-	1	Enquire
022	23LA324CP	LTR FAN BRACKET	23LA324CP LTR FAN BRACKET	$229.58	2
023	23LA325CP	FOAM LTR FAN	23LA325CP FOAM LTR FAN	-	2	Enquire
024	00RL010	CABLE TIE - SF175-50X	00RL010 CABLE TIE - SF175-50X	-	2	Enquire
025	23GA048CP	SUCTION FAN MTR	23GA048CP SUCTION FAN MTR	$250.33	2
