McLaren Speedtail - 30 - HVAC - 30.2 - HVAC FLUIDS CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
23AA860CP ASSY-HOSE-COMPRESSOR-CONDENSOR $622.59 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
23AA862CP ASSY-HOSE-HVAC-COMPRESSOR-REAR $783.50 To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
23AA864CP ASSY HOSE-CONDENSOR LATERAL $1,299.33 To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
00RB029 P CLIP - DIA 45-M6 Enquire To Order
Photo Part No Description Price (each) Stock
12A2757CP RECEIVER DRIER - HVAC $443.10 To Order
Photo Part No Description Price (each) Stock
23LA349CP BRKT - DRYER AND CANISTER $93.36 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
23AA870CP ASSY-HOSE-CONDENSER-RECIEVER D $523.34 To Order
Photo Part No Description Price (each) Stock
23AA872CP ASSY-HOSE-RECEIVER-DRIER-HVAC- $1,272.25 To Order
Photo Part No Description Price (each) Stock
23AA874CP SUCTN PIPE - EVAP TO IHX $601.54 To Order
Photo Part No Description Price (each) Stock
23AA876CP SUCTN PIPE - IHX TO COMPRSR $250.45 To Order
Photo Part No Description Price (each) Stock
23AA400CP HOSE-HEATER-PUMP-HVAC Enquire To Order
Photo Part No Description Price (each) Stock
23AA404CP ASSY-TUNNEL IHX UNIT $1,155.95 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB019 CLIP - 90DEG - FEMALE - 10-12MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB045 CLIP - 9.5-10MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB098 P-CLIP - DIA 10 - SILICONE Enquire To Order
Photo Part No Description Price (each) Stock
23LA236CP CLIP AIRCON SUCTION AND IHX $224.11 To Order
Photo Part No Description Price (each) Stock
00RB202 CLAMP - SPRING BAND - 23X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB145 CLAMP - SPRING BAND - 26/12 Enquire To Order
Photo Part No Description Price (each) Stock
11A4434CP CLAMP PLATE - HVAC EVAPORATOR CONNECTION $72.24 To Order
Photo Part No Description Price (each) Stock
11A4433CP CLAMP PLATE - RECEIVER DRIER - HVAC $62.60 To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC038 WASHER - WAVE M8 Enquire To Order
View All

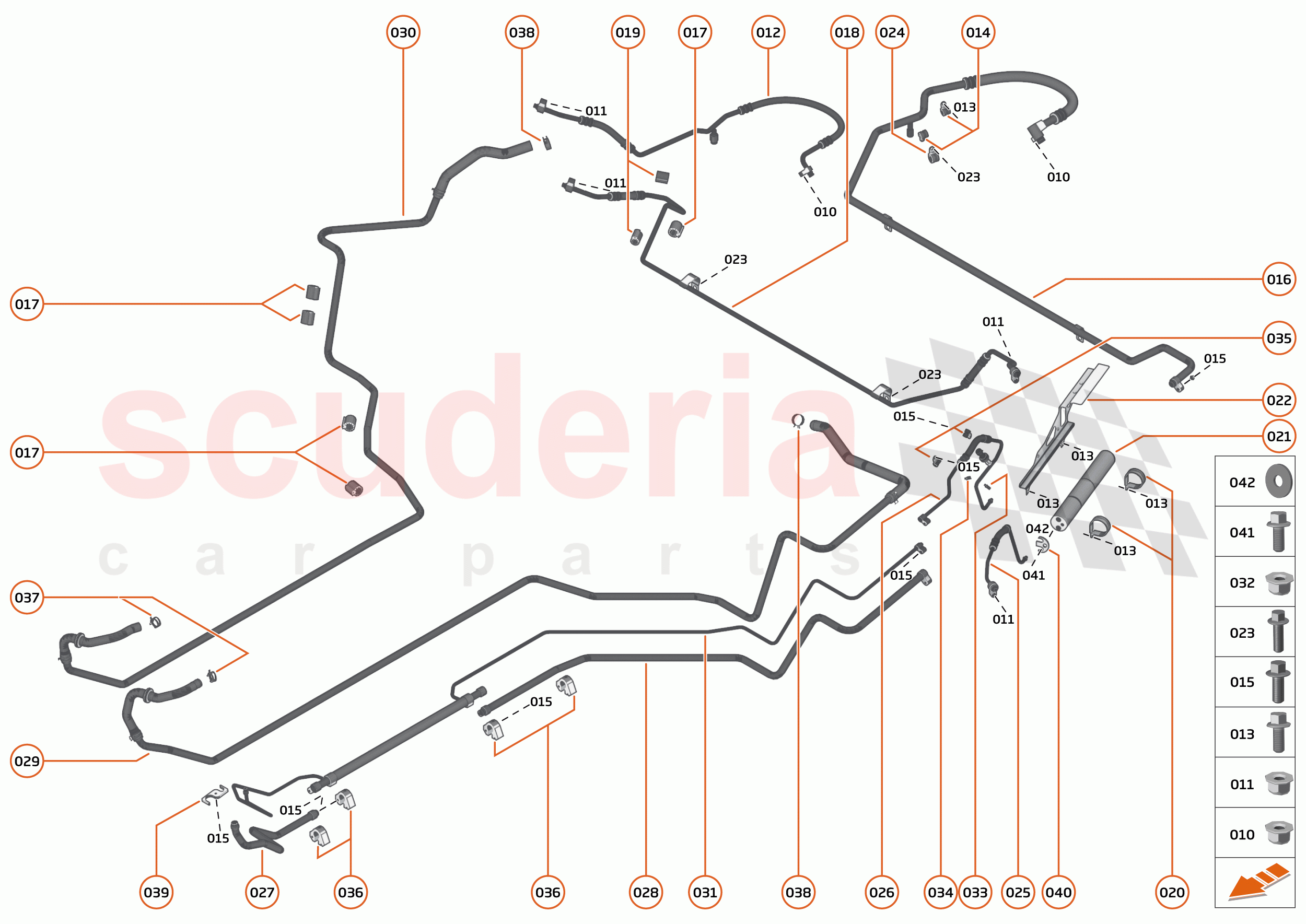

30 - HVAC - 30.2 - HVAC FLUIDS CIRCUIT of McLaren McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A4547CP
Cap Set - HVAC Fill Point 		$33.71 1
000 11A4061CP
Connection O-ring Kit - HVAC 		$228.37 1
010 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 2 Enquire
011 00RA075
NUT - M8-8 - HEX 		- 4 Enquire
012 23AA860CP
ASSY-HOSE-COMPRESSOR-CONDENSOR 		$622.59 1
013 00RA313
SCREW - M6X16 - HEX - SILVER 		- 5 Enquire
014 00RB005
P CLIP - DIA 16 		- 2 Enquire
015 00RA120
SCREW - M6X25 - HEX 		- 7 Enquire
016 23AA862CP
ASSY-HOSE-HVAC-COMPRESSOR-REAR 		$783.50 1
017 00RA367
PIPE PROTECTOR - 19MM ID 		- 5 Enquire
018 23AA864CP
ASSY HOSE-CONDENSOR LATERAL 		$1,299.33 1
019 00RA357
PIPE PROTECTOR 		- 2 Enquire
020 00RB029
P CLIP - DIA 45-M6 		- 2 Enquire
021 12A2757CP
RECEIVER DRIER - HVAC 		$443.10 1
022 23LA349CP
BRKT - DRYER AND CANISTER 		$93.36 1
023 00RA061
Screw - M6x16 - Flange Hex 		- 3 Enquire
024 00RB060
P CLIP - DIA 20 		- 1 Enquire
025 23AA870CP
ASSY-HOSE-CONDENSER-RECIEVER D 		$523.34 1
026 23AA872CP
ASSY-HOSE-RECEIVER-DRIER-HVAC- 		$1,272.25 1
027 23AA874CP
SUCTN PIPE - EVAP TO IHX 		$601.54 1
028 23AA876CP
SUCTN PIPE - IHX TO COMPRSR 		$250.45 1
029 23LA340CP
HOSE-HEATER-HVAC-ENGINE 		$779.01 1
029 23AA401CP
HOSE-HEATER-HVAC-ENGINE 		- 1 Enquire
030 23AA400CP
HOSE-HEATER-PUMP-HVAC 		- 1 Enquire
031 23AA404CP
ASSY-TUNNEL IHX UNIT 		$1,155.95 1
032 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
033 00RB019
CLIP - 90DEG - FEMALE - 10-12MM 		- 1 Enquire
034 00RB045
CLIP - 9.5-10MM - MALE 		- 1 Enquire
035 00RB098
P-CLIP - DIA 10 - SILICONE 		- 2 Enquire
036 23LA236CP
CLIP AIRCON SUCTION AND IHX 		$224.11 4
037 00RB202
CLAMP - SPRING BAND - 23X12 		- 2 Enquire
038 00RB145
CLAMP - SPRING BAND - 26/12 		- 1 Enquire
039 11A4434CP
CLAMP PLATE - HVAC EVAPORATOR CONNECTION 		$72.24 1
040 11A4433CP
CLAMP PLATE - RECEIVER DRIER - HVAC 		$62.60 1
041 00RA002
BOLT - M8X20 - HEX 		- 1 Enquire
042 00RC038
WASHER - WAVE M8 		- 1 Enquire
