17 - Suspension - 17.2 - Uprights Front

McLaren Senna

Find Your Part

McLaren Senna - 17 - SUSPENSION - 17.2 - UPRIGHTS FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RA250 SCREW - M3X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15BA317CP UPRIGHT - SUSPENSION - FRONT - RH $6,263.33 To Order
Photo Part No Description Price (each) Stock
15BA255CP HUB WHEEL BEARING - CENTRE LOCK - FR - RH $2,208.74 To Order
Photo Part No Description Price (each) Stock
11B1515RP TOPHAT - TRACKROD - OUTER BALL JOINT - 675LT $48.32 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $62.81 To Order
Photo Part No Description Price (each) Stock
14B0714CP WASHER - M12X23 $2.88 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH $124.83 To Order
16MB358CP SENSOR HUB ACCELEROMETER FR RH - ONLY $541.26 To Order
Photo Part No Description Price (each) Stock
14BA220CP HEX SOCKET HD CAP M12X30 8.8 $3.44 To Order
Photo Part No Description Price (each) Stock
15BA315CP PROTECTOR CAP - HUB $38.39 To Order
Photo Part No Description Price (each) Stock
15BA254CP HUB WHEEL BEARING - CENTRE LOCK - FR - LH $2,208.74 To Order
Photo Part No Description Price (each) Stock
15BA316CP UPRIGHT - SUSPENSION - FRONT - LH $6,282.65 To Order
View All

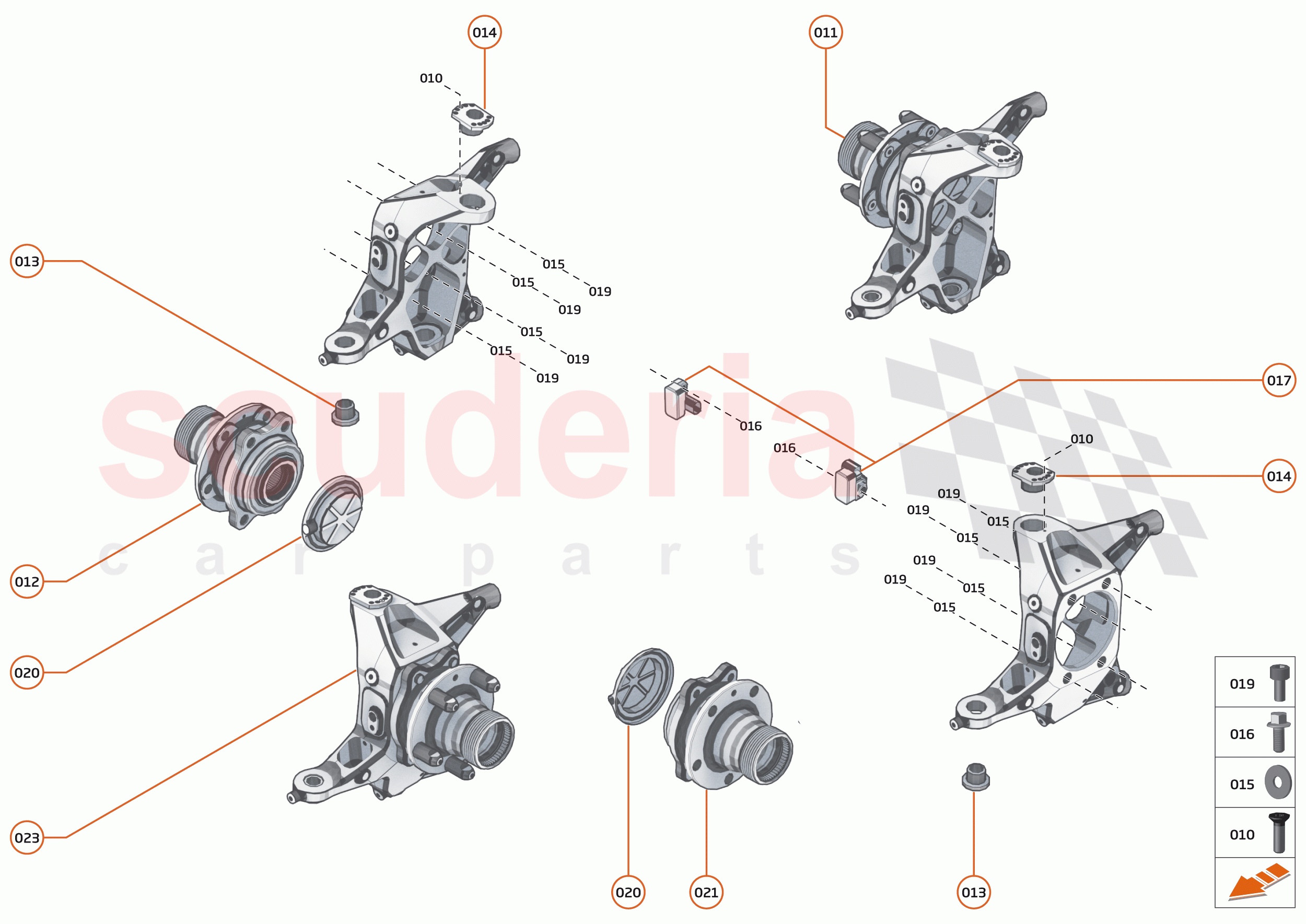

17 - SUSPENSION - 17.2 - UPRIGHTS FRONT of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 RA250
SCREW - M3X12 - HEX 		- 2 Enquire
011 15BA317CP
UPRIGHT - SUSPENSION - FRONT - RH 		$6,263.33 -
012 15BA255CP
HUB WHEEL BEARING - CENTRE LOCK - FR - RH 		$2,208.74 1
013 11B1515RP
TOPHAT - TRACKROD - OUTER BALL JOINT - 675LT 		$48.32 2
014 11B0541CP
TOPHAT - CAMBER ADJUSTMENT 		$62.81 2
015 14B0714CP
WASHER - M12X23 		$2.88 8
016 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2 Enquire
017 16MB093CP
SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH 		$124.83 2
017 16MB358CP
SENSOR HUB ACCELEROMETER FR RH - ONLY 		$541.26 2
019 14BA220CP
HEX SOCKET HD CAP M12X30 8.8 		$3.44 8
020 15BA315CP
PROTECTOR CAP - HUB 		$38.39 2
021 15BA254CP
HUB WHEEL BEARING - CENTRE LOCK - FR - LH 		$2,208.74 1
023 15BA316CP
UPRIGHT - SUSPENSION - FRONT - LH 		$6,282.65 1
