McLaren Senna - 17 - SUSPENSION - 17.8 - SUSPENSION FLUID SYSTEMS - FRONT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
15BA234CP ACCUMULATOR LH FR/RR - SUSPENSION - FR (EX.P23) AND RR (INC.P23) - LH $8,719.62 To Order
Photo Part No Description Price (each) Stock
00RB221 CLAMP - HOSE - 90-110 Enquire To Order
Photo Part No Description Price (each) Stock
15BA022CP HOUSING - KINETIC DAMPER - MAPMU - FRONT $1,446.82 To Order
Photo Part No Description Price (each) Stock
00RB187 CLIP - SNAPLOC - 14X7 Enquire To Order
Photo Part No Description Price (each) Stock
00RA585 STUD BALL - M6X9 Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA201 BOLT - M5X0.8X30 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB127 P-CLIP - 12/13 - EPDM Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11M0252CP Sensor - Accelerometer $192.89 To Order
Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
Photo Part No Description Price (each) Stock
14B0672CP PIPE - SUSPENSION FRONT - LATERAL - REBOUND $427.14 To Order
Photo Part No Description Price (each) Stock
14B0671CP PIPE - SUSPENSION FRONT - LATERAL - COMPRESSION $427.14 To Order
Photo Part No Description Price (each) Stock
00RA083 SCREW - M6X20 - FLANGE HEX Enquire To Order
Photo Part No Description Price (each) Stock
15BA027CP AUTOMATIC - PRESSURE MONITORING UNIT $2,990.13 To Order
Photo Part No Description Price (each) Stock
00RA099 SCREW - M4X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15BA151CP KEEP PLATE - 14MM $46.25 To Order
Photo Part No Description Price (each) Stock
00RB191 P-CLIP - 14X15 Enquire To Order
Photo Part No Description Price (each) Stock
00RB131 HOSE SEPERATOR PHS6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA002 BOLT - M8X20 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
15BA016CP PIPE - KINETIC DAMPER BUMP - FRONT LH - FR $1,138.16 To Order
Photo Part No Description Price (each) Stock
15BA017CP PIPE - KINETIC DAMPER BUMP - FRONT RH - FR $617.30 To Order
Photo Part No Description Price (each) Stock
15BA018CP PIPE - KINETIC DAMPER REBOUND - FRONT LH - FR $501.55 To Order
Photo Part No Description Price (each) Stock
15BA019CP PIPE - KINETIC DAMPER REBOUND - FRONT RH - FR $1,446.82 To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
15BA020CP PIPE - KINETIC DAMPER FEED - FRONT $252.40 To Order
Photo Part No Description Price (each) Stock
15BA084CP KEEP PLATE - MICRO APMU - FRONT $53.37 To Order
Photo Part No Description Price (each) Stock
00RA484 BOLT - HEX HEAD - FLANGED - M8X20 Enquire To Order
Photo Part No Description Price (each) Stock
15BA235CP KDAMP-CARBON-ACCUM-BUMP-RR-LH $8,719.62 To Order
Photo Part No Description Price (each) Stock
15BA100CP CONTROL UNIT - CHASSIS $7,768.56 To Order
View All

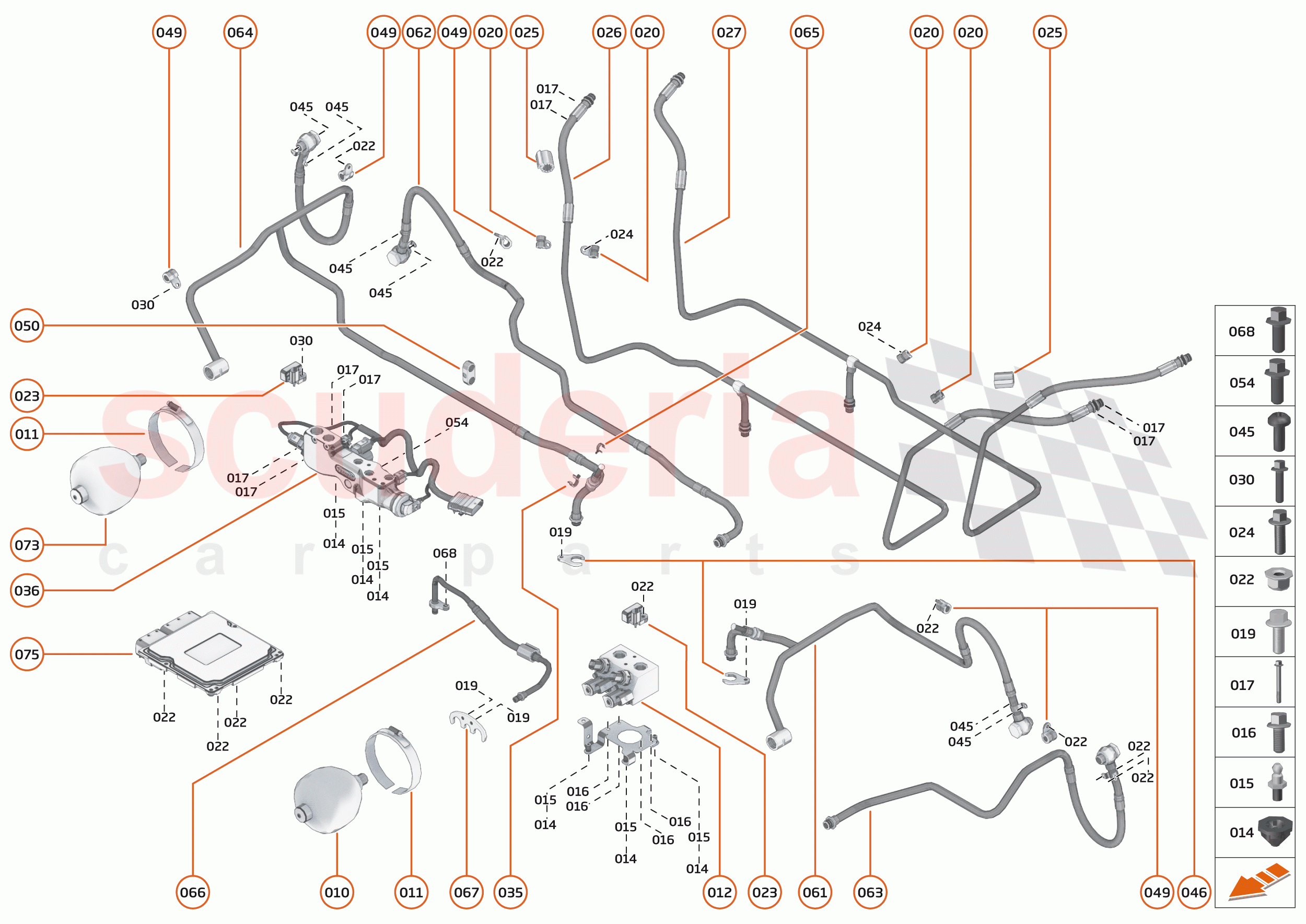

17 - SUSPENSION - 17.8 - SUSPENSION FLUID SYSTEMS - FRONT of McLaren McLaren Senna Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 14BA263CP
O-RING - VITON - BLACK - 224000NT 		$48.53 2
010 15BA234CP
ACCUMULATOR LH FR/RR - SUSPENSION - FR (EX.P23) AND RR (INC.P23) - LH 		$8,719.62 1
011 00RB221
CLAMP - HOSE - 90-110 		- 2 Enquire
012 15BA022CP
HOUSING - KINETIC DAMPER - MAPMU - FRONT 		$1,446.82 1
013 15BA070CP
BRACKET - APMU - FRONT 		$82.49 1
014 00RB187
CLIP - SNAPLOC - 14X7 		- 6 Enquire
015 00RA585
STUD BALL - M6X9 		- 6 Enquire
016 00RA087
SCREW - M5X10 - HEX 		- 4 Enquire
017 00RA201
BOLT - M5X0.8X30 - HEX 		- 8 Enquire
019 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4 Enquire
020 00RB127
P-CLIP - 12/13 - EPDM 		- 4 Enquire
022 00RA055
NUT - M6 - LOCKING - HEX 		- 9 Enquire
023 11M0252CP
Sensor - Accelerometer 		$192.89 2
024 00RA120
SCREW - M6X25 - HEX 		- 2 Enquire
025 00RA357
PIPE PROTECTOR 		- 2 Enquire
026 14B0672CP
PIPE - SUSPENSION FRONT - LATERAL - REBOUND 		$427.14 1
027 14B0671CP
PIPE - SUSPENSION FRONT - LATERAL - COMPRESSION 		$427.14 1
030 00RA083
SCREW - M6X20 - FLANGE HEX 		- 2 Enquire
036 15BA027CP
AUTOMATIC - PRESSURE MONITORING UNIT 		$2,990.13 1
045 00RA099
SCREW - M4X25 - HEX 		- 8 Enquire
046 15BA151CP
KEEP PLATE - 14MM 		$46.25 2
049 00RB191
P-CLIP - 14X15
Superseded parts: 00RB003; 		- 5 Enquire
050 00RB131
HOSE SEPERATOR PHS6 		- 1 Enquire
054 00RA002
BOLT - M8X20 - HEX 		- 1 Enquire
061 15BA016CP
PIPE - KINETIC DAMPER BUMP - FRONT LH - FR 		$1,138.16 1
062 15BA017CP
PIPE - KINETIC DAMPER BUMP - FRONT RH - FR 		$617.30 1
063 15BA018CP
PIPE - KINETIC DAMPER REBOUND - FRONT LH - FR 		$501.55 1
064 15BA019CP
PIPE - KINETIC DAMPER REBOUND - FRONT RH - FR 		$1,446.82 1
065 00RB018
CLIP - 11-13MM - MALE 		- 1 Enquire
066 15BA020CP
PIPE - KINETIC DAMPER FEED - FRONT 		$252.40 1
067 15BA084CP
KEEP PLATE - MICRO APMU - FRONT 		$53.37 1
068 00RA484
BOLT - HEX HEAD - FLANGED - M8X20 		- 1 Enquire
069 00RA366
PIPE PROTECTOR - 13MM ID 		- 1 Enquire
073 15BA235CP
KDAMP-CARBON-ACCUM-BUMP-RR-LH 		$8,719.62 1
075 15BA100CP
CONTROL UNIT - CHASSIS 		$7,768.56 1
