McLaren Senna - 20 - STEERING - 20.1 - STEERING FLUID SYSTEM

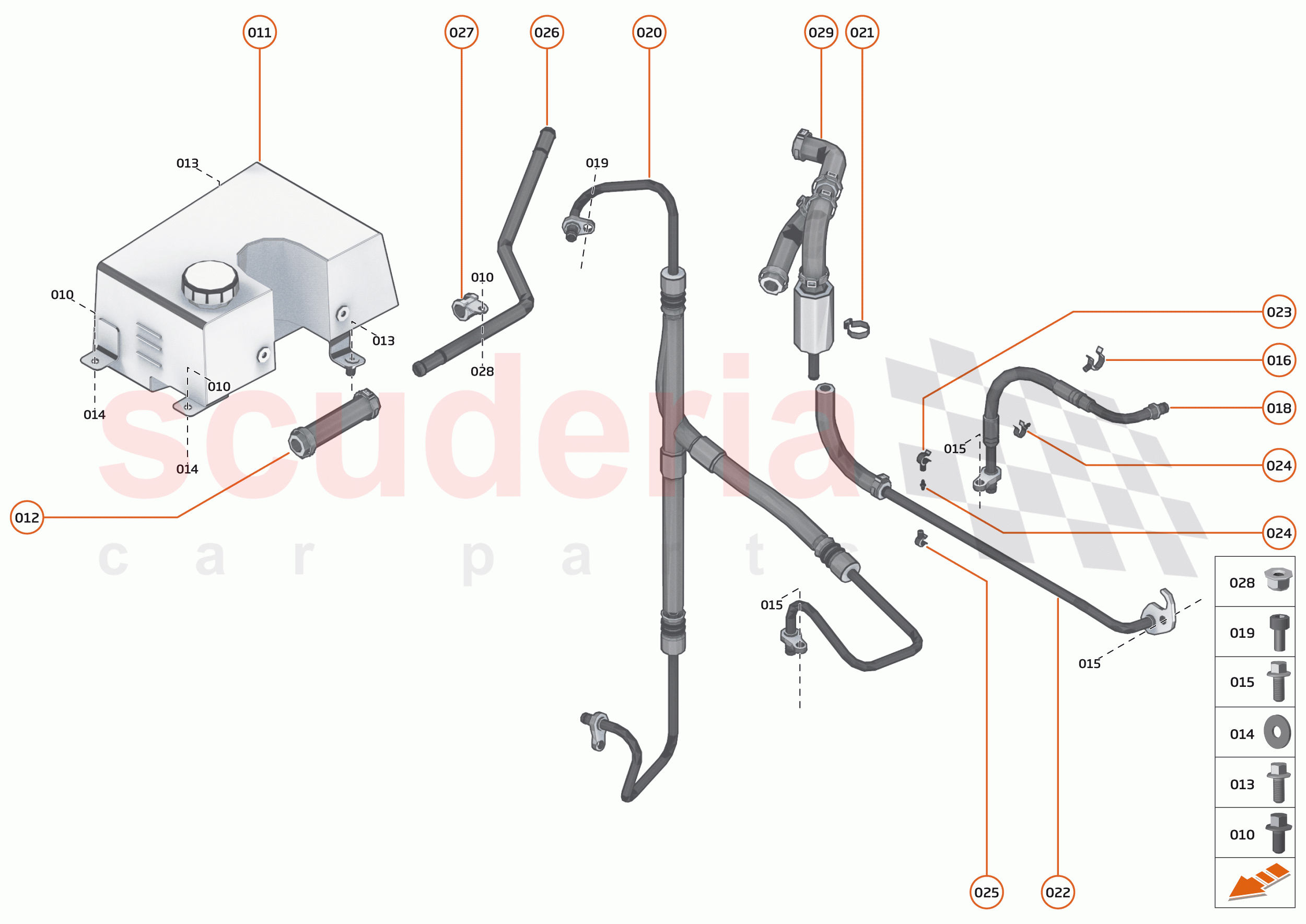

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15DA053CP	RESERVOIR - PAS FLUID - CENTRE	$1,145.50	To Order

Photo	Part No	Description	Price (each)	Stock
	15DA051CP	HOSE - PAS FLUID RESERVOIR	$38.56	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA515	BOLT - HEX - FLANGE - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC118	WASHER - M6X14.4X2.4 - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA002	BOLT - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB032	CLIP - 13-14MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14D0070CP	PIPE ASSY - FEED - AMPUTO STEERING RACK - RHD	$165.00	To Order
	14D0003CP	PIPE ASSY - FEED - AMPUTO STEERING RACK - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA540	SCREW - CAP HEAD - M8X1.25X20-10.9-72	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15DA024CP	HOSE - PAS PUMP TO APMU - LHD	$327.92	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB110	OETIKER CLIP - 19.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15DA042CP	HOSE - PAS RESERVOIR - RHD	$81.97	To Order
	13DA004CP	HOSE - FILTER TO STEERING RACK - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB007	CLIP - 18-20MM - FEMALE	Enquire	To Order
	00RB046	CLIP - 8-9MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB023	CLIP SPACER - 1MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB024	CLIP - 6.0-6.5MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15DA010CP	HOSE - PAS RESERVOIR - LHD	$427.12	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB191	P-CLIP - 14X15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15DA052CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	$466.77	To Order
	15DA050CP	HOSE - RESERVOIR TO - FILTER PUMP - LHD	$485.38	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	3	Enquire
011	15DA053CP	RESERVOIR - PAS FLUID - CENTRE	15DA053CP RESERVOIR - PAS FLUID - CENTRE	$1,145.50	1
012	15DA051CP	HOSE - PAS FLUID RESERVOIR	15DA051CP HOSE - PAS FLUID RESERVOIR	$38.56	1
013	00RA515	BOLT - HEX - FLANGE - M6X16	00RA515 BOLT - HEX - FLANGE - M6X16	-	2	Enquire
014	00RC118	WASHER - M6X14.4X2.4 - BLACK	00RC118 WASHER - M6X14.4X2.4 - BLACK	-	2	Enquire
015	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX	-	3	Enquire
016	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE	-	1	Enquire
017	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE	-	1	Enquire
018	14D0070CP	PIPE ASSY - FEED - AMPUTO STEERING RACK - RHD	14D0070CP PIPE ASSY - FEED - AMPUTO STEERING RACK - RHD	$165.00	1
018	14D0003CP	PIPE ASSY - FEED - AMPUTO STEERING RACK - LHD	14D0003CP PIPE ASSY - FEED - AMPUTO STEERING RACK - LHD	-	1	Enquire
019	00RA540	SCREW - CAP HEAD - M8X1.25X20-10.9-72	00RA540 SCREW - CAP HEAD - M8X1.25X20-10.9-72	-	1	Enquire
020	15DA024CP	HOSE - PAS PUMP TO APMU - LHD	15DA024CP HOSE - PAS PUMP TO APMU - LHD	$327.92	1
021	00RB110	OETIKER CLIP - 19.2	00RB110 OETIKER CLIP - 19.2	-	1	Enquire
022	15DA042CP	HOSE - PAS RESERVOIR - RHD	15DA042CP HOSE - PAS RESERVOIR - RHD	$81.97	1
022	13DA004CP	HOSE - FILTER TO STEERING RACK - LHD	13DA004CP HOSE - FILTER TO STEERING RACK - LHD Superseded parts: 13D0086CP;	-	1	Enquire
023	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE	-	1	Enquire
023	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE	-	1	Enquire
024	00RB023	CLIP SPACER - 1MM - MALE	00RB023 CLIP SPACER - 1MM - MALE	-	1	Enquire
025	00RB024	CLIP - 6.0-6.5MM - FEMALE	00RB024 CLIP - 6.0-6.5MM - FEMALE	-	1	Enquire
026	15DA010CP	HOSE - PAS RESERVOIR - LHD	15DA010CP HOSE - PAS RESERVOIR - LHD	$427.12	1
027	00RB191	P-CLIP - 14X15	00RB191 P-CLIP - 14X15	-	1	Enquire
028	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	1	Enquire
029	15DA052CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	15DA052CP HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	$466.77	1
029	15DA050CP	HOSE - RESERVOIR TO - FILTER PUMP - LHD	15DA050CP HOSE - RESERVOIR TO - FILTER PUMP - LHD	$485.38	1
