22 - Engine - 22.7 - Breather Assembly And Fuel Purge

McLaren GT

Find Your Part

McLaren GT - 22 - ENGINE - 22.7 - BREATHER ASSEMBLY AND FUEL PURGE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
00RB139 STEPLESS EAR CLAMP - 34.6-706DR Enquire To Order
Photo Part No Description Price (each) Stock
11F2029CP CLIP - RAYMOND - 2WAY - 13493 $7.71 To Order
Photo Part No Description Price (each) Stock
11F1681CP BRACKET - PCV - INC CLIPS $29.12 To Order
Photo Part No Description Price (each) Stock
12F0710CP CLIP - ONE WAY - RAYMOND $24.27 To Order
Photo Part No Description Price (each) Stock
11F1856CP OETIKER CLIP - 15.3-18.5 $9.30 To Order
Photo Part No Description Price (each) Stock
11F2030CP BRACKET - CAM COVER - LH - CCV - VAC $26.85 To Order
Photo Part No Description Price (each) Stock
11F1933CP CLIP - RAYMOND - 014434 $4.63 To Order
Photo Part No Description Price (each) Stock
14F0088CP BRACKET CLIP - M8 $24.11 To Order
Photo Part No Description Price (each) Stock
14F0589CP FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE $233.13 To Order
Photo Part No Description Price (each) Stock
14F0676CP CLIP - RAYMOND - 201151 - 10MM Enquire To Order
Photo Part No Description Price (each) Stock
14F0647CP BRACKET - CAM COVER - RH - CCV - VAC Enquire To Order
Photo Part No Description Price (each) Stock
14F0398CP CLIP - RAYMOND - 18900 - 12MM $11.84 To Order
Photo Part No Description Price (each) Stock
14F0643CP CLAMP - STEPLESS EAR - 31.5 DIA $34.00 To Order
View All

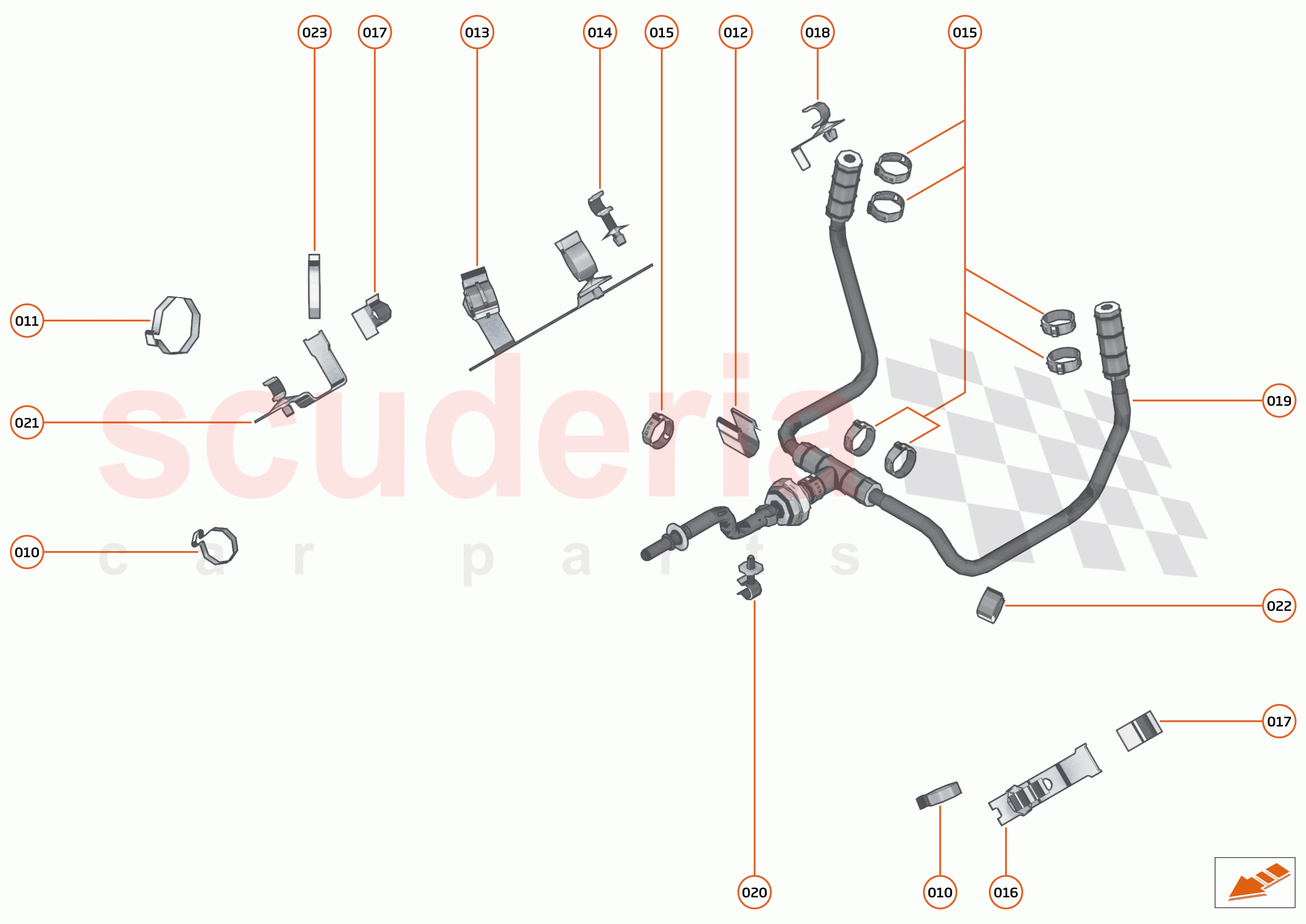

22 - ENGINE - 22.7 - BREATHER ASSEMBLY AND FUEL PURGE of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RB094
OETIKER CLIP - 21.0 		- 2 Enquire
011 00RB139
STEPLESS EAR CLAMP - 34.6-706DR 		- 1 Enquire
012 11F2029CP
CLIP - RAYMOND - 2WAY - 13493 		$7.71 1
013 11F1681CP
BRACKET - PCV - INC CLIPS 		$29.12 1
014 12F0710CP
CLIP - ONE WAY - RAYMOND 		$24.27 1
015 11F1856CP
OETIKER CLIP - 15.3-18.5 		$9.30 3
016 11F2030CP
BRACKET - CAM COVER - LH - CCV - VAC 		$26.85 3
017 11F1933CP
CLIP - RAYMOND - 014434 		$4.63 1
018 14F0088CP
BRACKET CLIP - M8 		$24.11 1
019 14F0589CP
FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE 		$233.13 1
020 14F0676CP
CLIP - RAYMOND - 201151 - 10MM 		- 1 Enquire
021 14F0647CP
BRACKET - CAM COVER - RH - CCV - VAC 		- 1 Enquire
022 14F0398CP
CLIP - RAYMOND - 18900 - 12MM 		$11.84 1
023 14F0643CP
CLAMP - STEPLESS EAR - 31.5 DIA 		$34.00 1
024 22FA300GP
ASSY - CCV VALVES AND HOSES 		- 1 Enquire
025 22FA311GP
ASSY-PRE COMPR DUCT - PRE COMP CCV PIPE-LH - MY22 ONWARDS 		- 1 Enquire
026 22FA312GP
ASSY-PRE COMPR DUCT - PRE COMP CCV PIPE-RH - MY22 ONWARDS 		- 1 Enquire
