McLaren GT - 22 - ENGINE - 22.10 - ENGINE WATER PUMP AND WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB093 OETIKER CLIP - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
11F1863CP OETIKER CLIP - 14.1-16.6 $7.91 To Order
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $9.66 To Order
Photo Part No Description Price (each) Stock
11F1782CP BOLT - M6X10 - HEX $14.00 To Order
Photo Part No Description Price (each) Stock
11F1783CP BOLT - M8X30 - HEX $13.51 To Order
Photo Part No Description Price (each) Stock
11F1784CP BOLT - M6X80 - HEX $19.31 To Order
Photo Part No Description Price (each) Stock
11F1791CP SCREW - HEX HEAD - FLANGE - M6X10 $8.28 To Order
Photo Part No Description Price (each) Stock
11F1859CP OETIKER CLAMP - 24.1MM $12.54 To Order
Photo Part No Description Price (each) Stock
11F1955CP SEAL - O-RING - 23.2 $5.40 To Order
Photo Part No Description Price (each) Stock
11F1954CP O-RING - 16-0X2-0 $5.40 To Order
Photo Part No Description Price (each) Stock
11F2418CP SENSOR - HEAD TEMPERATURE $91.22 To Order
Photo Part No Description Price (each) Stock
11F2433CP COVER - WATER PUMP - ENGINE $24.15 To Order
Photo Part No Description Price (each) Stock
11F2434CP GASKET SERVICE COVER WATER PUMP $15.43 IN STOCK
Photo Part No Description Price (each) Stock
13F0866CP COOLANT HOSE - FEED - CLUTCH COOLER $124.83 To Order
Photo Part No Description Price (each) Stock
11F2412CP P-CLIP 23MM - CLUTCH COOLER HOSE - ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
13F0902CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH $67.63 To Order
Photo Part No Description Price (each) Stock
13F0903CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH $57.96 To Order
Photo Part No Description Price (each) Stock
13F0904CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH $62.80 To Order
Photo Part No Description Price (each) Stock
13FA050CP THERMOSTAT AND HOUSING-ENGINE $251.29 To Order
Photo Part No Description Price (each) Stock
14F0411CP BRACKET - DEGAS HOSE $24.27 To Order
Photo Part No Description Price (each) Stock
14F0414CP PLUG IN CLIP - RAYMOND - 15MM $6.75 To Order
Photo Part No Description Price (each) Stock
14F0572CP BRACKET - DEGAS HOSE Enquire To Order
Photo Part No Description Price (each) Stock
14F0573CP ASSY - HOSE - COOLANT DEGAS - ENGINE $135.30 To Order
Photo Part No Description Price (each) Stock
11F1674CP T PIECE - DEGAS $16.41 To Order
Photo Part No Description Price (each) Stock
14F0654CP TOP HOSE - ENGINE RADIATOR - LH $144.97 To Order
Photo Part No Description Price (each) Stock
14FA394CP TOP HOSE - ENGINE RADIATOR - RH $144.97 To Order
Photo Part No Description Price (each) Stock
00RB143 CLAMP - 25.6-706R Enquire To Order
Photo Part No Description Price (each) Stock
00RB204 CLAMP - SPRING BAND - 27X12 Enquire To Order
Photo Part No Description Price (each) Stock
14F0636CP ASSY - HOSE - COOLANT DEGAS - VEHICLE $67.63 To Order
Photo Part No Description Price (each) Stock
14F0638CP HOSE - DEGAS Enquire To Order
Photo Part No Description Price (each) Stock
28FA063CP WATER PUMP $1,632.49 To Order
View All

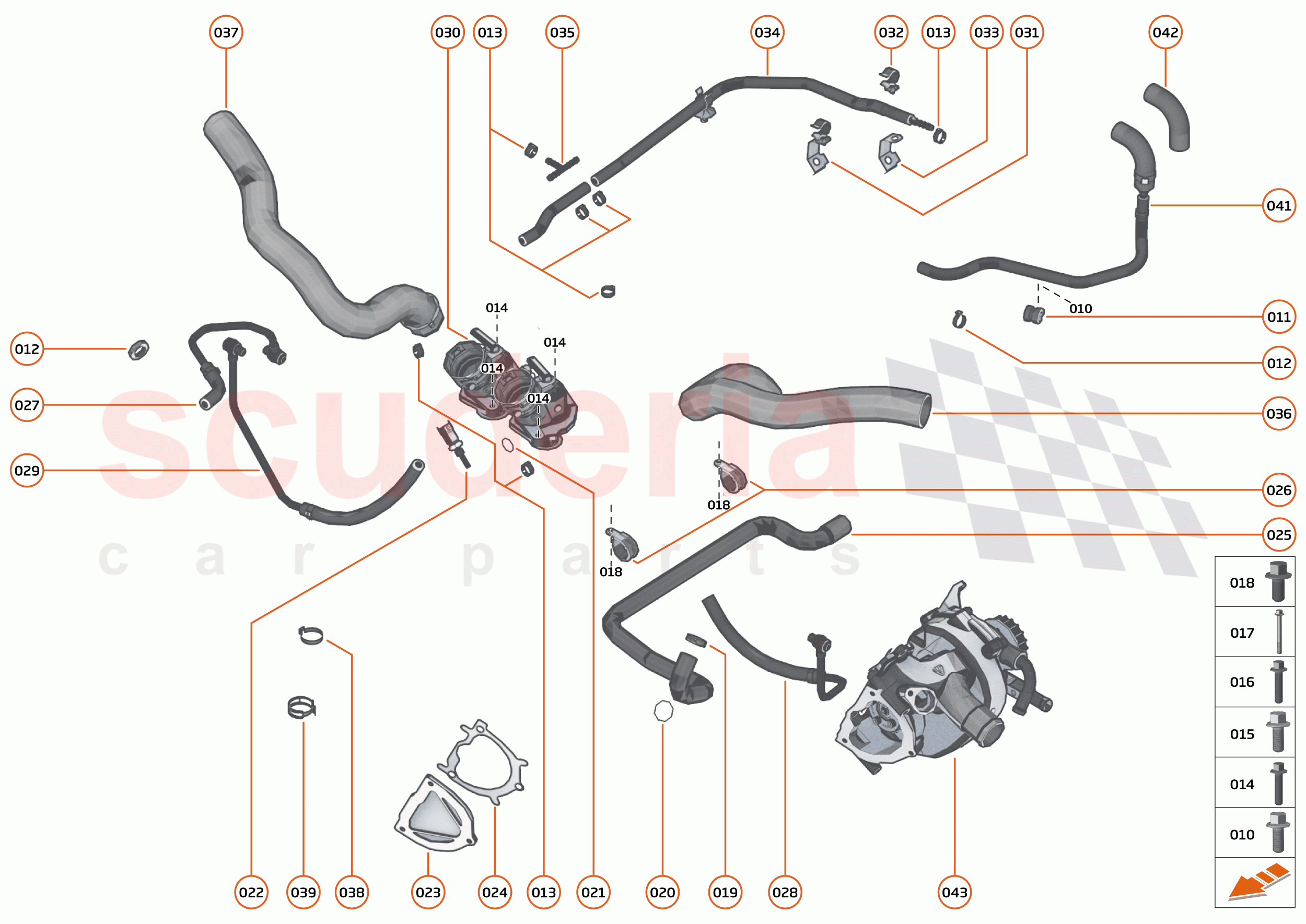

22 - ENGINE - 22.10 - ENGINE WATER PUMP AND WATER CIRCUIT of McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA313
SCREW - M6X16 - HEX - SILVER 		- 3 Enquire
011 00RB005
P CLIP - DIA 16 		- 1 Enquire
012 00RB093
OETIKER CLIP - 16.6 		- 1 Enquire
013 11F1863CP
OETIKER CLIP - 14.1-16.6 		$7.91 1
014 11F1776CP
BOLT - M6X30 - HEX 		$9.66 4
015 11F1782CP
BOLT - M6X10 - HEX 		$14.00 2
016 11F1783CP
BOLT - M8X30 - HEX 		$13.51 4
017 11F1784CP
BOLT - M6X80 - HEX 		$19.31 4
018 11F1791CP
SCREW - HEX HEAD - FLANGE - M6X10 		$8.28 2
019 11F1859CP
OETIKER CLAMP - 24.1MM 		$12.54 1
020 11F1955CP
SEAL - O-RING - 23.2 		$5.40 1
021 11F1954CP
O-RING - 16-0X2-0 		$5.40 1
022 11F2418CP
SENSOR - HEAD TEMPERATURE 		$91.22 1
023 11F2433CP
COVER - WATER PUMP - ENGINE 		$24.15 1
024 11F2434CP
GASKET SERVICE COVER WATER PUMP
IN STOCK 		$15.43 1
025 13F0866CP
COOLANT HOSE - FEED - CLUTCH COOLER 		$124.83 1
026 11F2412CP
P-CLIP 23MM - CLUTCH COOLER HOSE - ENGINE 		- 2 Enquire
027 13F0902CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH 		$67.63 1
028 13F0903CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH 		$57.96 1
029 13F0904CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH 		$62.80 1
030 13FA050CP
THERMOSTAT AND HOUSING-ENGINE 		$251.29 2
031 14F0411CP
BRACKET - DEGAS HOSE 		$24.27 1
032 14F0414CP
PLUG IN CLIP - RAYMOND - 15MM 		$6.75 1
033 14F0572CP
BRACKET - DEGAS HOSE 		- 1 Enquire
034 14F0573CP
ASSY - HOSE - COOLANT DEGAS - ENGINE 		$135.30 1
035 11F1674CP
T PIECE - DEGAS 		$16.41 1
036 14F0654CP
TOP HOSE - ENGINE RADIATOR - LH 		$144.97 1
037 14FA394CP
TOP HOSE - ENGINE RADIATOR - RH 		$144.97 1
038 00RB143
CLAMP - 25.6-706R 		- 1 Enquire
039 00RB204
CLAMP - SPRING BAND - 27X12 		- 1 Enquire
040 00RX003
BOLT - M6X1X12 - HEX 		- 2 Enquire
041 14F0636CP
ASSY - HOSE - COOLANT DEGAS - VEHICLE 		$67.63 1
042 14F0638CP
HOSE - DEGAS 		- 1 Enquire
043 28FA063CP
WATER PUMP 		$1,632.49 1
