Name: 22 - ENGINE - 22.1 - CYLINDER HEAD & CAM PHASERS
Rating: 5.0 (1 reviews)

22 - ENGINE - 22.1 - CYLINDER HEAD & CAM PHASERS of McLaren McLaren GT

View All

McLaren GT - 22 - ENGINE - 22.1 - CYLINDER HEAD & CAM PHASERS

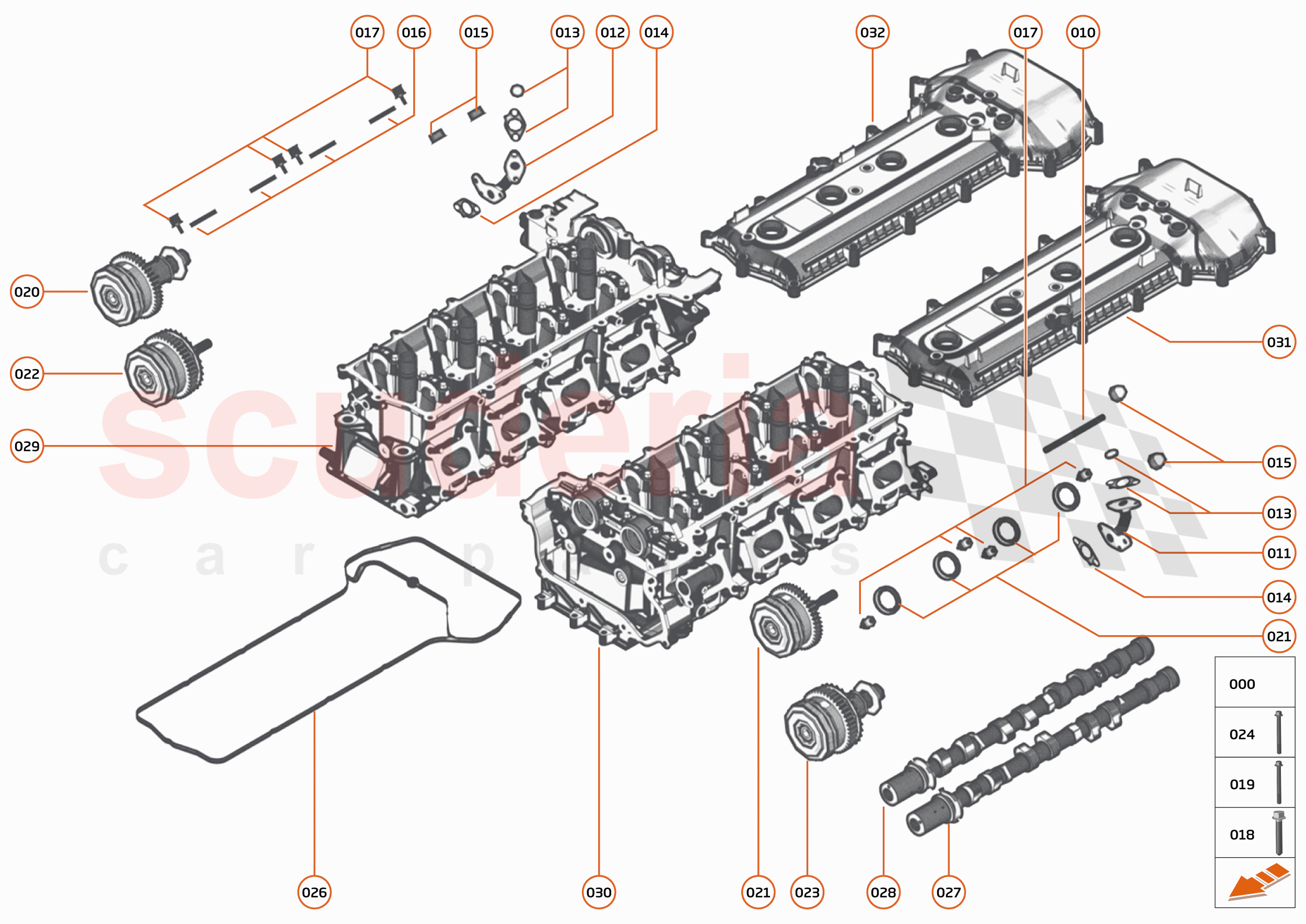

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14FA229CP	HEADGASKET KIT-INC BOLTS AND CAPS-LH	$231.30	To Order
	14FA230CP	HEADGASKET KIT-INC BOLTS AND CAPS-RH	$231.30	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0453CP	STUD - TRANSMISSION - 108MM	$183.57	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0591CP	PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - LH	$125.28	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0590CP	PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - RH	$125.28	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0360CP	SECONDARY AIR VALVE - ENGINE - INC GASKET	$327.69	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1970CP	GASKET - SECONDARY AIR - INJECTION PIPE TO ENGINE	$14.44	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0812CP	CAP - HEAD BOLT	$7.70	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2500CP	GASKET - SPARK PLUG TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2461CP	AV MOUNT - IGNITION COIL	$7.45	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1777CP	BOLT - M6X40 - HEX	$4.41	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1685CP	BOLT - CYLINDER HEAD INC. WASHER	$10.59	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0347CP	VCT - EXHAUST - RH	$520.49	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0345CP	VCT - INTAKE - LH	$520.49	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0343CP	VCT - INTAKE - RH	$616.88	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0341CP	VCT - EXHAUST - LH	$616.88	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1776CP	BOLT - M6X30 - HEX	$9.63	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA259CP	SEAL CAM COVER	$231.30	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1512CP	CAMSHAFT-EXHAUST-LH	$459.67	To Order
	11F1513CP	CAMSHAFT-EXHAUST-RH	$459.67	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1123RP	CAMSHAFT-INLET LH	$440.51	To Order
	11F1166RP	CAMSHAFT-INLET RH	$478.82	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0797CP	CYLINDER HEAD ASSY MC-XF-RH	$7,239.93	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0798CP	CYLINDER HEAD ASSY MC-XF-LH	$7,239.93	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA262CP	ASSY CAM COVER LH	$289.14	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA263CP	ASSY CAM COVER RH	$289.14	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	14FA229CP	HEADGASKET KIT-INC BOLTS AND CAPS-LH	14FA229CP HEADGASKET KIT-INC BOLTS AND CAPS-LH	$231.30	1
000	14FA230CP	HEADGASKET KIT-INC BOLTS AND CAPS-RH	14FA230CP HEADGASKET KIT-INC BOLTS AND CAPS-RH	$231.30	1
010	14F0453CP	STUD - TRANSMISSION - 108MM	14F0453CP STUD - TRANSMISSION - 108MM	$183.57	1
011	13F0591CP	PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - LH	13F0591CP PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - LH	$125.28	1
012	13F0590CP	PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - RH	13F0590CP PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - RH	$125.28	1
013	13F0360CP	SECONDARY AIR VALVE - ENGINE - INC GASKET	13F0360CP SECONDARY AIR VALVE - ENGINE - INC GASKET	$327.69	2
014	11F1970CP	GASKET - SECONDARY AIR - INJECTION PIPE TO ENGINE	11F1970CP GASKET - SECONDARY AIR - INJECTION PIPE TO ENGINE	$14.44	2
015	13F0812CP	CAP - HEAD BOLT	13F0812CP CAP - HEAD BOLT	$7.70	4
016	11F2500CP	GASKET - SPARK PLUG TUBE	11F2500CP GASKET - SPARK PLUG TUBE	-	4	Enquire
017	11F2461CP	AV MOUNT - IGNITION COIL	11F2461CP AV MOUNT - IGNITION COIL	$7.45	8
018	11F1777CP	BOLT - M6X40 - HEX	11F1777CP BOLT - M6X40 - HEX	$4.41	31
019	11F1685CP	BOLT - CYLINDER HEAD INC. WASHER	11F1685CP BOLT - CYLINDER HEAD INC. WASHER	$10.59	20
020	13F0347CP	VCT - EXHAUST - RH	13F0347CP VCT - EXHAUST - RH	$520.49	1
021	13F0345CP	VCT - INTAKE - LH	13F0345CP VCT - INTAKE - LH	$520.49	1
022	13F0343CP	VCT - INTAKE - RH	13F0343CP VCT - INTAKE - RH	$616.88	1
023	13F0341CP	VCT - EXHAUST - LH	13F0341CP VCT - EXHAUST - LH	$616.88	1
024	11F1776CP	BOLT - M6X30 - HEX	11F1776CP BOLT - M6X30 - HEX	$9.63	2
025	11F1792CP	BOLT - M6X16 - ENGINE	11F1792CP BOLT - M6X16 - ENGINE	$12.51	4
026	14FA259CP	SEAL CAM COVER	14FA259CP SEAL CAM COVER	$231.30	1
027	11F1512CP	CAMSHAFT-EXHAUST-LH	11F1512CP CAMSHAFT-EXHAUST-LH	$459.67	1
027	11F1513CP	CAMSHAFT-EXHAUST-RH	11F1513CP CAMSHAFT-EXHAUST-RH	$459.67	1
028	11F1123RP	CAMSHAFT-INLET LH	11F1123RP CAMSHAFT-INLET LH	$440.51	1
028	11F1166RP	CAMSHAFT-INLET RH	11F1166RP CAMSHAFT-INLET RH	$478.82	1
029	14F0797CP	CYLINDER HEAD ASSY MC-XF-RH	14F0797CP CYLINDER HEAD ASSY MC-XF-RH	$7,239.93	1
030	14F0798CP	CYLINDER HEAD ASSY MC-XF-LH	14F0798CP CYLINDER HEAD ASSY MC-XF-LH	$7,239.93	1
031	14FA262CP	ASSY CAM COVER LH	14FA262CP ASSY CAM COVER LH	$289.14	1
032	14FA263CP	ASSY CAM COVER RH	14FA263CP ASSY CAM COVER RH	$289.14	1

22 - Engine - 22.1 - Cylinder Head & Cam Phasers

McLaren GT

McLaren GT - 22 - ENGINE - 22.1 - CYLINDER HEAD & CAM PHASERS

Add to Shopping Cart
