McLaren Artura - 31 - HVAC SYSTEM - 31.1 - HVAC AND INLET UNITS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16LA189CP ASSY-HVAC WATER SEPARATOR $145.94 To Order
Photo Part No Description Price (each) Stock
16LA192CP ASSY-HVAC TRANSITION DUCT $68.76 To Order
Photo Part No Description Price (each) Stock
16LA195CP ASSY-HVAC FILTER HOUSING $113.11 To Order
Photo Part No Description Price (each) Stock
11M1353CP RETAINING CLIP - A24IENT AIR T $0.76 To Order
Photo Part No Description Price (each) Stock
11M0426CP Sensor - Exterior Temperature $136.21 To Order
Photo Part No Description Price (each) Stock
16LA359CP HVAC FILTER-HIGH - ANTI - ALLERGENS $68.09 To Order
16LA358CP HVAC FILTER-LOW - BASE $82.68 To Order
Photo Part No Description Price (each) Stock
16LA343CP ASSY-HVAC WATER SEPARATOR - DRAINAGE $16.52 To Order
Photo Part No Description Price (each) Stock
16LA682CP ASSY-HVAC UNIT $3,964.13 To Order
16LA709CP ASSY-HVAC UNIT $3,854.83 To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RB007 CLIP - 18-20MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB066 SWIVEL CLIP - 25-27MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB008 CLIP - 18-20MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RA073 SCREW - M6X30 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA280 BOLT - HEX HEAD - 24X45 8.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC017 WASHER - M5X15X1.2 Enquire To Order
Photo Part No Description Price (each) Stock
00RA708 SCR-BTN HD-TX-FL-M2X0.4X8 - SS-00 Enquire To Order
Photo Part No Description Price (each) Stock
00RA149 Torx Screw-Washer 4.2x13 Enquire To Order
Photo Part No Description Price (each) Stock
00RC047 Washer - OD12.7xID4.7x1.6 Enquire To Order
Photo Part No Description Price (each) Stock
16LA405CP O RING-004104 $0.39 To Order
16LA406CP O RING-004105 Enquire To Order
Photo Part No Description Price (each) Stock
16LA409CP HVAC LIN ACTUATOR-1000980632 $71.63 To Order
Photo Part No Description Price (each) Stock
16LA410CP HVAC EVAP COIL-PARLLEL FLOW-1001706788 $238.88 To Order
Photo Part No Description Price (each) Stock
16LA411CP HVAC WIRE HARNESS-1001754253 $86.38 To Order
Photo Part No Description Price (each) Stock
16LA421CP HVAC DRAIN NIPPLE-1002185683 $1.18 To Order
View All

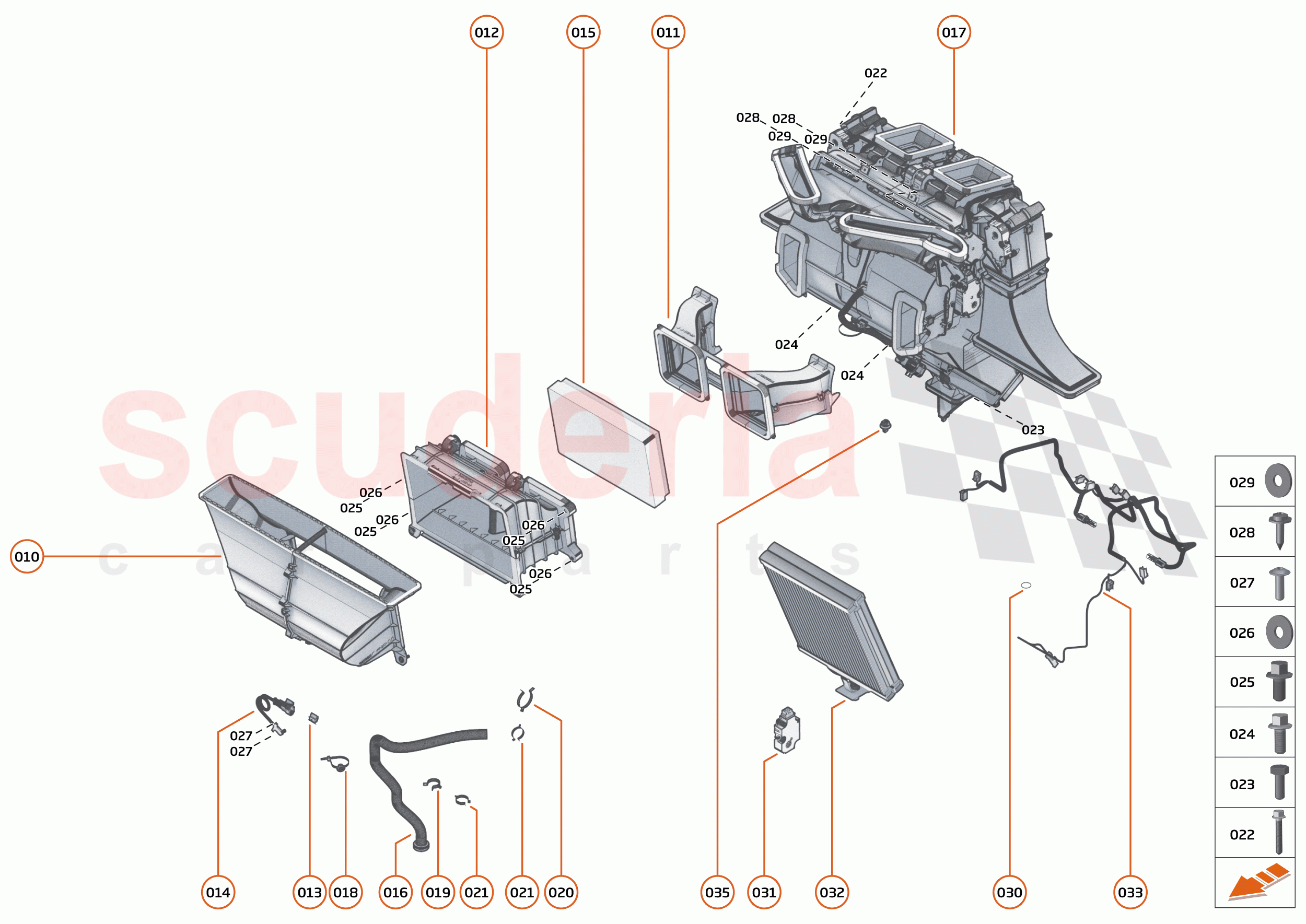

31 - HVAC SYSTEM - 31.1 - HVAC AND INLET UNITS of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RB110
OETIKER CLIP - 19.2 		- 1 Enquire
010 16LA189CP
ASSY-HVAC WATER SEPARATOR 		$145.94 1
011 16LA192CP
ASSY-HVAC TRANSITION DUCT 		$68.76 1
012 16LA195CP
ASSY-HVAC FILTER HOUSING 		$113.11 1
013 11M1353CP
RETAINING CLIP - A24IENT AIR T 		$0.76 1
014 11M0426CP
Sensor - Exterior Temperature 		$136.21 1
015 16LA359CP
HVAC FILTER-HIGH - ANTI - ALLERGENS 		$68.09 1
015 16LA358CP
HVAC FILTER-LOW - BASE 		$82.68 1
016 16LA343CP
ASSY-HVAC WATER SEPARATOR - DRAINAGE 		$16.52 1
017 16LA682CP
ASSY-HVAC UNIT 		$3,964.13 1
017 16LA709CP
ASSY-HVAC UNIT 		$3,854.83 1
018 00RL001
CABLE TIE - FIRTREE BASE 		- 1 Enquire
019 00RB007
CLIP - 18-20MM - FEMALE 		- 1 Enquire
020 00RB066
SWIVEL CLIP - 25-27MM - FEMALE 		- 1 Enquire
021 00RB008
CLIP - 18-20MM - MALE 		- 2 Enquire
022 00RA073
SCREW - M6X30 - HEX 		- 2 Enquire
023 00RA280
BOLT - HEX HEAD - 24X45 8.8 		- 1 Enquire
024 00RX003
BOLT - M6X1X12 - HEX 		- 2 Enquire
024 00RA556
BOLT - HEX - FLANGED - M6X16 		- 1 Enquire
025 00RA087
SCREW - M5X10 - HEX 		- 4 Enquire
026 00RC017
WASHER - M5X15X1.2 		- 4 Enquire
027 00RA708
SCR-BTN HD-TX-FL-M2X0.4X8 - SS-00 		- 2 Enquire
028 00RA149
Torx Screw-Washer 4.2x13 		- 2 Enquire
029 00RC047
Washer - OD12.7xID4.7x1.6 		- 2 Enquire
030 16LA405CP
O RING-004104 		$0.39 1
030 16LA406CP
O RING-004105 		- 1 Enquire
031 16LA409CP
HVAC LIN ACTUATOR-1000980632 		$71.63 1
032 16LA410CP
HVAC EVAP COIL-PARLLEL FLOW-1001706788 		$238.88 1
033 16LA411CP
HVAC WIRE HARNESS-1001754253 		$86.38 1
034 16LA605CP
WASHER SEAL-SENSOR-EXTER TEMP - 6.5X20X1.5 		$4.40 1
034 00RC043
WASHER - M6XOD25 		- 2 Enquire
035 16LA421CP
HVAC DRAIN NIPPLE-1002185683 		$1.18 1
036 16LA621CP
HVAC UNIT O-RING - 10.82MMX1.78MM THICK 		$0.29 1
037 16LA622CP
HVAC UNIT O-RING - 14MMX1.78MM THICK 		$0.45 1
038 16LA428CP
ASSY-HVAC DEFROST DUCT 		$197.47 1
039 16LA431CP
ASSY-INTERIOR FOOT DUCT LH 		$184.86 1
040 16LA432CP
ASSY-INTERIOR FOOT DUCT RH 		$177.73 1
041 16LA761CP
BRASS TUBE INSERT 8MM X 15 MM 		$7.36 1
