28 - Exhaust - 28.1 - Link Pipe And After-Treatment

McLaren Artura

Find Your Part

McLaren Artura - 28 - EXHAUST - 28.1 - LINK PIPE AND AFTER-TREATMENT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16HA234CP ASSY - LINK PIPE EU LH $7,390.66 To Order
16HA236CP ASSY - LINK PIPE - FED LH Enquire To Order
16HA317CP ASSY - LINK PIPE - FED LH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16HA237CP ASSY - LINK PIPE - FED RH Enquire To Order
16HA235CP ASSY - LINK PIPE EU RH $7,390.66 To Order
16HA316CP ASSY - LINK PIPE RH - NON FED $6,297.82 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16HA261CP LINK PIPE V BAND CLAMP A286 - INCO $145.70 To Order
Photo Part No Description Price (each) Stock
16HA239CP LINK PIPE BRACKET LH $91.17 To Order
Photo Part No Description Price (each) Stock
16HA240CP LINK PIPE BRACKET RH $91.17 To Order
Photo Part No Description Price (each) Stock
16HA241CP LINK PIPE BRACKET WASHER $38.84 To Order
View All

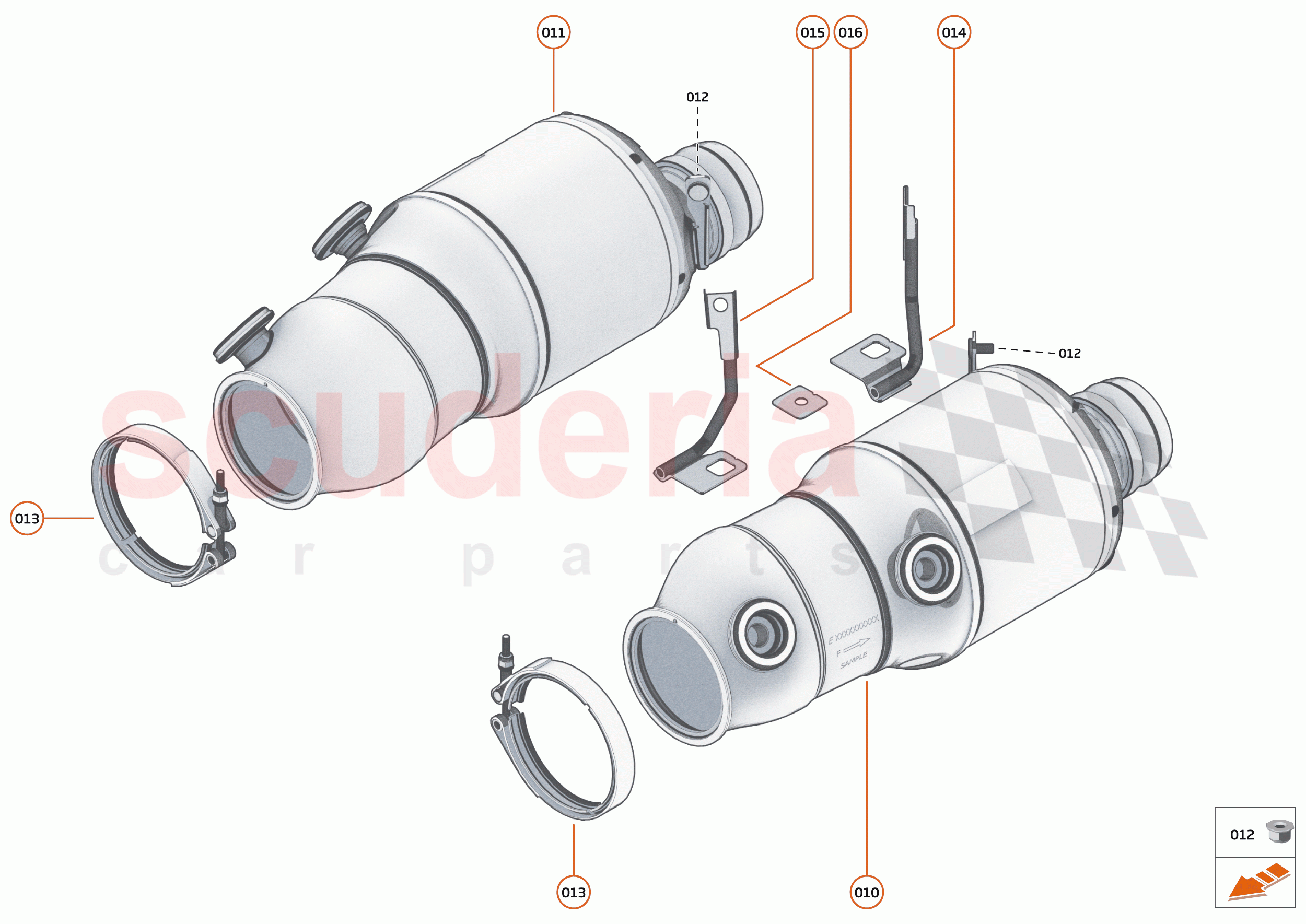

28 - EXHAUST - 28.1 - LINK PIPE AND AFTER-TREATMENT of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16HA234CP
ASSY - LINK PIPE EU LH 		$7,390.66 1
010 16HA236CP
ASSY - LINK PIPE - FED LH 		- 1 Enquire
010 16HA317CP
ASSY - LINK PIPE - FED LH 		- 1 Enquire
010 16HA315CP
ASSY - LINK PIPE LH - NON FED 		$6,297.82 1
011 16HA237CP
ASSY - LINK PIPE - FED RH 		- 1 Enquire
011 16HA235CP
ASSY - LINK PIPE EU RH 		$7,390.66 1
011 16HA316CP
ASSY - LINK PIPE RH - NON FED 		$6,297.82 1
011 16HA318CP
ASSY - LINK PIPE - FED RH 		- 1 Enquire
012 00RA075
NUT - M8-8 - HEX 		- 2 Enquire
013 16HA261CP
LINK PIPE V BAND CLAMP A286 - INCO 		$145.70 1
014 16HA239CP
LINK PIPE BRACKET LH 		$91.17 1
015 16HA240CP
LINK PIPE BRACKET RH 		$91.17 1
016 16HA241CP
LINK PIPE BRACKET WASHER 		$38.84 1
