McLaren Artura - 29 - FUEL SYSTEM - 29.1 - FUEL TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14KA056CP CONTROLLER - FUEL PUMP $327.92 To Order
Photo Part No Description Price (each) Stock
00RB147 HOSE CLAMP - STEPLESS EAR - 59 DIA Enquire To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
16KA166CP FUEL TANK $4,403.50 To Order
16KA188CP ASSY FUEL TANK $4,912.18 To Order
Photo Part No Description Price (each) Stock
12K0258CP SEAL - RETAINING RING - FUEL PUMP $67.93 To Order
Photo Part No Description Price (each) Stock
14K0079CP FLANGE - FUEL TANK $82.49 To Order
Photo Part No Description Price (each) Stock
14K0087CP PUMP MOUNT - MOULDED $77.14 To Order
Photo Part No Description Price (each) Stock
16K0009CP CHARCOL CANISTER $757.20 To Order
Photo Part No Description Price (each) Stock
16K0018CP HOSE - FUEL - FEED TANK $53.37 To Order
Photo Part No Description Price (each) Stock
16K0019CP HARNESS - FUEL CELL $135.89 To Order
Photo Part No Description Price (each) Stock
16KA087CP PIPE - BREATHER - CANISTER $43.66 To Order
Photo Part No Description Price (each) Stock
16K0017CP HOSE BREATHER - TANK - TO - CANISTER $77.16 To Order
Photo Part No Description Price (each) Stock
16K0010CP ASSY PIPE PURGE TANK $155.31 To Order
Photo Part No Description Price (each) Stock
16K0013CP FUEL CELL - PAD - CENTRE FUEL - TANK $174.72 To Order
Photo Part No Description Price (each) Stock
16K0012CP FUEL CELL - PAD - SEPARATOR $174.72 To Order
Photo Part No Description Price (each) Stock
16K0011CP FUEL CELL - PAD - MCU $174.72 To Order
Photo Part No Description Price (each) Stock
16KA086CP JET PUMP HOSE - FUEL TANK $32.32 To Order
Photo Part No Description Price (each) Stock
14KA020CP ASSY - FUEL TANK - LEVEL SENDER $213.57 To Order
Photo Part No Description Price (each) Stock
14KA113CP ASSY - FUEL PUMP $655.86 To Order
Photo Part No Description Price (each) Stock
14KA018CP FUEL FILTER $366.48 To Order
View All

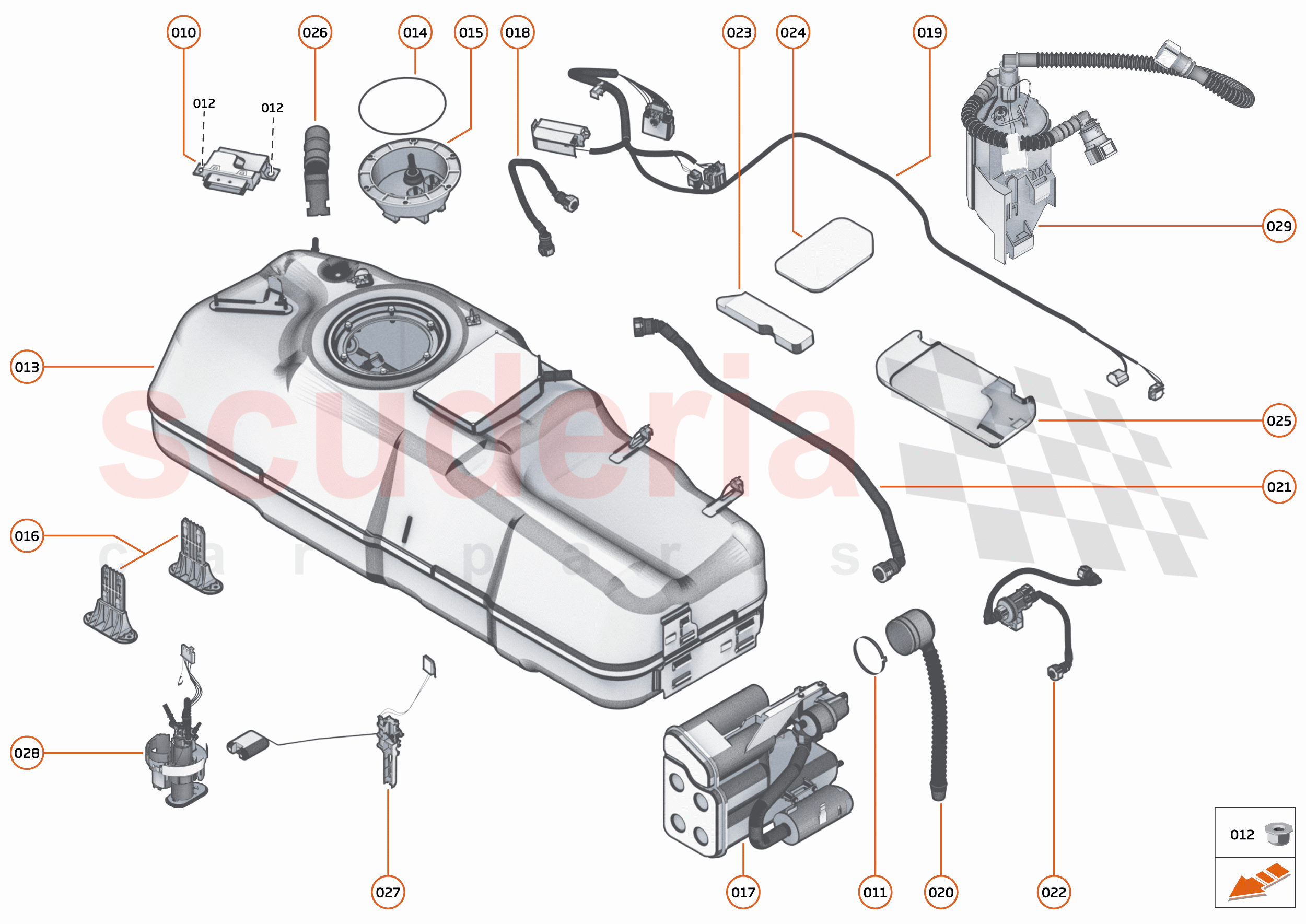

29 - FUEL SYSTEM - 29.1 - FUEL TANK of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14KA056CP
CONTROLLER - FUEL PUMP 		$327.92 1
011 00RB147
HOSE CLAMP - STEPLESS EAR - 59 DIA 		- 1 Enquire
012 00RA055
NUT - M6 - LOCKING - HEX 		- 2 Enquire
013 16KA166CP
FUEL TANK
FUEL TANK; 		$4,403.50 1
013 16KA188CP
ASSY FUEL TANK 		$4,912.18 1
014 12K0258CP
SEAL - RETAINING RING - FUEL PUMP 		$67.93 1
015 14K0079CP
FLANGE - FUEL TANK 		$82.49 1
016 14K0087CP
PUMP MOUNT - MOULDED 		$77.14 2
017 16K0009CP
CHARCOL CANISTER 		$757.20 1
018 16K0018CP
HOSE - FUEL - FEED TANK 		$53.37 1
019 16K0019CP
HARNESS - FUEL CELL 		$135.89 1
020 16KA087CP
PIPE - BREATHER - CANISTER 		$43.66 1
021 16K0017CP
HOSE BREATHER - TANK - TO - CANISTER 		$77.16 1
022 16K0010CP
ASSY PIPE PURGE TANK 		$155.31 1
023 16K0013CP
FUEL CELL - PAD - CENTRE FUEL - TANK 		$174.72 1
024 16K0012CP
FUEL CELL - PAD - SEPARATOR 		$174.72 1
025 16K0011CP
FUEL CELL - PAD - MCU 		$174.72 1
026 16KA086CP
JET PUMP HOSE - FUEL TANK 		$32.32 1
027 14KA020CP
ASSY - FUEL TANK - LEVEL SENDER 		$213.57 1
028 14KA113CP
ASSY - FUEL PUMP 		$655.86 1
029 14KA018CP
FUEL FILTER 		$366.48 1
