7 - Closures - 7.1 - Bonnet Structure

McLaren Artura

Find Your Part

McLaren Artura - 7 - CLOSURES - 7.1 - BONNET STRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
16AE521CP ASSY BONNET $1,412.06 To Order
16AG599CP ASSY BONNET $1,648.68 To Order
Photo Part No Description Price (each) Stock
00RA694 BLT-HX HD-FL-M6X1X40-8.8-78 Enquire To Order
00RA410 BOLT - BUTTON - FLANGE - M6X40 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
16AD961CP BONNET WASHER $11.61 To Order
View All

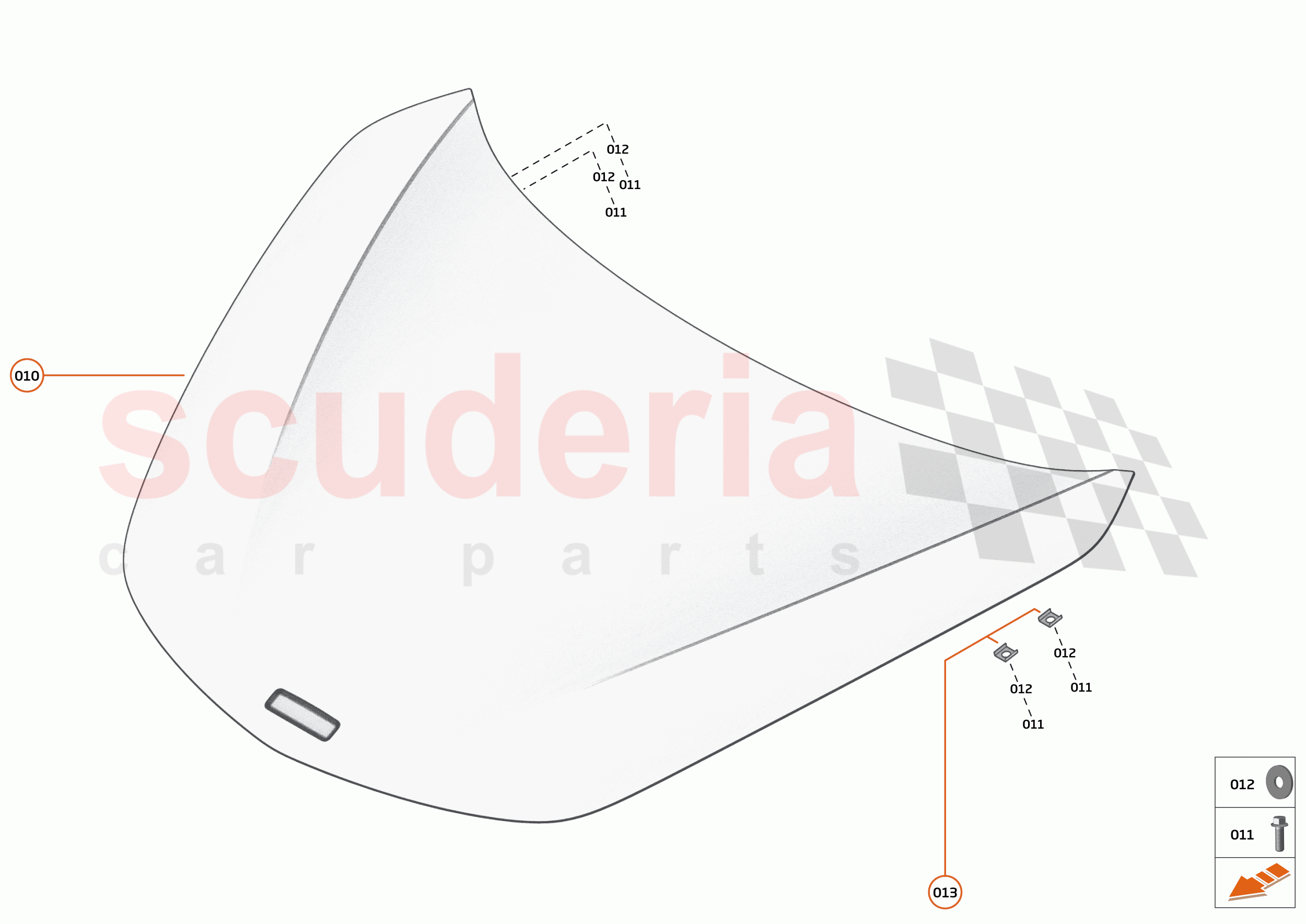

7 - CLOSURES - 7.1 - BONNET STRUCTURE of McLaren McLaren Artura Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 16AE521CP
ASSY BONNET 		$1,412.06 1
010 16AG599CP
ASSY BONNET 		$1,648.68 1
011 00RA694
BLT-HX HD-FL-M6X1X40-8.8-78 		- 4 Enquire
011 00RA410
BOLT - BUTTON - FLANGE - M6X40 		- 4 Enquire
012 00RC064
WASHER - M6X18X1.6 - BLACK 		- 4 Enquire
013 16AD961CP
BONNET WASHER 		$11.61 4
