McLaren Artura - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

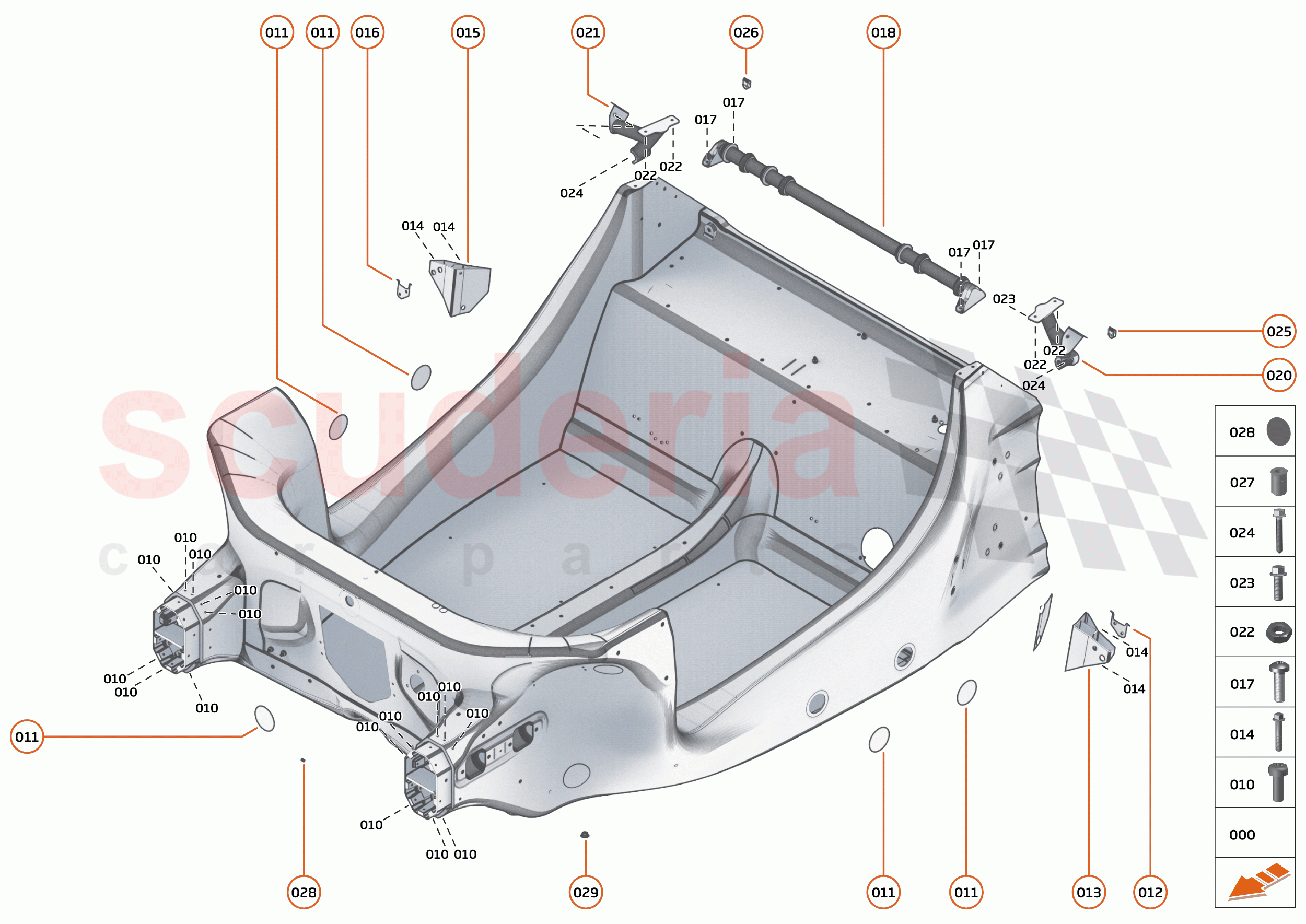

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA071	SCREW - M6X16 - BUTTON	Enquire	To Order
	16AE748CP	NUT PLATE DOOR STRIKER - MOUNTING LH	$27.50	To Order

Photo	Part No	Description	Price (each)	Stock
	16AB713CP	TUB 75MM IP CORE SEAL	$6.38	To Order
	16AF183CP	BRACKET MOUNTING DOOR STRIKER - LH	$82.49	To Order

Photo	Part No	Description	Price (each)	Stock
	16AE748CP	NUT PLATE DOOR STRIKER - MOUNTING LH	$27.50	To Order
	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF183CP	BRACKET MOUNTING DOOR STRIKER - LH	$82.49	To Order
	16AE742CP	ASSY STRIKER TETHER	$66.76	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	Enquire	To Order
	00RA812	BLT-HX HD-FL-M6X1X20-8.8-78 LP - WITH PATCHLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AE739CP	BRACKET MOUNTING DOOR STRIKER - RH	$80.18	To Order
	00RC051	WASHER - M6X4.0MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AF184CP	NUT PLATE DOOR STRIKER - MOUNTING RH	$106.77	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA709	SCR-BTN HD-TX-M8X1.25X40-10.9-	Enquire	To Order
	16AE749CP	BRACKET MOUNTING DOOR STRIKER - RH	$25.88	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA192MP	HARNESS BAR	$3,125.07	To Order
	16AB713CP	TUB 75MM IP CORE SEAL	$6.38	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA140MP	HARNESS BAR-BRACKET-LH	$747.49	To Order
	00RA071	SCREW - M6X16 - BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA141MP	HARNESS BAR-BRACKET-RH	$747.49	To Order
	00RA782	THD-INS-M8X1.0X12-M6X1.0-STL-80	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA051MP	NUT-HEX-PLAIN-M8X1.25-10	$0.95	To Order
	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA485	BOLT - HEX HEAD - FLANGED - M8X25	Enquire	To Order
	11A5736CP	PLUG - TUB DATUM	$6.98	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA666	SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72	Enquire	To Order
	16AB620SP	STRUCTURAL ABSORBER LH - MACHINED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA040MP	ROLL HOOP-CONDUCTIVITY-LINK LH	$145.61	To Order
	16AB621SP	STRUCTURAL ABSORBER RH - MACHINED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AA041MP	ROLL HOOP-CONDUCTIVITY-LINK RH	$145.61	To Order
	16AF810CP	TAPE-FELT 100MM LENGTH - 35MM X 1.8MM	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA702	RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT	Enquire	To Order
	16AD570CP	TUB HOLES FOOT REST FOAM PLUG	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD570CP	TUB HOLES FOOT REST FOAM PLUG	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	11A5736CP	PLUG - TUB DATUM	$6.98	To Order

View All

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren Artura

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	000	00RA666	SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72	00RA666 SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72	-	1		Enquire
	000	00RA485	BOLT - HEX HEAD - FLANGED - M8X25	00RA485 BOLT - HEX HEAD - FLANGED - M8X25	-	1		Enquire
	010	00RA071	SCREW - M6X16 - BUTTON	00RA071 SCREW - M6X16 - BUTTON	-	18		Enquire
	010	16AE748CP	NUT PLATE DOOR STRIKER - MOUNTING LH	16AE748CP NUT PLATE DOOR STRIKER - MOUNTING LH	$27.50	1
	011	16AB713CP	TUB 75MM IP CORE SEAL	16AB713CP TUB 75MM IP CORE SEAL	$6.38	5
	011	16AF183CP	BRACKET MOUNTING DOOR STRIKER - LH	16AF183CP BRACKET MOUNTING DOOR STRIKER - LH	$82.49	1
	012	16AE748CP	NUT PLATE DOOR STRIKER - MOUNTING LH	16AE748CP NUT PLATE DOOR STRIKER - MOUNTING LH	$27.50	1
	012	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	00RA486 BOLT - HEX HEAD - FLANGED - M8X30	-	-		Enquire
	013	16AF183CP	BRACKET MOUNTING DOOR STRIKER - LH	16AF183CP BRACKET MOUNTING DOOR STRIKER - LH	$82.49	1
	013	16AE742CP	ASSY STRIKER TETHER	16AE742CP ASSY STRIKER TETHER	$66.76	-
	014	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	00RA486 BOLT - HEX HEAD - FLANGED - M8X30	-	4		Enquire
	014	00RA812	BLT-HX HD-FL-M6X1X20-8.8-78 LP - WITH PATCHLOCK	00RA812 BLT-HX HD-FL-M6X1X20-8.8-78 LP - WITH PATCHLOCK	-	-		Enquire
	015	16AE739CP	BRACKET MOUNTING DOOR STRIKER - RH	16AE739CP BRACKET MOUNTING DOOR STRIKER - RH	$80.18	1
	015	00RC051	WASHER - M6X4.0MM	00RC051 WASHER - M6X4.0MM	-	-		Enquire
	016	16AF184CP	NUT PLATE DOOR STRIKER - MOUNTING RH	16AF184CP NUT PLATE DOOR STRIKER - MOUNTING RH	$106.77	1
	017	00RA709	SCR-BTN HD-TX-M8X1.25X40-10.9-	00RA709 SCR-BTN HD-TX-M8X1.25X40-10.9-	-	4		Enquire
	017	16AE749CP	BRACKET MOUNTING DOOR STRIKER - RH	16AE749CP BRACKET MOUNTING DOOR STRIKER - RH	$25.88	1
	018	16AA192MP	HARNESS BAR	16AA192MP HARNESS BAR	$3,125.07	1
	018	16AB713CP	TUB 75MM IP CORE SEAL	16AB713CP TUB 75MM IP CORE SEAL	$6.38	5
	019	00RA702	RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT	00RA702 RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT	-	68		Enquire
	020	16AA140MP	HARNESS BAR-BRACKET-LH	16AA140MP HARNESS BAR-BRACKET-LH	$747.49	1
	020	00RA071	SCREW - M6X16 - BUTTON	00RA071 SCREW - M6X16 - BUTTON	-	16		Enquire
	021	16AA141MP	HARNESS BAR-BRACKET-RH	16AA141MP HARNESS BAR-BRACKET-RH	$747.49	1
	021	00RA782	THD-INS-M8X1.0X12-M6X1.0-STL-80	00RA782 THD-INS-M8X1.0X12-M6X1.0-STL-80	-	2		Enquire
	022	16AA051MP	NUT-HEX-PLAIN-M8X1.25-10	16AA051MP NUT-HEX-PLAIN-M8X1.25-10	$0.95	4
	022	11A7484CP	CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	11A7484CP CHILD PART - FOR COMMERCIAL REASONS ONLY - - PERMANENT SEALING TAPE	-	12		Enquire
	023	00RA485	BOLT - HEX HEAD - FLANGED - M8X25	00RA485 BOLT - HEX HEAD - FLANGED - M8X25	-	2		Enquire
	023	11A5736CP	PLUG - TUB DATUM	11A5736CP PLUG - TUB DATUM	$6.98	2
	024	00RA666	SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72	00RA666 SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72	-	2		Enquire
	024	16AB620SP	STRUCTURAL ABSORBER LH - MACHINED	16AB620SP STRUCTURAL ABSORBER LH - MACHINED	-	1		Enquire
	025	14AA040MP	ROLL HOOP-CONDUCTIVITY-LINK LH	14AA040MP ROLL HOOP-CONDUCTIVITY-LINK LH	$145.61	1
	025	16AB621SP	STRUCTURAL ABSORBER RH - MACHINED	16AB621SP STRUCTURAL ABSORBER RH - MACHINED	-	1		Enquire
	026	14AA041MP	ROLL HOOP-CONDUCTIVITY-LINK RH	14AA041MP ROLL HOOP-CONDUCTIVITY-LINK RH	$145.61	1
	026	16AF810CP	TAPE-FELT 100MM LENGTH - 35MM X 1.8MM	16AF810CP TAPE-FELT 100MM LENGTH - 35MM X 1.8MM	$0.57	1
	027	00RA702	RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT	00RA702 RIVNUT-O-PLN-M6X3.0-5.5-SS-NAT	-	63		Enquire
	027	16AD570CP	TUB HOLES FOOT REST FOAM PLUG	16AD570CP TUB HOLES FOOT REST FOAM PLUG	$5.22	1
	028	16AD570CP	TUB HOLES FOOT REST FOAM PLUG	16AD570CP TUB HOLES FOOT REST FOAM PLUG	$5.22	1
	029	11A5736CP	PLUG - TUB DATUM	11A5736CP PLUG - TUB DATUM	$6.98	1
	030	00RA481	BOLT - HEX HEAD - FLANGED - M8X45	00RA481 BOLT - HEX HEAD - FLANGED - M8X45	-	4		Enquire
	031	00RA534	Bolt - M10x85 - Hex	00RA534 Bolt - M10x85 - Hex	-	1		Enquire
	032	11A4791CP	SOP-RIVNUT-M6-0.7-1.5-2330.706	11A4791CP SOP-RIVNUT-M6-0.7-1.5-2330.706	$6.57	1
	032	11A4775CP	Rivnut - M6 - 3.0-4.5 - 2330.706-0045	11A4775CP Rivnut - M6 - 3.0-4.5 - 2330.706-0045	$5.22	1
	032	11A4783CP	SOP-RIVNUT-M6-3.0-5.5-2330-706	11A4783CP SOP-RIVNUT-M6-3.0-5.5-2330-706	$5.22	1
	032	11A4776CP	Rivnut - M5 - 2.0-3.0 - 2330.705-0030	11A4776CP Rivnut - M5 - 2.0-3.0 - 2330.705-0030	$5.22	1
	032	11A4774CP	SOP-RNUT-M6-1.50-3.00-2330-706	11A4774CP SOP-RNUT-M6-1.50-3.00-2330-706	$5.22	1
	032	11A4773CP	SOP-RIVNUT-M5-3.0-4.0-2330-705	11A4773CP SOP-RIVNUT-M5-3.0-4.0-2330-705	$5.04	1
	032	11A4769CP	SOP-RIVETSTUD-M5x15-315-3732-7	11A4769CP SOP-RIVETSTUD-M5x15-315-3732-7	$5.61	1
