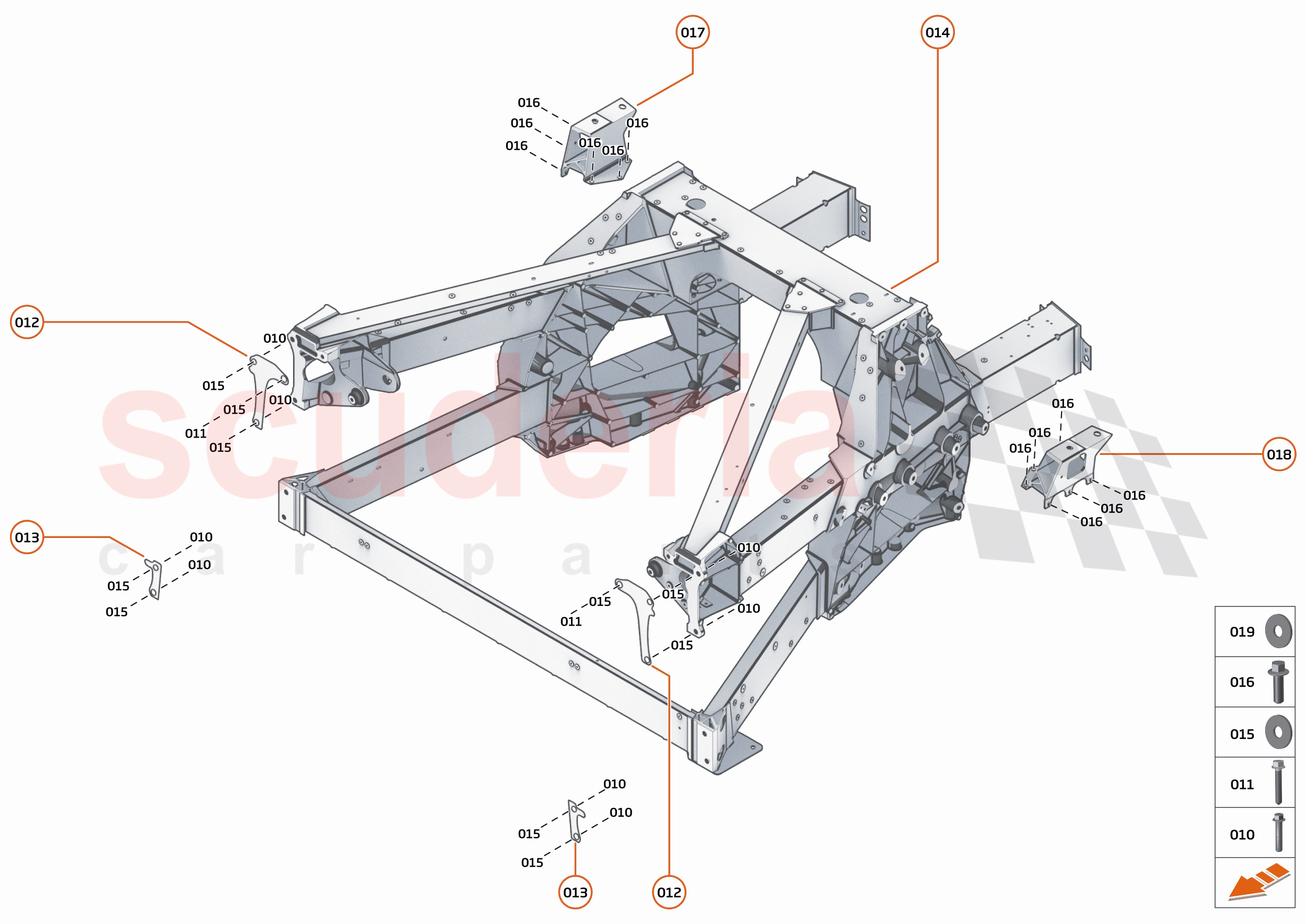

McLaren Artura - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA559	BOLT - HEX HEAD - M10X1.5X40	Enquire	To Order
	00RA665	SCREW-HEX HEAD-FLANGE-M10X50-10.9 -72	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA666	SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16A0528CP	SHIM REAR FRAME TO TUB-UPR - 0.5MM	$9.33	To Order

Photo	Part No	Description	Price (each)	Stock
	16A0531CP	SHIM REAR FRAME TO TUB-UPR - 0.5MM	$6.22	To Order

Photo	Part No	Description	Price (each)	Stock
	16AD644CP	ASSY-RR FRAME	$9,312.73	To Order
	16AF797CP	ASSY-RR FRAME	$9,324.98	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC065	WASHER - M10X21X2.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA568	BOLT - M6X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA713CP	BRACKET MOUNTING RR CLAM RH	$160.66	To Order
	16AF423CP	BRACKET MOUNTING RR CLAM RH	$130.93	To Order

Photo	Part No	Description	Price (each)	Stock
	16AA712CP	BRACKET MOUNTING RR CLAM LH	$151.27	To Order
	16AF422CP	BRACKET MOUNTING RR CLAM LH	$165.00	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC043	WASHER - M6XOD25	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	16AG233CP	ASSY-CRUSH CAN-RR-RH	16AG233CP ASSY-CRUSH CAN-RR-RH	$1,443.36	1
000	16AG232CP	ASSY-CRUSH CAN-RR-LH	16AG232CP ASSY-CRUSH CAN-RR-LH	$1,443.36	1
000	16FC419CP	SPACER TOP HAT FRAME	16FC419CP SPACER TOP HAT FRAME	$48.53	2
000	16FC418CP	SPACER ENGINE LINK	16FC418CP SPACER ENGINE LINK	$48.53	2
000	00RX049	BOLT - M8X60 - HEX	00RX049 BOLT - M8X60 - HEX	-	2	Enquire
000	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX	-	3	Enquire
000	00RA504	NUT-HX-FL-LCK-M8X1.25-STL-85	00RA504 NUT-HX-FL-LCK-M8X1.25-STL-85	-	2	Enquire
010	00RA559	BOLT - HEX HEAD - M10X1.5X40	00RA559 BOLT - HEX HEAD - M10X1.5X40	-	8	Enquire
010	00RA665	SCREW-HEX HEAD-FLANGE-M10X50-10.9 -72	00RA665 SCREW-HEX HEAD-FLANGE-M10X50-10.9 -72	-	8	Enquire
011	00RA666	SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72	00RA666 SCREW-HEX HEAD-FLANGE-M10X75-10.9 -72	-	2	Enquire
012	16A0528CP	SHIM REAR FRAME TO TUB-UPR - 0.5MM	16A0528CP SHIM REAR FRAME TO TUB-UPR - 0.5MM	$9.33	2
013	16A0531CP	SHIM REAR FRAME TO TUB-UPR - 0.5MM	16A0531CP SHIM REAR FRAME TO TUB-UPR - 0.5MM	$6.22	2
014	16AD644CP	ASSY-RR FRAME	16AD644CP ASSY-RR FRAME	$9,312.73	1
014	16AF797CP	ASSY-RR FRAME	16AF797CP ASSY-RR FRAME	$9,324.98	1
015	00RC065	WASHER - M10X21X2.0	00RC065 WASHER - M10X21X2.0	-	10	Enquire
016	00RA568	BOLT - M6X20 - HEX	00RA568 BOLT - M6X20 - HEX	-	12	Enquire
017	16AA713CP	BRACKET MOUNTING RR CLAM RH	16AA713CP BRACKET MOUNTING RR CLAM RH	$160.66	1
017	16AF423CP	BRACKET MOUNTING RR CLAM RH	16AF423CP BRACKET MOUNTING RR CLAM RH	$130.93	1
018	16AA712CP	BRACKET MOUNTING RR CLAM LH	16AA712CP BRACKET MOUNTING RR CLAM LH	$151.27	1
018	16AF422CP	BRACKET MOUNTING RR CLAM LH	16AF422CP BRACKET MOUNTING RR CLAM LH	$165.00	1
019	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25	-	2	Enquire
020	00RA373	SCREW - HEX HEAD - LOCK - M6X25 - 8.8	00RA373 SCREW - HEX HEAD - LOCK - M6X25 - 8.8	-	2	Enquire
