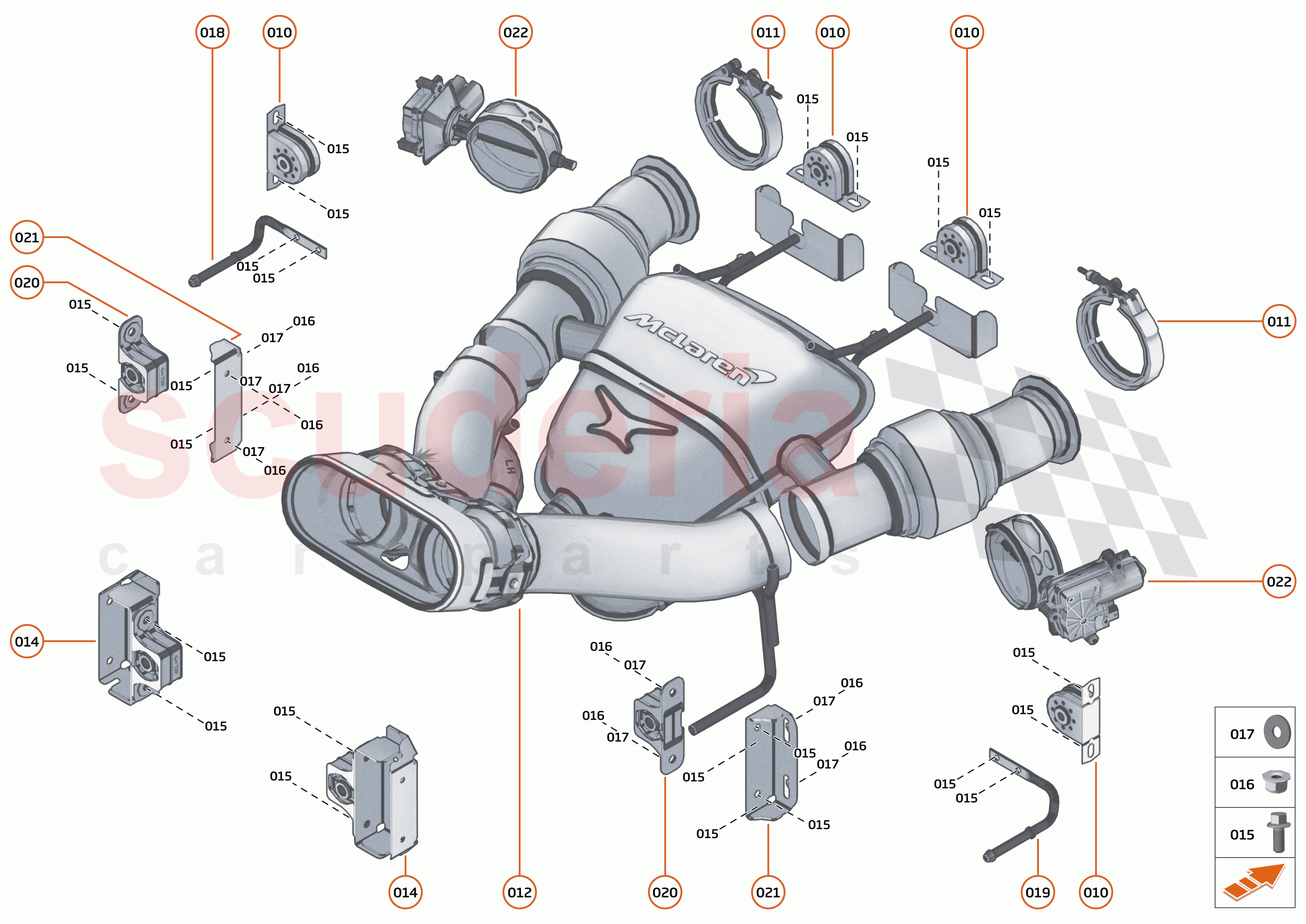

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11H0065CP	ISOLATOR - MUFFLER MOUNTING	$105.96	To Order

Photo	Part No	Description	Price (each)	Stock
	14H0091CP	CLAMP RING - 76MM	$105.96	To Order

Photo	Part No	Description	Price (each)	Stock
	28HA019CP	ASSY-EXHAUST MUFFLER-S-NO VALVE	Enquire	To Order
	28HA015CP	ASSY-EXHAUST MUFFLER-S-VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	28HA028CP	MUFFLER ISOLATOR BRKT-FRAME-RR	$50.12	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA577	NUT-HX-FL-M6X1-8-ZFB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC028	WASHER - M6 FORM C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14HA038CP	BRACKET LH RR-MUFFLER	$105.96	To Order

Photo	Part No	Description	Price (each)	Stock
	14HA039CP	BRACKET RH RR-MUFFLER	$105.96	To Order

Photo	Part No	Description	Price (each)	Stock
	16HA203CP	ISOLATOR - WEGU - MUFFLER - VERTICAL	$125.22	To Order

Photo	Part No	Description	Price (each)	Stock
	28HA028CP	MUFFLER ISOLATOR BRKT-FRAME-RR	$50.12	To Order

Photo	Part No	Description	Price (each)	Stock
	28HA025CP	VALVE - EXHAUST 80MM	$1,011.58	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA565	BOLT - HEX HEAD - FLANGE - M6X12	00RA565 BOLT - HEX HEAD - FLANGE - M6X12	-	3	Enquire
000	00RA515	BOLT - HEX - FLANGE - M6X16	00RA515 BOLT - HEX - FLANGE - M6X16	-	8	Enquire
010	11H0065CP	ISOLATOR - MUFFLER MOUNTING	11H0065CP ISOLATOR - MUFFLER MOUNTING	$105.96	2
011	14H0091CP	CLAMP RING - 76MM	14H0091CP CLAMP RING - 76MM	$105.96	2
012	28HA019CP	ASSY-EXHAUST MUFFLER-S-NO VALVE	28HA019CP ASSY-EXHAUST MUFFLER-S-NO VALVE	-	1	Enquire
012	28HA015CP	ASSY-EXHAUST MUFFLER-S-VALVE	28HA015CP ASSY-EXHAUST MUFFLER-S-VALVE	-	1	Enquire
013	26EA028SP	ISOLATOR INSULATION BRACKET	26EA028SP ISOLATOR INSULATION BRACKET	$104.68	2
014	28HA028CP	MUFFLER ISOLATOR BRKT-FRAME-RR	28HA028CP MUFFLER ISOLATOR BRKT-FRAME-RR	$50.12	2
015	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	4	Enquire
016	00RA577	NUT-HX-FL-M6X1-8-ZFB	00RA577 NUT-HX-FL-M6X1-8-ZFB	-	8	Enquire
017	00RC028	WASHER - M6 FORM C	00RC028 WASHER - M6 FORM C	-	8	Enquire
018	14HA038CP	BRACKET LH RR-MUFFLER	14HA038CP BRACKET LH RR-MUFFLER	$105.96	1
019	14HA039CP	BRACKET RH RR-MUFFLER	14HA039CP BRACKET RH RR-MUFFLER	$105.96	1
020	16HA203CP	ISOLATOR - WEGU - MUFFLER - VERTICAL	16HA203CP ISOLATOR - WEGU - MUFFLER - VERTICAL	$125.22	2
021	28HA028CP	MUFFLER ISOLATOR BRKT-FRAME-RR	28HA028CP MUFFLER ISOLATOR BRKT-FRAME-RR	$50.12	2
022	28HA025CP	VALVE - EXHAUST 80MM	28HA025CP VALVE - EXHAUST 80MM	$1,011.58	2
