McLaren 750S Coupe - 34 - ENGINE - 34.11 - ENGINE WATER PUMP & WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
28FA063CP WATER PUMP $1,639.62 To Order
Photo Part No Description Price (each) Stock
11FA031CP BOLT - M6X80 - HEX - 02482939-1 $11.62 To Order
Photo Part No Description Price (each) Stock
11F2433CP COVER - WATER PUMP - ENGINE $24.26 To Order
Photo Part No Description Price (each) Stock
11F2434CP GASKET SERVICE COVER WATER PUMP $15.50 IN STOCK
Photo Part No Description Price (each) Stock
11FA031CP BOLT - M6X80 - HEX - 02482939-1 $11.62 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.66 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $12.59 To Order
Photo Part No Description Price (each) Stock
13F0866CP COOLANT HOSE - FEED - CLUTCH COOLER $125.37 To Order
Photo Part No Description Price (each) Stock
14F0371CP CLAMP OETIKER 00076445 16 - 19.2MM $9.10 To Order
11F1864CP CLAMP OETIKER 16702498 - 16.6-19.8MM Enquire To Order
Photo Part No Description Price (each) Stock
11F2412CP P-CLIP 23MM - CLUTCH COOLER HOSE - ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
11F1791CP SCREW - HEX HEAD - FLANGE - M6X10 $8.32 To Order
Photo Part No Description Price (each) Stock
13FA050CP THERMOSTAT AND HOUSING-ENGINE $252.38 To Order
11F2418CP SENSOR - HEAD TEMPERATURE $91.61 To Order
Photo Part No Description Price (each) Stock
11F1783CP BOLT - M8X30 - HEX $13.57 To Order
Photo Part No Description Price (each) Stock
11F1954CP O-RING - 16-0X2-0 $5.42 To Order
11F1955CP SEAL - O-RING - 23.2 $5.42 To Order
Photo Part No Description Price (each) Stock
14F0654CP TOP HOSE - ENGINE RADIATOR - LH $145.60 To Order
Photo Part No Description Price (each) Stock
14FA394CP TOP HOSE - ENGINE RADIATOR - RH $145.60 To Order
Photo Part No Description Price (each) Stock
11F1782CP BOLT - M6X10 - HEX $14.06 To Order
Photo Part No Description Price (each) Stock
14F0573CP ASSY - HOSE - COOLANT DEGAS - ENGINE $135.89 To Order
14F0638CP HOSE - DEGAS Enquire To Order
14F0636CP ASSY - HOSE - COOLANT DEGAS - VEHICLE $67.93 To Order
Photo Part No Description Price (each) Stock
11F1863CP OETIKER CLIP - 14.1-16.6 $7.94 To Order
Photo Part No Description Price (each) Stock
14F0572CP BRACKET - DEGAS HOSE Enquire To Order
14F0411CP BRACKET - DEGAS HOSE $24.38 To Order
Photo Part No Description Price (each) Stock
14F0414CP PLUG IN CLIP - RAYMOND - 15MM $6.78 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
00RB005 P CLIP - DIA 16 Enquire To Order
Photo Part No Description Price (each) Stock
00RB093 OETIKER CLIP - 16.6 Enquire To Order
Photo Part No Description Price (each) Stock
11F1860CP CLAMP OETIKER 16700033 - 23.9-27.1MM Enquire To Order
00RB204 CLAMP - SPRING BAND - 27X12 Enquire To Order
Photo Part No Description Price (each) Stock
14F0569CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH $106.77 To Order
13F0831CP ASSY PIPE TURBOCHARGER WATER RETURN - UPPER RH Enquire To Order
Photo Part No Description Price (each) Stock
12F0684CP Banjo Bolt - M14x1.5 $43.66 To Order
Photo Part No Description Price (each) Stock
12F0685CP Washer - Sealing - M14 $9.70 To Order
Photo Part No Description Price (each) Stock
14FA043CP HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH $72.79 To Order
Photo Part No Description Price (each) Stock
14FA044CP PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - LH $77.65 To Order
Photo Part No Description Price (each) Stock
14F0568CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH $106.77 To Order
View All

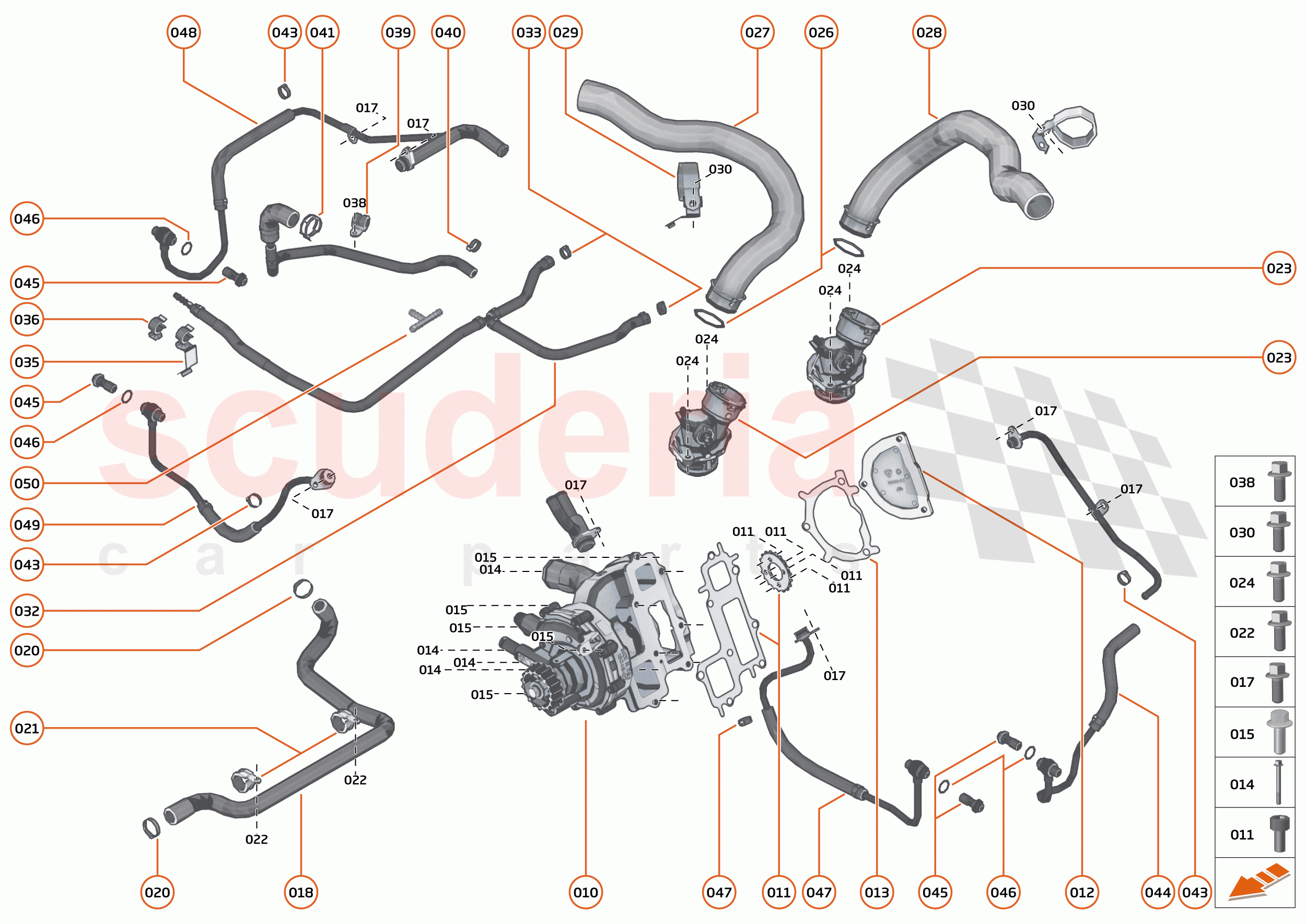

34 - ENGINE - 34.11 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren 750S Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 28FA063CP
WATER PUMP 		$1,639.62 1
011 11FA031CP
BOLT - M6X80 - HEX - 02482939-1 		$11.62 4
012 11F2433CP
COVER - WATER PUMP - ENGINE 		$24.26 1
013 11F2434CP
GASKET SERVICE COVER WATER PUMP
IN STOCK 		$15.50 1
014 11FA031CP
BOLT - M6X80 - HEX - 02482939-1 		$11.62 4
015 11F1793CP
BOLT - M6X20 - HEX 		$10.66 8
017 11F1792CP
BOLT - M6X16 - ENGINE 		$12.59 4
018 13F0866CP
COOLANT HOSE - FEED - CLUTCH COOLER 		$125.37 1
019 11F1859CP
OETIKER CLAMP - 24.1MM 		$12.59 1
020 14F0371CP
CLAMP OETIKER 00076445 16 - 19.2MM 		$9.10 1
020 11F1864CP
CLAMP OETIKER 16702498 - 16.6-19.8MM 		- 4 Enquire
021 11F2412CP
P-CLIP 23MM - CLUTCH COOLER HOSE - ENGINE 		- 2 Enquire
022 11F1791CP
SCREW - HEX HEAD - FLANGE - M6X10 		$8.32 2
023 13FA050CP
THERMOSTAT AND HOUSING-ENGINE 		$252.38 2
023 11F2418CP
SENSOR - HEAD TEMPERATURE 		$91.61 1
024 11F1783CP
BOLT - M8X30 - HEX 		$13.57 4
026 11F1954CP
O-RING - 16-0X2-0 		$5.42 1
026 11F1955CP
SEAL - O-RING - 23.2 		$5.42 1
027 14F0654CP
TOP HOSE - ENGINE RADIATOR - LH 		$145.60 1
028 14FA394CP
TOP HOSE - ENGINE RADIATOR - RH 		$145.60 1
030 11F1782CP
BOLT - M6X10 - HEX 		$14.06 2
032 14F0573CP
ASSY - HOSE - COOLANT DEGAS - ENGINE 		$135.89 1
032 14F0638CP
HOSE - DEGAS 		- 1 Enquire
032 14F0636CP
ASSY - HOSE - COOLANT DEGAS - VEHICLE 		$67.93 1
033 11F1863CP
OETIKER CLIP - 14.1-16.6 		$7.94 1
035 14F0572CP
BRACKET - DEGAS HOSE 		- 1 Enquire
035 14F0411CP
BRACKET - DEGAS HOSE 		$24.38 1
036 14F0414CP
PLUG IN CLIP - RAYMOND - 15MM 		$6.78 1
038 00RA313
SCREW - M6X16 - HEX - SILVER 		- 1 Enquire
039 00RB005
P CLIP - DIA 16 		- 1 Enquire
040 00RB093
OETIKER CLIP - 16.6 		- 1 Enquire
041 11F1860CP
CLAMP OETIKER 16700033 - 23.9-27.1MM 		- 1 Enquire
041 00RB204
CLAMP - SPRING BAND - 27X12 		- 1 Enquire
044 14F0569CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH 		$106.77 1
044 13F0831CP
ASSY PIPE TURBOCHARGER WATER RETURN - UPPER RH 		- 1 Enquire
045 12F0684CP
Banjo Bolt - M14x1.5 		$43.66 1
046 12F0685CP
Washer - Sealing - M14 		$9.70 2
047 14FA043CP
HOSE - TURBOCHARGER OIL FEED - INC. WASHERS/BANJO - RH 		$72.79 1
048 14FA044CP
PIPE - HOSE - TURBOCHARGER WATER FEED - INC CLIPS - LH 		$77.65 1
049 14F0568CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH 		$106.77 1
050 11F1674CP
T PIECE - DEGAS 		$16.49 1
