Find Your Part

View All

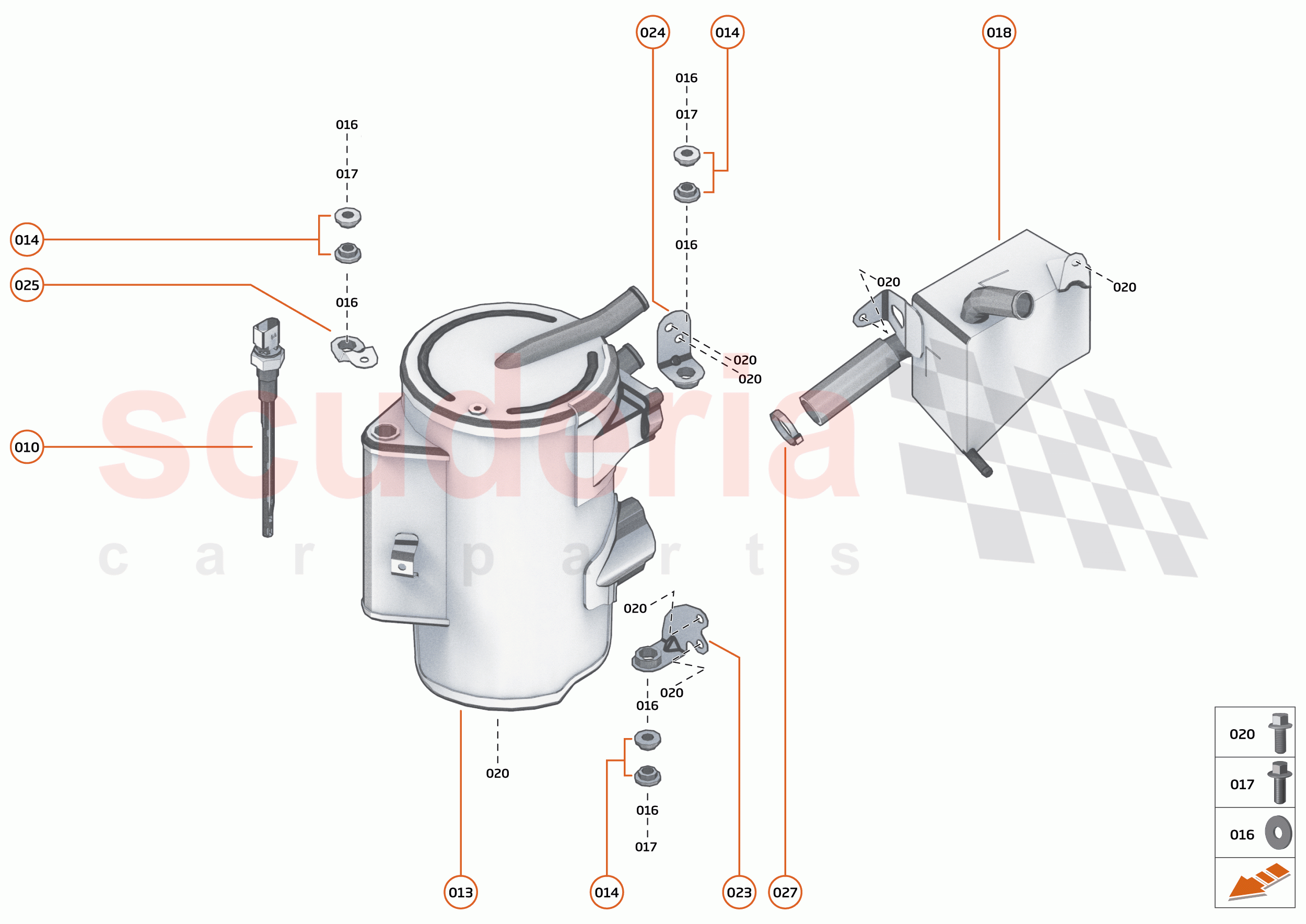

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11M0369CP	SENSOR - ENGINE OIL LEVEL/TEMPERATURE	$361.76	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA355CP	ASSY-OIL TANK-ENGINE	$1,419.90	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0517CP	AV MOUNT - OIL TANK	$4.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0681CP	WASHER-M6-25 OD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0703CP	BOLT-HEX HEAD-FLANGE-M6X35	$4.01	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA347CP	OIL SEPARATOR	$498.24	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	SCREW - M6X16 - HEX - SILVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA091CP	BRACKET - OIL TANK - LOWER	$29.22	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA094CP	BRACKET - OIL TANK - MIDDLE	$30.93	To Order

Photo	Part No	Description	Price (each)	Stock
	14FA095CP	BRACKET - OIL TANK - UPPER	$29.22	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB241	CLAMP SPRINGBAND 32 LOW PROF	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	14FA096CP	SPACER-OIL TANK	14FA096CP SPACER-OIL TANK	-	3	Enquire
010	11M0369CP	SENSOR - ENGINE OIL LEVEL/TEMPERATURE	11M0369CP SENSOR - ENGINE OIL LEVEL/TEMPERATURE	$361.76	1
013	14FA355CP	ASSY-OIL TANK-ENGINE	14FA355CP ASSY-OIL TANK-ENGINE	$1,419.90	1
014	14F0517CP	AV MOUNT - OIL TANK	14F0517CP AV MOUNT - OIL TANK	$4.56	6
016	14F0681CP	WASHER-M6-25 OD	14F0681CP WASHER-M6-25 OD	-	6	Enquire
017	14F0703CP	BOLT-HEX HEAD-FLANGE-M6X35	14F0703CP BOLT-HEX HEAD-FLANGE-M6X35	$4.01	3
018	14FA347CP	OIL SEPARATOR	14FA347CP OIL SEPARATOR	$498.24	1
020	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER	-	7	Enquire
023	14FA091CP	BRACKET - OIL TANK - LOWER	14FA091CP BRACKET - OIL TANK - LOWER	$29.22	1
024	14FA094CP	BRACKET - OIL TANK - MIDDLE	14FA094CP BRACKET - OIL TANK - MIDDLE	$30.93	1
025	14FA095CP	BRACKET - OIL TANK - UPPER	14FA095CP BRACKET - OIL TANK - UPPER	$29.22	1
027	00RB241	CLAMP SPRINGBAND 32 LOW PROF	00RB241 CLAMP SPRINGBAND 32 LOW PROF	-	1	Enquire
