33 - Engine - 33.7 - Fuel Rail & Injectors

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 33 - ENGINE - 33.7 - FUEL RAIL & INJECTORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

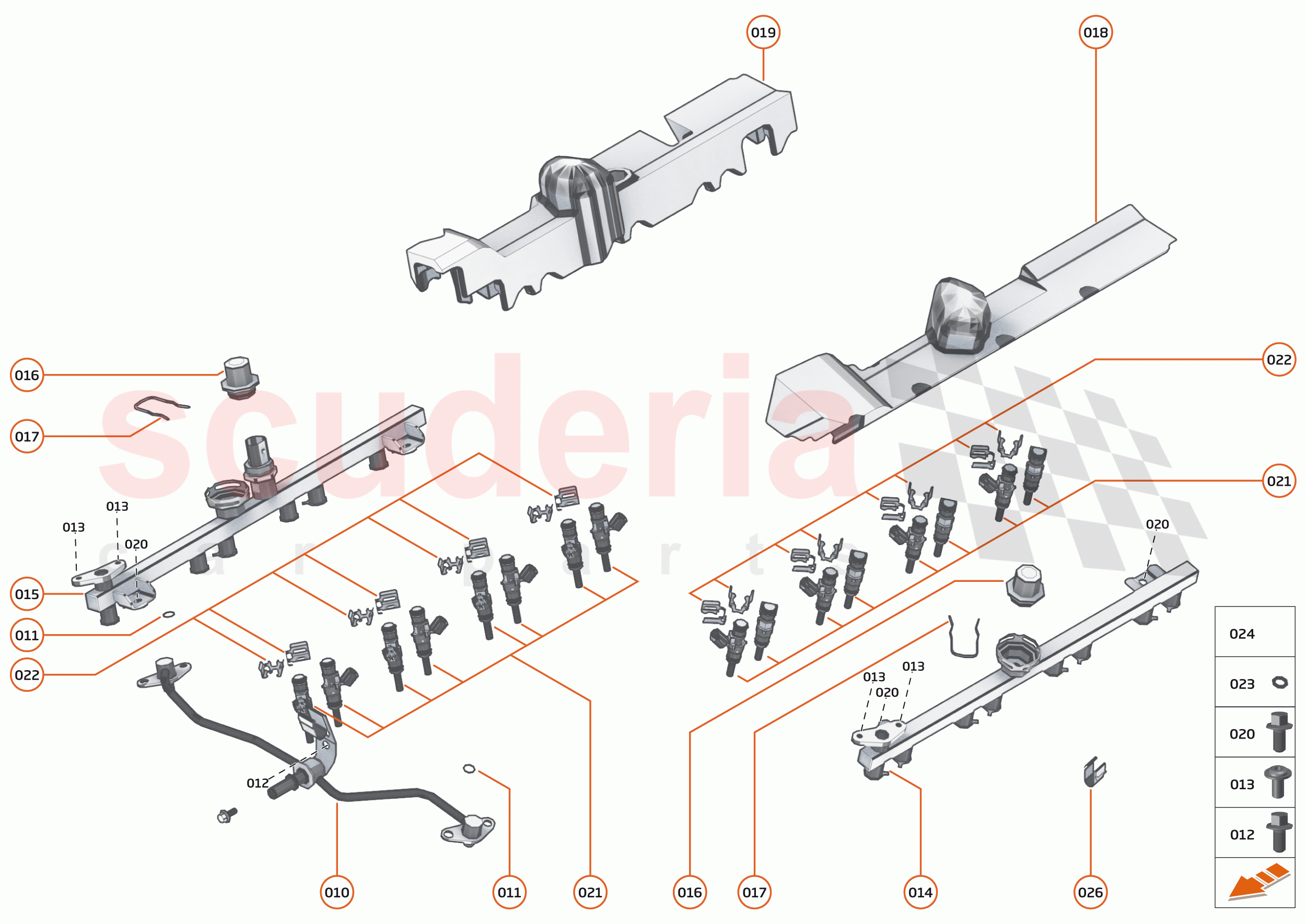

33 - ENGINE - 33.7 - FUEL RAIL & INJECTORS of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14F0002CP
LINK PIPE - FUEL RAIL - INC. O-RINGS 		$345.86 1
011 14F0625CP
SEAL - O-RING - 7.8X1.9 		$2.31 2
012 11F1787CP
BOLT - M6X12 - HEX 		$14.01 1
013 14F0737CP
SCREW - TORX - M6X10 		$10.79 4
014 14FA006CP
FUEL RAIL - LH 		$859.77 1
015 14FA007CP
FUEL RAIL - RH 		$859.77 1
016 14FA039CP
FUEL RAIL DAMPER 		$114.63 2
017 14FA038CP
CLIP - FUEL RAIL DAMPER 		$19.32 2
018 14F0842CP
NVH - FUEL RAIL - LH 		$96.07 1
019 14F0843CP
NVH - FUEL RAIL - RH 		$96.07 1
020 11F1792CP
BOLT - M6X16 - ENGINE 		$12.55 4
021 14F0137CP
INJECTOR - ENGINE FUEL RAIL 		$135.36 16
022 14F0400CP
CLIP - INJECTOR 		$11.58 16
023 14FA148CP
O-RING KIT - FUEL INJECTOR - COMPLETE RAIL KIT 		$384.29 1
024 14FA003CP
ASSY FUEL RAIL 		$472.47 1
025 11F2029CP
CLIP - RAYMOND - 2WAY - 13493 		$7.67 1
