33 - Engine - 33.6 - Front Cover, Timing Gear & Crankshaft Damper

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 33 - ENGINE - 33.6 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA120 SCREW - M6X25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14F0851CP FRONT COVER - ENGINE - INC PERIMETER SEAL - NOT INC CRANK SEAL $405.58 To Order
Photo Part No Description Price (each) Stock
11F1776CP BOLT - M6X30 - HEX $9.65 To Order
Photo Part No Description Price (each) Stock
11F1904CP NUT - M6 $4.24 To Order
Photo Part No Description Price (each) Stock
11F1393CP Seal - Engine - Front Cover Perimeter $53.09 To Order
Photo Part No Description Price (each) Stock
11F0977CP Cover - Cylinder Head Front - LH - Engine $144.84 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.61 To Order
Photo Part No Description Price (each) Stock
11F0978CP Cover - Cylinder Head Front - RH - Engine $144.84 To Order
Photo Part No Description Price (each) Stock
11F0722CP Chain Drive Kit - Engine - Oil Pump $212.45 To Order
Photo Part No Description Price (each) Stock
11F0708CP ENGINE CRANKSHAFT 24MPER $598.71 To Order
View All

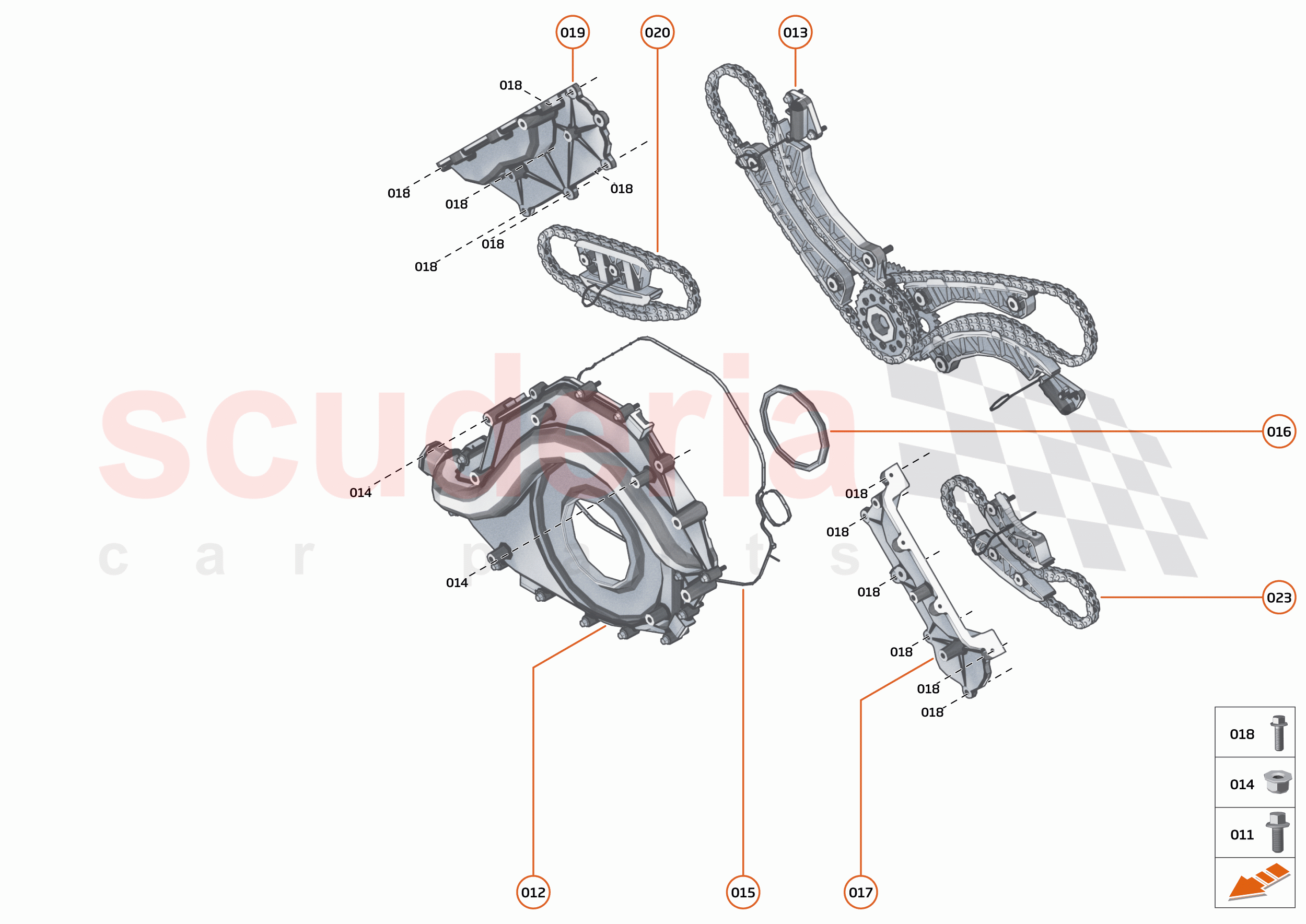

33 - ENGINE - 33.6 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
011 00RA120
SCREW - M6X25 - HEX 		- 4 Enquire
012 14F0851CP
FRONT COVER - ENGINE - INC PERIMETER SEAL - NOT INC CRANK SEAL 		$405.58 1
013 11F1776CP
BOLT - M6X30 - HEX
Superseded parts: 11F0824CP; 		$9.65 1
014 11F1904CP
NUT - M6
NUT - M6; 		$4.24 2
015 11F1393CP
Seal - Engine - Front Cover Perimeter 		$53.09 1
016 11F1387CP
FRONT CRANK SEAL 		- 1 Enquire
017 11F0977CP
Cover - Cylinder Head Front - LH - Engine 		$144.84 1
018 11F1793CP
BOLT - M6X20 - HEX
Superseded parts: 11F0825CP; 		$10.61 12
019 11F0978CP
Cover - Cylinder Head Front - RH - Engine 		$144.84 1
020 11F0722CP
Chain Drive Kit - Engine - Oil Pump 		$212.45 1
021 11F0723CP
Camshaft Drive Kit - Engine 		$1,335.61 1
022 11F0722CP
Chain Drive Kit - Engine - Oil Pump 		$212.45 1
023 11F0708CP
ENGINE CRANKSHAFT 24MPER 		$598.71 1
024 11F0816CP
Bolt Set - M8x20 - Engine - Crankshaft Damper 		$57.91 1
025 11F2344CP
SEAL - ENGINE CRANK - REAR
Superseded parts: 11F0706CP; 		$106.21 1
