Name: 33 - ENGINE - 33.4 - INLET MANIFOLD
Rating: 5.0 (1 reviews)

33 - ENGINE - 33.4 - INLET MANIFOLD of McLaren McLaren 720S Spider

View All

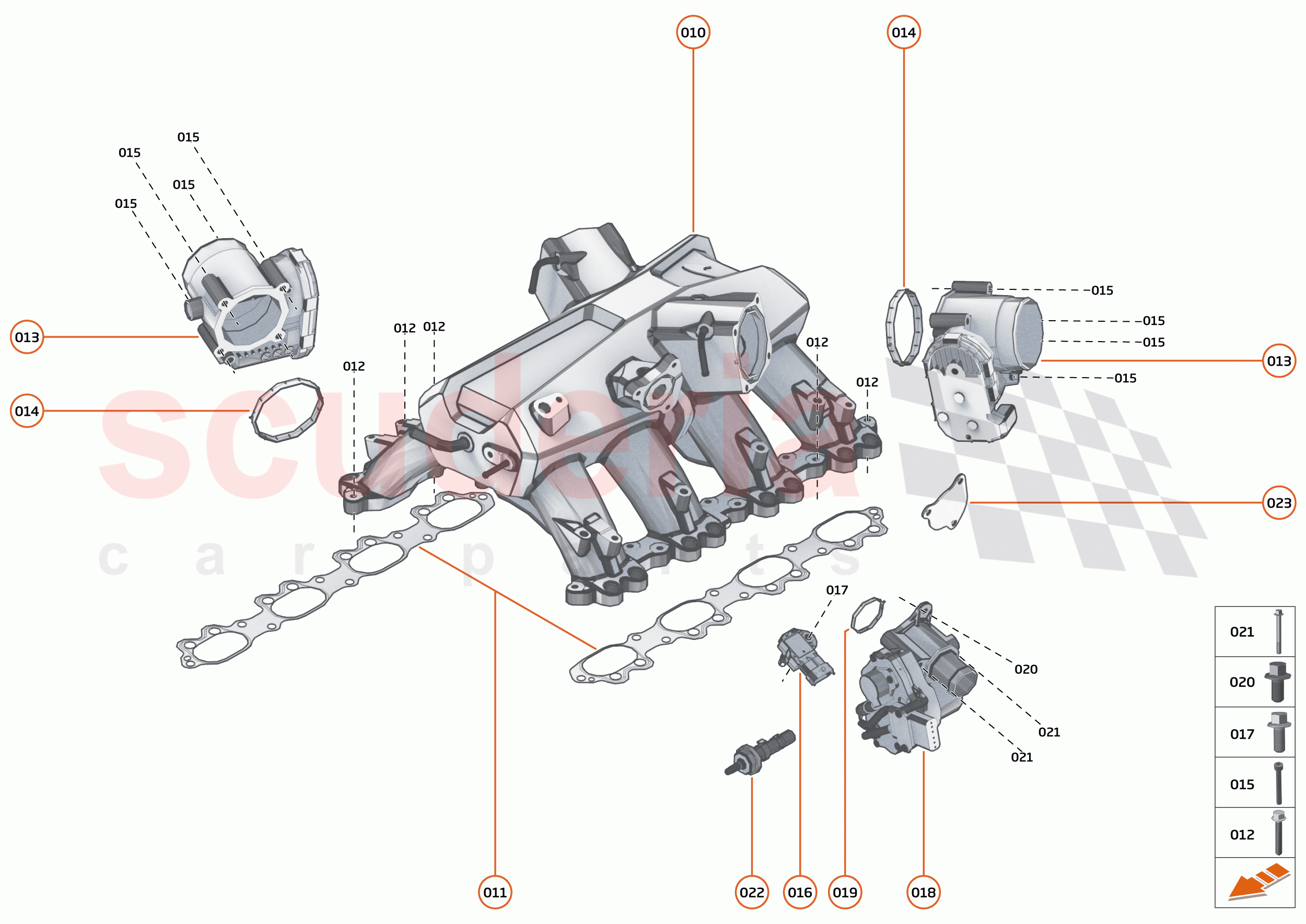

McLaren 720S Spider - 33 - ENGINE - 33.4 - INLET MANIFOLD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14F0674CP	INLET MANIFOLD ASSY - ENGINE	$4,951.43	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0360CP	GASKET - INLET MANIFOLD - ENGINE	$52.78	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1776CP	BOLT - M6X30 - HEX	$9.60	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1740CP	THROTTLE BODY - ENGINE	$777.80	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2289CP	SEAL - THROTTLE BODY - ENGINE	$38.39	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1797CP	SCREW - CAP HEAD - M6X45	$8.42	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0322CP	SENSOR - TMAP - INLET MANIFOLD - ENGINE	$66.75	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1793CP	BOLT - M6X20 - HEX	$10.55	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0780CP	INTAKE SOUND GENERATOR - THROTTLE	$725.01	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2290CP	SEAL - INTAKE SOUND GENERATOR - THROTTLE BODY - ENGINE	$28.78	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1792CP	BOLT - M6X16 - ENGINE	$12.46	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1799CP	BOLT - M6X60 - HEX	$3.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0766CP	ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD	$74.99	To Order

Photo	Part No	Description	Price (each)	Stock
	14F0666CP	BLANK - THROTTLE - INTAKE SOUND GENERATOR	$28.78	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
010	14F0674CP	INLET MANIFOLD ASSY - ENGINE	14F0674CP INLET MANIFOLD ASSY - ENGINE	$4,951.43	1
011	14F0360CP	GASKET - INLET MANIFOLD - ENGINE	14F0360CP GASKET - INLET MANIFOLD - ENGINE	$52.78	2
012	11F1776CP	BOLT - M6X30 - HEX	11F1776CP BOLT - M6X30 - HEX Superseded parts: 11F0824CP;	$9.60	16
013	11F1740CP	THROTTLE BODY - ENGINE	11F1740CP THROTTLE BODY - ENGINE Superseded parts: 11F0407CP;	$777.80	2
014	11F2289CP	SEAL - THROTTLE BODY - ENGINE	11F2289CP SEAL - THROTTLE BODY - ENGINE Superseded parts: 11F0969CP;	$38.39	2
015	11F1797CP	SCREW - CAP HEAD - M6X45	11F1797CP SCREW - CAP HEAD - M6X45	$8.42	2
016	14F0322CP	SENSOR - TMAP - INLET MANIFOLD - ENGINE	14F0322CP SENSOR - TMAP - INLET MANIFOLD - ENGINE	$66.75	1
017	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Superseded parts: 11F0825CP;	$10.55	1
018	14F0780CP	INTAKE SOUND GENERATOR - THROTTLE	14F0780CP INTAKE SOUND GENERATOR - THROTTLE	$725.01	1
019	11F2290CP	SEAL - INTAKE SOUND GENERATOR - THROTTLE BODY - ENGINE	11F2290CP SEAL - INTAKE SOUND GENERATOR - THROTTLE BODY - ENGINE Superseded parts: 11F0968CP;	$28.78	1
020	11F1792CP	BOLT - M6X16 - ENGINE	11F1792CP BOLT - M6X16 - ENGINE	$12.46	1
021	11F1799CP	BOLT - M6X60 - HEX	11F1799CP BOLT - M6X60 - HEX	$3.77	2
022	14F0766CP	ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD	14F0766CP ASSY - BRAKE BOOST - HOSE - INLET MANIFOLD	$74.99	1
023	14F0666CP	BLANK - THROTTLE - INTAKE SOUND GENERATOR	14F0666CP BLANK - THROTTLE - INTAKE SOUND GENERATOR	$28.78	1

33 - Engine - 33.4 - Inlet Manifold

McLaren 720S Spider

McLaren 720S Spider - 33 - ENGINE - 33.4 - INLET MANIFOLD
