McLaren 720S Spider - 7 - CLOSURES - 7.8 - SIDE MIRRORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14A3464CP SCALP - DOOR MIRROR - LH $91.23 To Order
14A3463CP SCALP - DOOR MIRROR - RH $91.23 To Order
Photo Part No Description Price (each) Stock
11A8442CP MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH Enquire To Order
11A8438CP MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH Enquire To Order
16AF876CP ASSY GLASS MIRROR-EU-CVX-LH $364.97 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14AC993CP SCALP - DOOR MIRROR - LOWER - RH - CAMERA $62.82 To Order
14AC991CP SCALP LOWER RH Enquire To Order
14AC992CP SCALP - DOOR MIRROR - LOWER - LH - CAMERA $62.82 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14A0074MP SCALP - DOOR MIRROR - CARBON - RH - MSO Enquire To Order
14A0071MP SCALP - DOOR MIRROR - CARBON - LH - MSO Enquire To Order
14AC893CP SCALP-REINFORCEMENT-RH $43.20 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA599 SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84 Enquire To Order
Photo Part No Description Price (each) Stock
00RC027 WASHER - M4 FORM C - LARGE Enquire To Order
Photo Part No Description Price (each) Stock
14A4484CP CAMERA BEZEL LH - DOOR MIR $43.20 To Order
14A4486CP CAMERA BEZEL RH - DOOR MIR $43.20 To Order
Photo Part No Description Price (each) Stock
14A0073MP BASE COVER - DOOR MIRROR - UPPER - RH - MSO Enquire To Order
14A0070MP BASE COVER - DOOR MIRROR - UPPER - LH - MSO Enquire To Order
14A1430CP MLDG BASE DOOR MIRROR COVER UPR RH $57.61 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA296 SCREW-EJOT ALTRAC-WN5152-M3x10 Enquire To Order
Photo Part No Description Price (each) Stock
00RA363 SCREW - TORX - 4X12 Enquire To Order
Photo Part No Description Price (each) Stock
14A0072MP COVER - DOOR MIRROR BASE - LOWER - RH - MSO Enquire To Order
14A0069MP COVER - DOOR MIRROR BASE - LOWER - LH - MSO Enquire To Order
14A1429CP MLDG BASE DOOR MIRROR COVER LWR RH $48.01 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
28AB240CP FOAM - DOOR MIRROR MLDG LH $144.06 To Order
14A4509CP FOAM - DOOR MIRROR MLDG RH $211.29 To Order
Photo Part No Description Price (each) Stock
14AC166CP SEAL DOOR MIRROR LWR RH $33.83 To Order
14AC165CP SEAL DOOR MIRROR LWR LH $33.83 To Order
Photo Part No Description Price (each) Stock
14A1427CP WIRING HARNESS - DOOR MIRROR - RH $91.23 To Order
14A1450CP WIRING HARNESS - DOOR MIRROR - LH $91.23 To Order
Photo Part No Description Price (each) Stock
14AA716CP CSTG DOOR MIRROR BASE LH - MACHINED $134.45 To Order
Photo Part No Description Price (each) Stock
14AA674CP CSTG DOOR MIRROR BASE RH - MACHINED $134.45 To Order
Photo Part No Description Price (each) Stock
00RA374 SCREW - TORX - 3.5X12 Enquire To Order
Photo Part No Description Price (each) Stock
13A4871CP SEAL - DOOR MIRROR - MOUNT - RH $43.48 To Order
13A4869CP SEAL - DOOR MIRROR - MOUNT - LH $43.48 To Order
Photo Part No Description Price (each) Stock
11A8446CP ACTUATOR - DOOR MIRROR GLASS $134.45 To Order
Photo Part No Description Price (each) Stock
00RA442 SCREW - TORX - 3X38 Enquire To Order
Photo Part No Description Price (each) Stock
11A8454CP FRAME - DOOR MIRROR GLASS - LH $96.04 To Order
11A8453CP FRAME - DOOR MIRROR GLASS - RH $96.04 To Order
Photo Part No Description Price (each) Stock
11A8456CP MOTOR - DOOR MIRROR GLASS - LH $124.85 To Order
11A8455CP MOTOR - DOOR MIRROR GLASS - RH $124.85 To Order
Photo Part No Description Price (each) Stock
00RA491 SCREW - TORX - 3X20 Enquire To Order
Photo Part No Description Price (each) Stock
14AC135CP DOOR MIRROR - COMPLETE - CAMERA - CARBON - CHINA ONLY - RH Enquire To Order
14AC129CP DOOR MIRROR - COMPLETE - CAMERA - UNPAINTED - CHINA ONLY - RH Enquire To Order
14AC105CP DOOR MIRROR - COMPLETE - UNPAINTED - CHINA ONLY - LH Enquire To Order
...and 5 more part variants. See table on right for more details.
View All

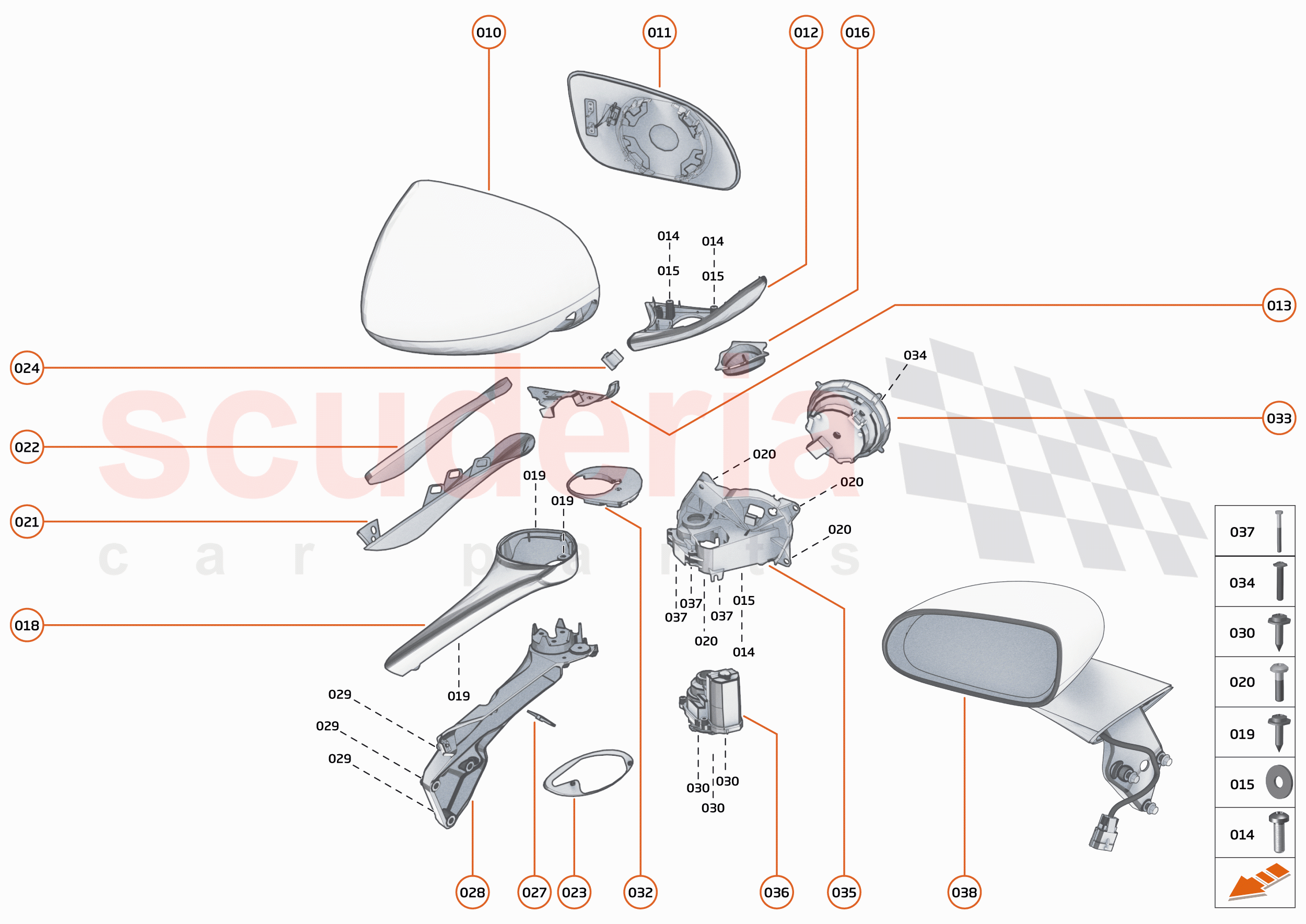

7 - CLOSURES - 7.8 - SIDE MIRRORS of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14A3464CP
SCALP - DOOR MIRROR - LH 		$91.23 1
010 14A3463CP
SCALP - DOOR MIRROR - RH 		$91.23 1
011 11A8442CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH 		- 1 Enquire
011 11A8438CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH 		- 1 Enquire
011 16AF876CP
ASSY GLASS MIRROR-EU-CVX-LH 		$364.97 1
011 11A8430CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH 		- 1 Enquire
011 11A8426CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH 		- 1 Enquire
011 16AF877CP
ASSY GLASS MIRROR-EU-CVX-RH 		$364.97 1
012 14AC993CP
SCALP - DOOR MIRROR - LOWER - RH - CAMERA 		$62.82 1
012 14AC991CP
SCALP LOWER RH 		- 1 Enquire
012 14AC992CP
SCALP - DOOR MIRROR - LOWER - LH - CAMERA 		$62.82 1
012 14AC990CP
SCALP LOWER LH 		- 1 Enquire
013 14A0074MP
SCALP - DOOR MIRROR - CARBON - RH - MSO 		- 1 Enquire
013 14A0071MP
SCALP - DOOR MIRROR - CARBON - LH - MSO 		- 1 Enquire
013 14AC893CP
SCALP-REINFORCEMENT-RH 		$43.20 1
013 14AC890CP
SCALP-REINFORCEMENT-LH 		$43.20 1
014 00RA599
SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84 		- 3 Enquire
015 00RC027
WASHER - M4 FORM C - LARGE 		- 3 Enquire
016 14A4484CP
CAMERA BEZEL LH - DOOR MIR 		$43.20 1
016 14A4486CP
CAMERA BEZEL RH - DOOR MIR 		$43.20 1
018 14A0073MP
BASE COVER - DOOR MIRROR - UPPER - RH - MSO 		- 1 Enquire
018 14A0070MP
BASE COVER - DOOR MIRROR - UPPER - LH - MSO 		- 1 Enquire
018 14A1430CP
MLDG BASE DOOR MIRROR COVER UPR RH 		$57.61 1
018 14A1453CP
MLDG BASE DOOR MIRROR COVER UPR LH 		$57.61 1
019 00RA296
SCREW-EJOT ALTRAC-WN5152-M3x10 		- 3 Enquire
020 00RA363
SCREW - TORX - 4X12 		- 5 Enquire
021 14A0072MP
COVER - DOOR MIRROR BASE - LOWER - RH - MSO 		- 1 Enquire
021 14A0069MP
COVER - DOOR MIRROR BASE - LOWER - LH - MSO 		- 1 Enquire
021 14A1429CP
MLDG BASE DOOR MIRROR COVER LWR RH 		$48.01 1
021 14A1452CP
MLDG BASE DOOR MIRROR COVER LWR LH 		$48.01 1
022 28AB240CP
FOAM - DOOR MIRROR MLDG LH 		$144.06 1
022 14A4509CP
FOAM - DOOR MIRROR MLDG RH 		$211.29 1
023 14AC166CP
SEAL DOOR MIRROR LWR RH 		$33.83 1
023 14AC165CP
SEAL DOOR MIRROR LWR LH 		$33.83 1
024 14A1427CP
WIRING HARNESS - DOOR MIRROR - RH 		$91.23 1
024 14A1450CP
WIRING HARNESS - DOOR MIRROR - LH 		$91.23 1
025 00RB059
CLIP CONNECTOR - TRW 		- 1 Enquire
028 14AA716CP
CSTG DOOR MIRROR BASE LH - MACHINED 		$134.45 1
029 14AA674CP
CSTG DOOR MIRROR BASE RH - MACHINED 		$134.45 1
030 00RA374
SCREW - TORX - 3.5X12 		- 3 Enquire
032 13A4871CP
SEAL - DOOR MIRROR - MOUNT - RH 		$43.48 1
032 13A4869CP
SEAL - DOOR MIRROR - MOUNT - LH 		$43.48 1
033 11A8446CP
ACTUATOR - DOOR MIRROR GLASS 		$134.45 1
034 00RA442
SCREW - TORX - 3X38 		- 1 Enquire
035 11A8454CP
FRAME - DOOR MIRROR GLASS - LH 		$96.04 1
035 11A8453CP
FRAME - DOOR MIRROR GLASS - RH 		$96.04 1
036 11A8456CP
MOTOR - DOOR MIRROR GLASS - LH 		$124.85 1
036 11A8455CP
MOTOR - DOOR MIRROR GLASS - RH 		$124.85 1
037 00RA491
SCREW - TORX - 3X20 		- 3 Enquire
038 14AC135CP
DOOR MIRROR - COMPLETE - CAMERA - CARBON - CHINA ONLY - RH 		- 1 Enquire
038 14AC129CP
DOOR MIRROR - COMPLETE - CAMERA - UNPAINTED - CHINA ONLY - RH 		- 1 Enquire
038 14AC105CP
DOOR MIRROR - COMPLETE - UNPAINTED - CHINA ONLY - LH 		- 1 Enquire
038 14AC099CP
DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - RH 		- 1 Enquire
038 14AC123CP
DOOR MIRROR - COMPLETE - CAMERA - CARBON - CHINA ONLY - LH 		- 1 Enquire
038 14AC093CP
DOOR MIRROR - COMPLETE - UNPAINTED - CHINA ONLY - RH 		- 1 Enquire
038 14AC111CP
DOOR MIRROR - COMPLETE - CARBON - CHINA ONLY - LH 		- 1 Enquire
038 14AC117CP
DOOR MIRROR - COMPLETE - CAMERA - UNPAINTED - CHINA ONLY - LH 		- 1 Enquire
