6 - Panels - 6.3 - Bodyside Assembled

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 6 - PANELS - 6.3 - BODYSIDE ASSEMBLED

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RB013 Spier Clip - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RA068 SCREW-HEX HEAD-FLA24E-M8X12 Enquire To Order
Photo Part No Description Price (each) Stock
14A2729CP BRACKET - STRUCTURAL AIR BOX - BODYSIDE REAR - LH Enquire To Order
Photo Part No Description Price (each) Stock
14A2731CP BRACKET - STRUCTURAL AIR BOX - BODYSIDE REAR - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RA130 SCREW - NR8X13 - FLANGE Enquire To Order
Photo Part No Description Price (each) Stock
00RB185 CLIP - CANTRAIL CAPPING PANEL Enquire To Order
Photo Part No Description Price (each) Stock
00RB196 CLIP - NUT STRAP - 4.2X0.8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC047 Washer - OD12.7xID4.7x1.6 Enquire To Order
Photo Part No Description Price (each) Stock
14AA642CP BODYSIDE LOWER - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
14A3044CP GRILLE - BODYSIDE LOWER - REAR - RH $116.48 To Order
Photo Part No Description Price (each) Stock
14AA403SP SERVICE COVER - INNER - RH $601.89 To Order
Photo Part No Description Price (each) Stock
14A4184CP MESH - BODYSIDE - REAR - LH $578.72 To Order
Photo Part No Description Price (each) Stock
14A4188CP MESH - BODYSIDE - REAR - RH $578.72 To Order
Photo Part No Description Price (each) Stock
14AD509CP SERVICE COVER - INNER - LH $67.94 To Order
Photo Part No Description Price (each) Stock
14AA403SP SERVICE COVER - INNER - RH $601.89 To Order
Photo Part No Description Price (each) Stock
14A1844CP DUCT - CABIN AIR EVACUATION $53.03 To Order
Photo Part No Description Price (each) Stock
14AA645CP AIR EVACUATION VENT - INC GASKET $61.99 To Order
Photo Part No Description Price (each) Stock
14AA646CP FINISHER - UPPER - AIR EVACUATION $42.93 To Order
Photo Part No Description Price (each) Stock
14AB557SP ASSY PNL AERO BRIDGE-FNDR LH-SPIDER Enquire To Order
14AB228SP ASSY PNL AERO BRIDGE-FNDR LH-SPIDER Enquire To Order
14AA302MP AERO BRIDGE PANEL - OUTER CARBON - LH - SPIDER - MSO Enquire To Order
Photo Part No Description Price (each) Stock
14AC628CP BODYSIDE - LOWER - REAR - RH Enquire To Order
Photo Part No Description Price (each) Stock
00RB012 CLIP - 2MM - TRIM PANEL Enquire To Order
Photo Part No Description Price (each) Stock
14AA303MP AERO BRIDGE PANEL - OUTER CARBON - RH - SPIDER - MSO Enquire To Order
14AB559SP ASSY PNL AERO BRIDGE-FNDR RH-SPIDER Enquire To Order
14AB230SP ASSY PNL AERO BRIDGE-FNDR RH-SPIDER Enquire To Order
Photo Part No Description Price (each) Stock
00RA556 BOLT - HEX - FLANGED - M6X16 Enquire To Order
Photo Part No Description Price (each) Stock
14A4184CP MESH - BODYSIDE - REAR - LH $578.72 To Order
Photo Part No Description Price (each) Stock
14AB093CP GROMMET - AIRBRAKE HEATSHIELD $7.76 To Order
Photo Part No Description Price (each) Stock
14A4188CP MESH - BODYSIDE - REAR - RH $578.72 To Order
Photo Part No Description Price (each) Stock
14AB408CP GRILLE - DIRTY AIR DUCT - LH $289.35 To Order
Photo Part No Description Price (each) Stock
14AB333CP DIRTY AIR DUCT - LH Enquire To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14AB409CP GRILLE - DIRTY AIR DUCT - RH $289.35 To Order
Photo Part No Description Price (each) Stock
14AB336CP DIRTY AIR DUCT - RH Enquire To Order
Photo Part No Description Price (each) Stock
14AD399CP TAPE - STONE PROTECTION - SIDE DUCT - LH $43.38 To Order
Photo Part No Description Price (each) Stock
14AD398CP TAPE - STONE PROTECTION - SIDE DUCT - RH $43.38 To Order
Photo Part No Description Price (each) Stock
14AC542CP TAPE - STONE PROTECTION - BODYSIDE LOWER - LH $63.08 To Order
Photo Part No Description Price (each) Stock
14AC543CP TAPE - STONE PROTECTION - BODYSIDE LOWER - RH $63.08 To Order
Photo Part No Description Price (each) Stock
14AB779SP ASSY FENDER RR RH SPIDER $3,896.81 To Order
Photo Part No Description Price (each) Stock
14AB775SP ASSY FENDER RR LH SPIDER $3,896.81 To Order
Photo Part No Description Price (each) Stock
14A3250SP ASSY MLDG CHEATER PANEL SPIDER - RH $63.08 To Order
Photo Part No Description Price (each) Stock
14A3252SP ASSY MLDG CHEATER PANEL SPIDER - LH $67.94 To Order
Photo Part No Description Price (each) Stock
14AA951SP CHEATER PANEL SHIM 1MM $6.00 To Order
Photo Part No Description Price (each) Stock
14AA952SP CHEATER PANEL SHIM 2MM $6.57 To Order
Photo Part No Description Price (each) Stock
14AB452SP ASSY RR AIRBRAKE HEATSHIELD SPIDER Enquire To Order
Photo Part No Description Price (each) Stock
14AC553CP FINISHER - SIDE DUCT - LH Enquire To Order
Photo Part No Description Price (each) Stock
14AC554CP FINISHER - SIDE DUCT - RH Enquire To Order
Photo Part No Description Price (each) Stock
14AD149CP ASSY EXTN BODYSIDE RR LWR LH - REAR - LOWER - LH $194.14 To Order
Photo Part No Description Price (each) Stock
14AD152CP BODYSIDE EXTENSION - REAR - LOWER - RH $194.14 To Order
Photo Part No Description Price (each) Stock
14AA636CP BODYSIDE LOWER - LH Enquire To Order
Photo Part No Description Price (each) Stock
14AC625CP BODYSIDE - LOWER - REAR - LH Enquire To Order
Photo Part No Description Price (each) Stock
14AC628CP BODYSIDE - LOWER - REAR - RH Enquire To Order
View All

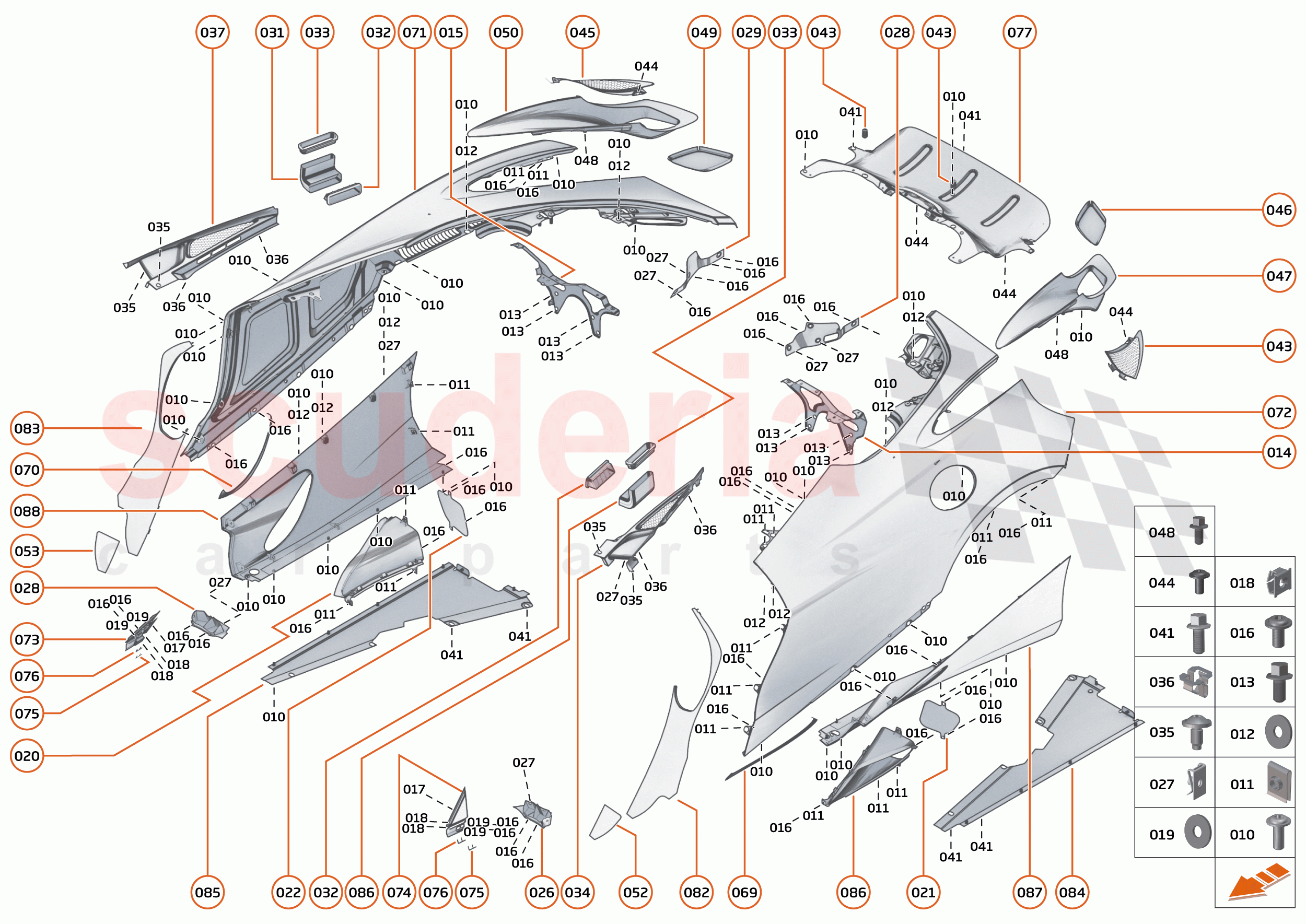

6 - PANELS - 6.3 - BODYSIDE ASSEMBLED of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 1 Enquire
011 00RB013
Spier Clip - M6 		- 2 Enquire
012 00RC064
WASHER - M6X18X1.6 - BLACK 		- 5 Enquire
013 00RA068
SCREW-HEX HEAD-FLA24E-M8X12 		- 4 Enquire
014 14A2729CP
BRACKET - STRUCTURAL AIR BOX - BODYSIDE REAR - LH 		- 1 Enquire
015 14A2731CP
BRACKET - STRUCTURAL AIR BOX - BODYSIDE REAR - RH 		- 1 Enquire
016 00RA130
SCREW - NR8X13 - FLANGE 		- 2 Enquire
017 00RB185
CLIP - CANTRAIL CAPPING PANEL 		- 1 Enquire
018 00RB196
CLIP - NUT STRAP - 4.2X0.8 		- 2 Enquire
019 00RC047
Washer - OD12.7xID4.7x1.6 		- 2 Enquire
020 14AA642CP
BODYSIDE LOWER - RH 		- 2 Enquire
021 00RB183
CLIP - U NUT - M6 		- 1 Enquire
022 14A3044CP
GRILLE - BODYSIDE LOWER - REAR - RH 		$116.48 1
023 14AD509CP
SERVICE COVER - INNER - LH 		$67.94 1
024 14AA403SP
SERVICE COVER - INNER - RH 		$601.89 1
025 00RA303
Screw - Button Head - Hex Flange - M4x6-10.9 BLK 		- 1 Enquire
026 14A4184CP
MESH - BODYSIDE - REAR - LH 		$578.72 1
027 14A4188CP
MESH - BODYSIDE - REAR - RH 		$578.72 1
028 14AD509CP
SERVICE COVER - INNER - LH 		$67.94 1
029 14AA403SP
SERVICE COVER - INNER - RH 		$601.89 1
030 14A3043CP
GRILLE - BODYSIDE LOWER - REAR - LH 		$116.48 1
031 14A1844CP
DUCT - CABIN AIR EVACUATION 		$53.03 1
032 14AA645CP
AIR EVACUATION VENT - INC GASKET 		$61.99 1
033 14AA646CP
FINISHER - UPPER - AIR EVACUATION 		$42.93 1
034 14AB557SP
ASSY PNL AERO BRIDGE-FNDR LH-SPIDER 		- - Enquire
034 14AB228SP
ASSY PNL AERO BRIDGE-FNDR LH-SPIDER 		- 1 Enquire
034 14AA302MP
AERO BRIDGE PANEL - OUTER CARBON - LH - SPIDER - MSO 		- 1 Enquire
035 14AC628CP
BODYSIDE - LOWER - REAR - RH 		- 1 Enquire
036 00RB012
CLIP - 2MM - TRIM PANEL 		- 1 Enquire
037 14AA303MP
AERO BRIDGE PANEL - OUTER CARBON - RH - SPIDER - MSO 		- 1 Enquire
037 14AB559SP
ASSY PNL AERO BRIDGE-FNDR RH-SPIDER 		- - Enquire
037 14AB230SP
ASSY PNL AERO BRIDGE-FNDR RH-SPIDER 		- 1 Enquire
038 14AA646CP
FINISHER - UPPER - AIR EVACUATION 		$42.93 1
039 14A0601CP
SUPPORT BRACKET - WHEEL ARCH LINER - FRONT - LH 		$38.16 1
040 14A0602CP
SUPPORT BRACKET - WHEEL ARCH LINER - FRONT - RH 		$38.16 1
041 00RA556
BOLT - HEX - FLANGED - M6X16
Superseded parts: 00RA313; 		- 6 Enquire
042 00RX001
BOLT - M5X16 - HEX 		- 2 Enquire
043 14A4184CP
MESH - BODYSIDE - REAR - LH 		$578.72 2
044 14AB093CP
GROMMET - AIRBRAKE HEATSHIELD 		$7.76 2
045 14A4188CP
MESH - BODYSIDE - REAR - RH 		$578.72 1
046 14AB408CP
GRILLE - DIRTY AIR DUCT - LH 		$289.35 1
047 14AB333CP
DIRTY AIR DUCT - LH 		- 1 Enquire
048 00RX003
BOLT - M6X1X12 - HEX 		- 2 Enquire
049 14AB409CP
GRILLE - DIRTY AIR DUCT - RH 		$289.35 1
050 14AB336CP
DIRTY AIR DUCT - RH 		- 1 Enquire
051 14AB663SP
ASSY RR AIRBRAKE HEATSHIELD - SPIDER 		$1,138.16 1
052 14AD399CP
TAPE - STONE PROTECTION - SIDE DUCT - LH 		$43.38 1
053 14AD398CP
TAPE - STONE PROTECTION - SIDE DUCT - RH 		$43.38 1
060 00RA601
SCREW - M6X1X12 		- 2 Enquire
061 00RB012
CLIP - 2MM - TRIM PANEL 		- 1 Enquire
062 00RA427
Starlock - Diameter 6mm Shaft - 8024 		- 2 Enquire
064 14AC496CP
COVER - UPPER DOOR HINGE - LH 		- 1 Enquire
067 14AC497CP
COVER - UPPER DOOR HINGE - RH 		- 1 Enquire
069 14AC542CP
TAPE - STONE PROTECTION - BODYSIDE LOWER - LH 		$63.08 1
070 14AC543CP
TAPE - STONE PROTECTION - BODYSIDE LOWER - RH 		$63.08 1
071 14AB779SP
ASSY FENDER RR RH SPIDER 		$3,896.81 1
072 14AB775SP
ASSY FENDER RR LH SPIDER 		$3,896.81 1
073 14A3250SP
ASSY MLDG CHEATER PANEL SPIDER - RH 		$63.08 1
074 14A3252SP
ASSY MLDG CHEATER PANEL SPIDER - LH 		$67.94 1
075 14AA951SP
CHEATER PANEL SHIM 1MM 		$6.00 1
076 14AA952SP
CHEATER PANEL SHIM 2MM 		$6.57 1
077 14AB452SP
ASSY RR AIRBRAKE HEATSHIELD SPIDER 		- 1 Enquire
082 14AC553CP
FINISHER - SIDE DUCT - LH 		- 1 Enquire
083 14AC554CP
FINISHER - SIDE DUCT - RH 		- 1 Enquire
084 14AD149CP
ASSY EXTN BODYSIDE RR LWR LH - REAR - LOWER - LH 		$194.14 1
085 14AD152CP
BODYSIDE EXTENSION - REAR - LOWER - RH 		$194.14 1
086 14AA636CP
BODYSIDE LOWER - LH 		- 1 Enquire
087 14AC625CP
BODYSIDE - LOWER - REAR - LH 		- 1 Enquire
088 14AC628CP
BODYSIDE - LOWER - REAR - RH 		- 1 Enquire
