7 - Closures - 7.11 - Convertible Roof

McLaren 720S Spider

Find Your Part

McLaren 720S Spider - 7 - CLOSURES - 7.11 - CONVERTIBLE ROOF

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AB345SP ROOF PANEL SEAL CARRIER - SEAL - LEFT $1,534.64 To Order
Photo Part No Description Price (each) Stock
14AB346SP ROOF PANEL SEAL CARRIER - SEAL - RIGHT $1,534.64 To Order
Photo Part No Description Price (each) Stock
11A4013SP RHT - Seal Kit - Back Light Upper Carrier $228.70 To Order
Photo Part No Description Price (each) Stock
14A3142SP RHT PIN LH - PIN - LEFT $290.51 To Order
Photo Part No Description Price (each) Stock
14A3143SP RHT PIN RH - PIN - RIGHT $290.51 To Order
Photo Part No Description Price (each) Stock
14AB591SP RHT LATCH $1,601.01 To Order
Photo Part No Description Price (each) Stock
14AB341SP DYNAMIC FLAP MECH - FLAP MECH - LEFT $857.66 To Order
Photo Part No Description Price (each) Stock
14AB342SP DYNAMIC FLAP MECH RH $800.48 To Order
Photo Part No Description Price (each) Stock
14AB359SP TC HINGE - TONNEAU HINGE - LH AND RH $457.42 To Order
Photo Part No Description Price (each) Stock
14AB348SP ROOF PANEL BASE - PANEL BASE - ROOF $14,706.20 To Order
28AA077SP ASSY PNL ROOF GLAZED $20,277.89 To Order
Photo Part No Description Price (each) Stock
16AB248SP SPD CONTROLLER - ELECTROCHROMIC - POWER UNIT $1,620.05 To Order
Photo Part No Description Price (each) Stock
14AB356SP HEADLINER GLAZED - HEADLINER - GLAZED $2,439.27 To Order
14AA422SP RHT HEADLINER GLAZED Enquire To Order
28AA074SP RHT HEADLINER $3,565.21 To Order
Photo Part No Description Price (each) Stock
14AA663SP RHT RR MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14AA664SP RHT FRT LH MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14AA665SP RHT FRT RH MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
00RB201 CLAMP - SPRING BAND - 21X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB204 CLAMP - SPRING BAND - 27X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA621 SCREW - M6X24 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
14AB210SP TC KINEMATIC RH - KINEMATIC - RIGHT $2,420.55 To Order
Photo Part No Description Price (each) Stock
14AB209SP TC KINEMATIC LH - KINEMATIC - LEFT $2,439.61 To Order
Photo Part No Description Price (each) Stock
14AB274SP TC STRIKER LH - STRIKER - LEFT $781.43 To Order
Photo Part No Description Price (each) Stock
14AB275SP TC STRIKER RH - STRIKER - RIGHT $724.25 To Order
Photo Part No Description Price (each) Stock
14A1222SP HOSE TONNEAU EXT DRAIN SPIDER Enquire To Order
Photo Part No Description Price (each) Stock
14A1223SP HOSE TONNEAU EXT DRAIN SPIDER Enquire To Order
Photo Part No Description Price (each) Stock
11A4037SP RHT - Back Light Glass Assy $1,029.21 To Order
Photo Part No Description Price (each) Stock
11A4038SP RHT - Backlight Slider Carrier Kit $16.29 To Order
Photo Part No Description Price (each) Stock
11A4039SP Motor - RHT - Back Light E-drive $247.75 To Order
Photo Part No Description Price (each) Stock
14AB215SP SEAL - SPIDER $1,524.75 To Order
Photo Part No Description Price (each) Stock
14AB658SP ASSY-RHT BACKLIGHT MODULE KINEMATIC $2,649.27 To Order
Photo Part No Description Price (each) Stock
14AB657SP ASSY-RHT BACKLIGHT MODULE $6,079.99 To Order
View All

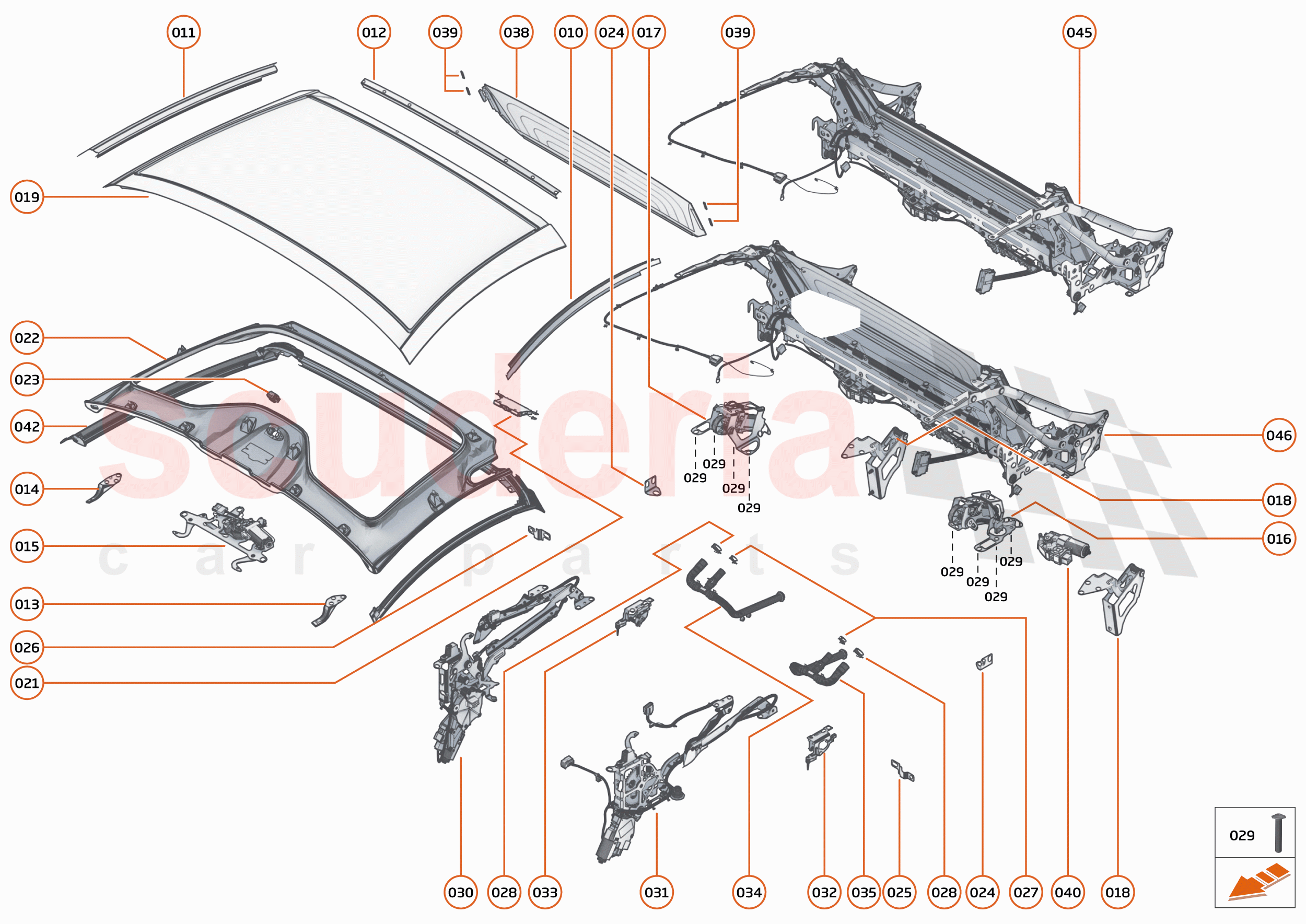

7 - CLOSURES - 7.11 - CONVERTIBLE ROOF of McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AB345SP
ROOF PANEL SEAL CARRIER - SEAL - LEFT 		$1,534.64 1
011 14AB346SP
ROOF PANEL SEAL CARRIER - SEAL - RIGHT 		$1,534.64 1
012 11A4013SP
RHT - Seal Kit - Back Light Upper Carrier 		$228.70 1
013 14A3142SP
RHT PIN LH - PIN - LEFT 		$290.51 1
014 14A3143SP
RHT PIN RH - PIN - RIGHT 		$290.51 1
015 14AB591SP
RHT LATCH
RHT LATCH; 		$1,601.01 1
016 14AB341SP
DYNAMIC FLAP MECH - FLAP MECH - LEFT 		$857.66 1
017 14AB342SP
DYNAMIC FLAP MECH RH 		$800.48 1
018 14AB359SP
TC HINGE - TONNEAU HINGE - LH AND RH 		$457.42 2
019 14AB348SP
ROOF PANEL BASE - PANEL BASE - ROOF
ASSY ROOF; 		$14,706.20 1
019 28AA077SP
ASSY PNL ROOF GLAZED 		$20,277.89 1
021 16AB248SP
SPD CONTROLLER - ELECTROCHROMIC - POWER UNIT 		$1,620.05 1
022 14AB356SP
HEADLINER GLAZED - HEADLINER - GLAZED 		$2,439.27 1
022 14AA422SP
RHT HEADLINER GLAZED 		- 1 Enquire
022 28AA074SP
RHT HEADLINER 		$3,565.21 1
023 14MA109SP
RHT ELECTROCHROMIC SWITCH 		$268.54 1
024 14AA663SP
RHT RR MOUNTING BRACKET 		- 2 Enquire
025 14AA664SP
RHT FRT LH MOUNTING BRACKET 		- 1 Enquire
026 14AA665SP
RHT FRT RH MOUNTING BRACKET 		- 1 Enquire
027 00RB201
CLAMP - SPRING BAND - 21X12 		- 2 Enquire
028 00RB204
CLAMP - SPRING BAND - 27X12 		- 2 Enquire
029 00RA621
SCREW - M6X24 - BUTTON 		- 4 Enquire
030 14AB210SP
TC KINEMATIC RH - KINEMATIC - RIGHT 		$2,420.55 1
031 14AB209SP
TC KINEMATIC LH - KINEMATIC - LEFT 		$2,439.61 1
032 14AB274SP
TC STRIKER LH - STRIKER - LEFT 		$781.43 1
033 14AB275SP
TC STRIKER RH - STRIKER - RIGHT 		$724.25 1
034 14A1222SP
HOSE TONNEAU EXT DRAIN SPIDER 		- 1 Enquire
035 14A1223SP
HOSE TONNEAU EXT DRAIN SPIDER 		- 1 Enquire
038 11A4037SP
RHT - Back Light Glass Assy 		$1,029.21 1
039 11A4038SP
RHT - Backlight Slider Carrier Kit 		$16.29 1
040 11A4039SP
Motor - RHT - Back Light E-drive 		$247.75 1
042 14AB215SP
SEAL - SPIDER 		$1,524.75 1
043 14AB590SP
ASSY - RETRACTABLE HARDTOP - GLAZED 		$53,063.64 1
044 14AB381SP
RHT BOLLHOFF COG TOOL 		$138.60 1
045 14AB658SP
ASSY-RHT BACKLIGHT MODULE KINEMATIC 		$2,649.27 1
046 14AB657SP
ASSY-RHT BACKLIGHT MODULE 		$6,079.99 1
