McLaren 675LT Coupe - 17 - F2 - OIL SYSTEM - ENGINE - 17.1 - 01 - OIL SYSTEM - ENGINE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F0839CP Bolt - M8x40 - Engine - Shouldered $15.41 To Order
11F2577CP GRUB SCREW - OIL CHANNEL - ENGINE $9.64 To Order
Photo Part No Description Price (each) Stock
11F0430CP Spacer - Oil Tank $28.92 To Order
Photo Part No Description Price (each) Stock
11F0289CP AV MOUNT-WCAC 24 $24.11 To Order
Photo Part No Description Price (each) Stock
11F0146CP BRKT MOUNT-OIL TAN24 $81.47 To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11F0021CP Drain Plug - Oil Tank - M14 $33.77 To Order
Photo Part No Description Price (each) Stock
11F1119CP Oil Tank - Engine Enquire To Order
Photo Part No Description Price (each) Stock
00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
11M0369CP SENSOR - ENGINE OIL LEVEL/TEMPERATURE $364.27 To Order
Photo Part No Description Price (each) Stock
11F0429CP BRKT-SWIRL POT MOUNT $81.47 To Order
Photo Part No Description Price (each) Stock
11F2185RP Oil Filler Tube - 675LT $752.59 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11F2186RP Oil Filler Bowl - 675LT $106.12 To Order
Photo Part No Description Price (each) Stock
11F0895CP SEAL - OIL FILLER BOWL $62.70 To Order
Photo Part No Description Price (each) Stock
11F2634RP Cap - Engine - Oil Filler - Aluminium - 675LT $540.31 To Order
Photo Part No Description Price (each) Stock
11F0926CP HOSE DRAIN OIL FIL24R $96.46 To Order
Photo Part No Description Price (each) Stock
11F2162CP Pipe - Oil Feed - Oil Tank to Engine $559.61 To Order
Photo Part No Description Price (each) Stock
11F2163CP Pipe - Oil Return - Engine to Oil Tank $385.93 To Order
Photo Part No Description Price (each) Stock
11F0919CP O-ring - Hose - Oil Tank $28.92 To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB035 Cable Tie - Female - Dia 8-20 Enquire To Order
Photo Part No Description Price (each) Stock
11F0918CP O-ring - Hose - Oil Filler $16.39 To Order
Photo Part No Description Price (each) Stock
11M1179CP Link Harness - Sensor - Oil $162.95 To Order
Photo Part No Description Price (each) Stock
00RC042 Washer - Crush - Aluminium - 14x18x1.35 Enquire To Order
Photo Part No Description Price (each) Stock
11F2188RP Bracket - Oil Filler Bowl $43.40 To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
View All

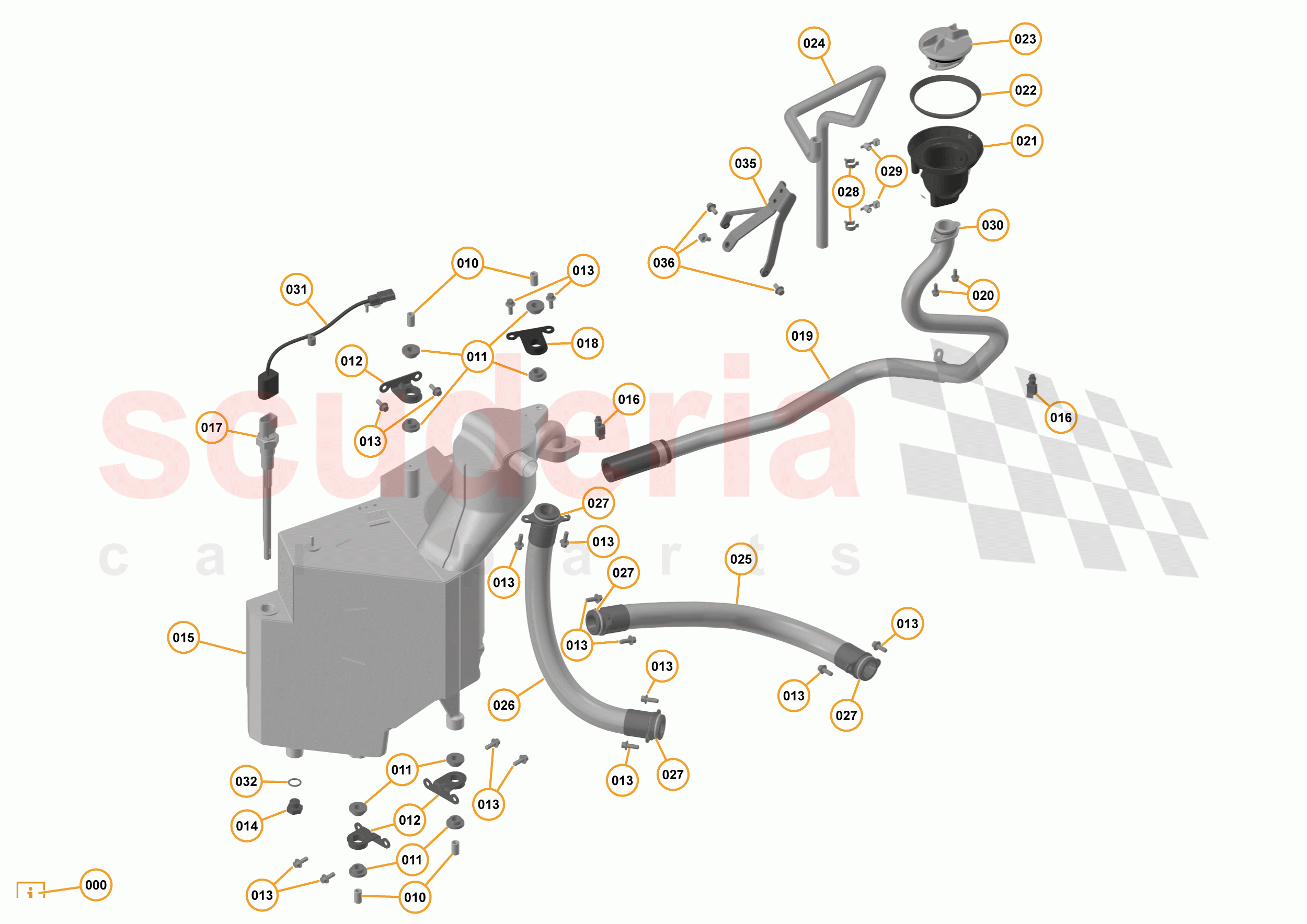

17 - F2 - OIL SYSTEM - ENGINE - 17.1 - 01 - OIL SYSTEM - ENGINE of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F0839CP
Bolt - M8x40 - Engine - Shouldered 		$15.41 1
000 11F2577CP
GRUB SCREW - OIL CHANNEL - ENGINE 		$9.64 1
010 11F0430CP
Spacer - Oil Tank 		$28.92 4
011 11F0289CP
AV MOUNT-WCAC 24 		$24.11 8
012 11F0146CP
BRKT MOUNT-OIL TAN24 		$81.47 3
013 00RA313
SCREW - M6X16 - HEX - SILVER 		- 14 Enquire
014 11F0021CP
Drain Plug - Oil Tank - M14 		$33.77 1
015 11F1119CP
Oil Tank - Engine
Superseded parts: 11F1119CP; 		- 1 Enquire
016 00RB053
HOSE CLAMP - 25-40MM - NORMA TORRO 		- 2 Enquire
017 11M0369CP
SENSOR - ENGINE OIL LEVEL/TEMPERATURE 		$364.27 1
018 11F0429CP
BRKT-SWIRL POT MOUNT 		$81.47 1
019 11F2185RP
Oil Filler Tube - 675LT 		$752.59 1
020 00RA064
BOLT - M5X12 - HEX 		- 2 Enquire
021 11F2186RP
Oil Filler Bowl - 675LT 		$106.12 1
022 11F0895CP
SEAL - OIL FILLER BOWL 		$62.70 1
023 11F2634RP
Cap - Engine - Oil Filler - Aluminium - 675LT 		$540.31 1
024 11F0926CP
HOSE DRAIN OIL FIL24R 		$96.46 1
025 11F2162CP
Pipe - Oil Feed - Oil Tank to Engine
Superseded parts: 11F0214CP; 		$559.61 1
026 11F2163CP
Pipe - Oil Return - Engine to Oil Tank
Superseded parts: 11F0213CP; 		$385.93 1
027 11F0919CP
O-ring - Hose - Oil Tank 		$28.92 4
028 00RB018
CLIP - 11-13MM - MALE 		- 2 Enquire
029 00RB035
Cable Tie - Female - Dia 8-20 		- 2 Enquire
030 11F0918CP
O-ring - Hose - Oil Filler 		$16.39 1
031 11M1179CP
Link Harness - Sensor - Oil 		$162.95 1
032 00RC042
Washer - Crush - Aluminium - 14x18x1.35 		- 1 Enquire
033 00RC043
WASHER - M6XOD25 		- 8 Enquire
034 00RA066
Bolt - M6x35 - Hex 		- 4 Enquire
035 11F2188RP
Bracket - Oil Filler Bowl 		$43.40 1
036 00RX003
BOLT - M6X1X12 - HEX 		- 3 Enquire
