16 - F1 - Power Unit - 16.10 - 01 - Power Unit - Crank Position + Transmission Studs

McLaren 675LT Coupe

Find Your Part

McLaren 675LT Coupe - 16 - F1 - POWER UNIT - 16.10 - 01 - POWER UNIT - CRANK POSITION + TRANSMISSION STUDS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F0799CP ENGINE BED PLATE PLUG & WASHER $24.17 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.62 To Order
Photo Part No Description Price (each) Stock
11F2191CP SENSOR - ENGINE - CRANK POSITION $57.65 To Order
Photo Part No Description Price (each) Stock
11F0798CP Stud Kit - Engine to Transmission $28.99 To Order
Photo Part No Description Price (each) Stock
11F0800CP Over Pressure - Oil Relief Valve - Engine - Assy $106.39 To Order
Photo Part No Description Price (each) Stock
11F2209CP CRANK TIMING PLUG - ENGINE - INC. O-RING $12.55 To Order
Photo Part No Description Price (each) Stock
11F1018CP Seal - Clutch Cooler Pipe Connection $28.99 To Order
Photo Part No Description Price (each) Stock
11F2577CP GRUB SCREW - OIL CHANNEL - ENGINE $9.67 To Order
Photo Part No Description Price (each) Stock
11F1190CP BOLT- LADDERFRAME - M12X115 $14.49 To Order
11F1189CP BOLT- LADDERFRAME- M10X110 $11.58 To Order
View All

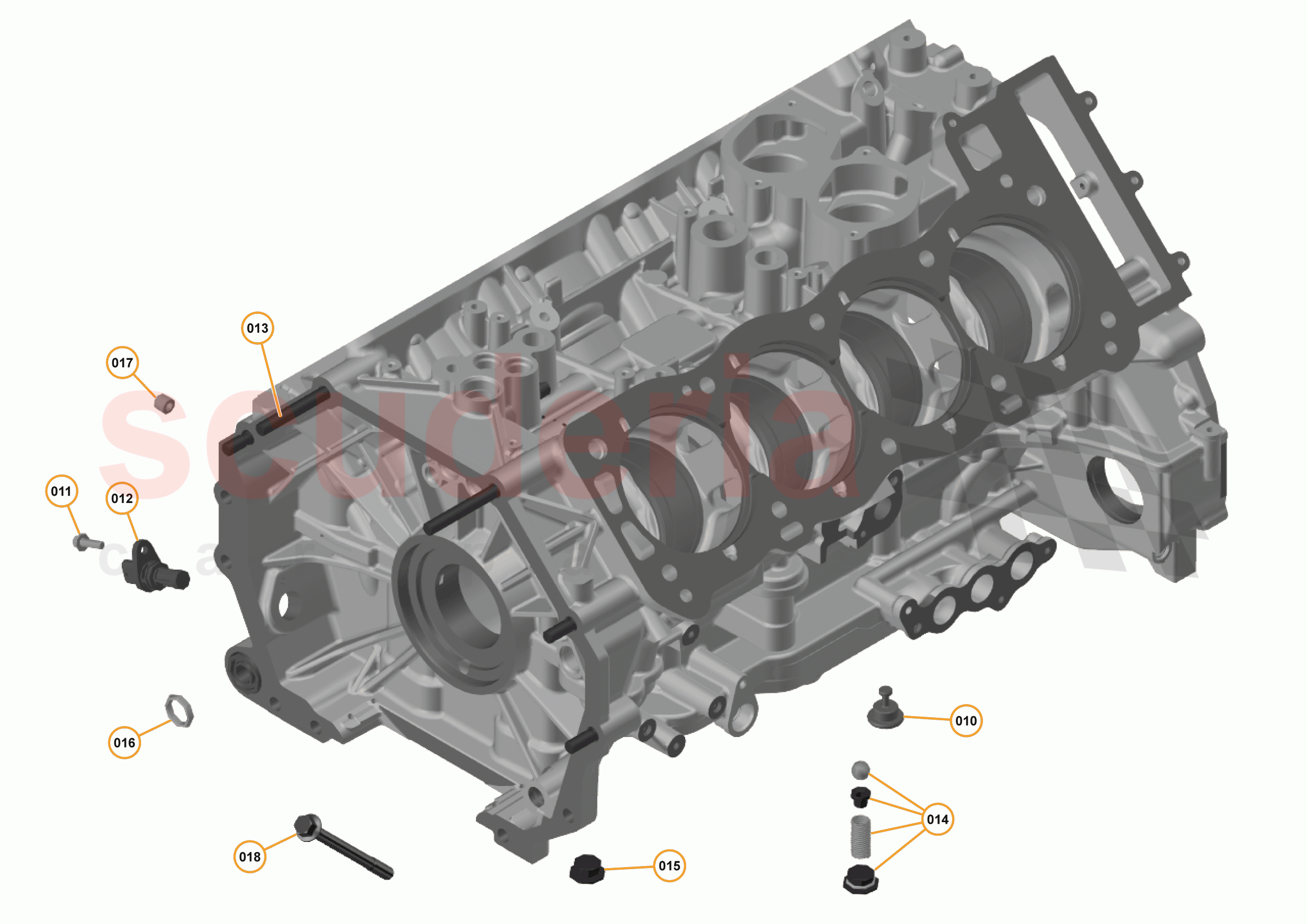

16 - F1 - POWER UNIT - 16.10 - 01 - POWER UNIT - CRANK POSITION + TRANSMISSION STUDS of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F0799CP
ENGINE BED PLATE PLUG & WASHER 		$24.17 1
011 11F1793CP
BOLT - M6X20 - HEX 		$10.62 1
012 11F2191CP
SENSOR - ENGINE - CRANK POSITION 		$57.65 1
013 11F0798CP
Stud Kit - Engine to Transmission 		$28.99 1
014 11F0800CP
Over Pressure - Oil Relief Valve - Engine - Assy 		$106.39 1
015 11F2209CP
CRANK TIMING PLUG - ENGINE - INC. O-RING 		$12.55 1
016 11F1018CP
Seal - Clutch Cooler Pipe Connection 		$28.99 1
017 11F2577CP
GRUB SCREW - OIL CHANNEL - ENGINE 		$9.67 1
018 11F1190CP
BOLT- LADDERFRAME - M12X115 		$14.49 1
018 11F1189CP
BOLT- LADDERFRAME- M10X110 		$11.58 1
019 11F1193CP
WASHER: SEALING M10 		$11.58 1
019 11F1194CP
WASHER: SEALING M12 		$11.58 1
