16 - F1 - Power Unit - 16.14 - 01 - Power Unit - Breather Assembly

McLaren 675LT Coupe

Find Your Part

McLaren 675LT Coupe - 16 - F1 - POWER UNIT - 16.14 - 01 - POWER UNIT - BREATHER ASSEMBLY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1777CP BOLT - M6X40 - HEX $4.42 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0991CP Bracket - Support - Cam Cover - Engine $193.17 To Order
Photo Part No Description Price (each) Stock
13F0463CP BREATHER ASSY - ENGINE $1,736.74 To Order
Photo Part No Description Price (each) Stock
11F1015CP O-ring - Engine Breather - Cam Cover Connector Enquire To Order
Photo Part No Description Price (each) Stock
11F1859CP OETIKER CLAMP - 24.1MM $12.53 To Order
Photo Part No Description Price (each) Stock
11F2008CP HOSE - BREATHER SYSTEM - INLET MANIFOLD - ENGINE $309.09 To Order
Photo Part No Description Price (each) Stock
13F0858CP FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE $77.26 To Order
Photo Part No Description Price (each) Stock
11F1007CP Oetiker Clip - Engine - 19.8 $7.72 To Order
Photo Part No Description Price (each) Stock
13F0638CP HOSE ASSY - BREATHER TO TURBOCHARGER - ENGINE $33.80 To Order
Photo Part No Description Price (each) Stock
11F0833CP Bolt - M6x25 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
00RB019 CLIP - 90DEG - FEMALE - 10-12MM Enquire To Order
Photo Part No Description Price (each) Stock
00RB094 OETIKER CLIP - 21.0 Enquire To Order
Photo Part No Description Price (each) Stock
11F2784CP VENTURI PURGE HOSE - FUEL $231.80 To Order
Photo Part No Description Price (each) Stock
00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Enquire To Order
Photo Part No Description Price (each) Stock
00RB034 CLIP - 14-15MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB032 CLIP - 13-14MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
11F1681CP BRACKET - PCV - INC CLIPS $28.95 To Order
Photo Part No Description Price (each) Stock
12F0710CP CLIP - ONE WAY - RAYMOND $24.14 To Order
View All

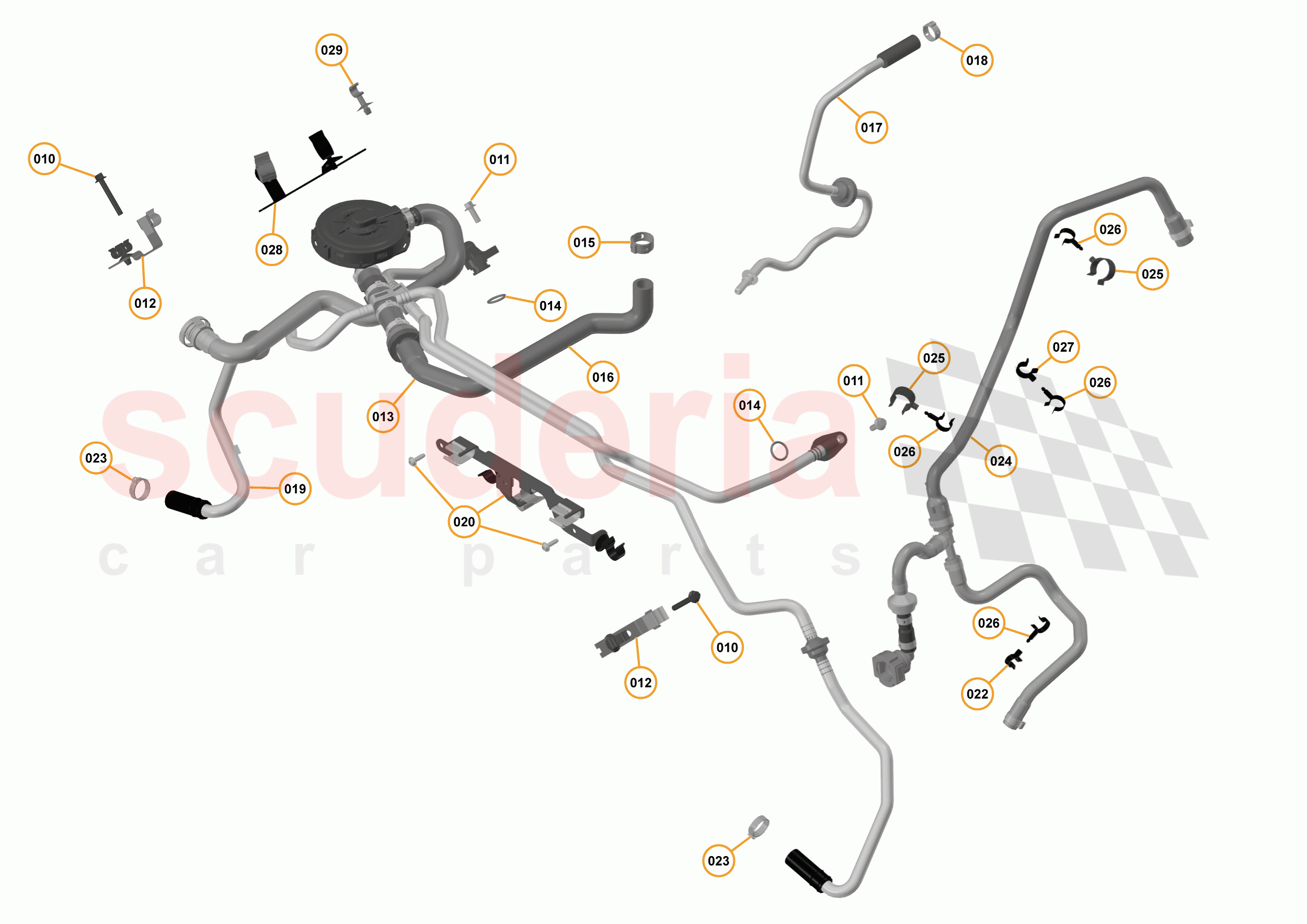

16 - F1 - POWER UNIT - 16.14 - 01 - POWER UNIT - BREATHER ASSEMBLY of McLaren McLaren 675LT Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1777CP
BOLT - M6X40 - HEX 		$4.42 1
011 11F0822CP
Bolt - M6x16 - Engine 		- 1 Enquire
012 11F0991CP
Bracket - Support - Cam Cover - Engine 		$193.17 1
013 13F0463CP
BREATHER ASSY - ENGINE 		$1,736.74 1
014 11F1015CP
O-ring - Engine Breather - Cam Cover Connector 		- 2 Enquire
015 11F1859CP
OETIKER CLAMP - 24.1MM 		$12.53 1
016 11F2008CP
HOSE - BREATHER SYSTEM - INLET MANIFOLD - ENGINE 		$309.09 1
017 13F0858CP
FUEL PURGE ASSEMBLY - INLET MANIFOLD - ENGINE 		$77.26 1
018 11F1007CP
Oetiker Clip - Engine - 19.8 		$7.72 1
019 13F0638CP
HOSE ASSY - BREATHER TO TURBOCHARGER - ENGINE 		$33.80 1
020 11F0833CP
Bolt - M6x25 - Engine 		- 1 Enquire
021 12F0722CP
Bracket - Front Intake Check Valve 		$106.24 1
022 00RB019
CLIP - 90DEG - FEMALE - 10-12MM 		- 1 Enquire
023 00RB094
OETIKER CLIP - 21.0 		- 2 Enquire
024 11F2784CP
VENTURI PURGE HOSE - FUEL 		$231.80 1
025 00RB120
CLIP - 90 DEGREE - FEMALE - 20-22 		- 2 Enquire
026 00RB034
CLIP - 14-15MM - MALE 		- 4 Enquire
027 00RB032
CLIP - 13-14MM - FEMALE 		- 1 Enquire
028 11F1681CP
BRACKET - PCV - INC CLIPS 		$28.95 1
029 12F0710CP
CLIP - ONE WAY - RAYMOND 		$24.14 1
