McLaren 600LT Spider - 34 - ENGINE - 34.12 - ENGINE WATER PUMP & WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.58 To Order
Photo Part No Description Price (each) Stock
11F1468CP Hose Assy - Engine - Degas - MY2015 $125.22 To Order
Photo Part No Description Price (each) Stock
11F1674CP T PIECE - DEGAS $16.36 To Order
Photo Part No Description Price (each) Stock
11F1954CP O-RING - 16-0X2-0 $5.38 To Order
Photo Part No Description Price (each) Stock
28FA063CP WATER PUMP $1,627.27 To Order
Photo Part No Description Price (each) Stock
13F0761CP TURBO - COOLANT RETURN - ADAPTER - ASSEMBLY $229.72 To Order
Photo Part No Description Price (each) Stock
13F0762CP BOLT - HOLLOW - M12 $38.52 To Order
Photo Part No Description Price (each) Stock
13F0866CP COOLANT HOSE - FEED - CLUTCH COOLER $124.43 To Order
Photo Part No Description Price (each) Stock
13F0901CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH $179.90 To Order
13F0901CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH $179.90 To Order
Photo Part No Description Price (each) Stock
13F0902CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH $67.42 To Order
Photo Part No Description Price (each) Stock
13F0903CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH $57.78 To Order
13F0903CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH $57.78 To Order
Photo Part No Description Price (each) Stock
13F0904CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH $62.60 To Order
13F0904CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH $62.60 To Order
Photo Part No Description Price (each) Stock
00RB091 Oetiker Clip - 18.5 Enquire To Order
Photo Part No Description Price (each) Stock
11F0981CP P-Clip - Clutch Cooler Hose - Engine $7.88 To Order
Photo Part No Description Price (each) Stock
11F1784CP BOLT - M6X80 - HEX $19.25 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $12.50 To Order
Photo Part No Description Price (each) Stock
11F0802CP Heater Return Stub - Engine - Water Pump $125.22 To Order
Photo Part No Description Price (each) Stock
11F1131CP Banjo Washer - Turbo Oil Feed $6.14 To Order
Photo Part No Description Price (each) Stock
11F1783CP BOLT - M8X30 - HEX $13.47 To Order
Photo Part No Description Price (each) Stock
13FA050CP THERMOSTAT AND HOUSING-ENGINE $250.48 To Order
Photo Part No Description Price (each) Stock
11F0686CP ENGINE WATER PUMP GASKET $33.72 To Order
Photo Part No Description Price (each) Stock
11F2434CP GASKET SERVICE COVER WATER PUMP $15.38 IN STOCK
Photo Part No Description Price (each) Stock
11F1012CP Oetiker Clip - Engine - 27.1 $7.70 To Order
Photo Part No Description Price (each) Stock
13F0831CP ASSY PIPE TURBOCHARGER WATER RETURN - UPPER RH Enquire To Order
Photo Part No Description Price (each) Stock
11F1021CP RADIATOR - INBOARD LH $250.48 To Order
Photo Part No Description Price (each) Stock
11FA039CP RADIATOR - INBOARD RH $250.48 To Order
Photo Part No Description Price (each) Stock
11F1859CP OETIKER CLAMP - 24.1MM $12.50 To Order
Photo Part No Description Price (each) Stock
11F2433CP COVER - WATER PUMP - ENGINE $24.07 To Order
Photo Part No Description Price (each) Stock
13F0828CP ASSY PIPE STUB TURBOCHARGER WATER FEED - RH $52.96 To Order
Photo Part No Description Price (each) Stock
13F0829CP ASSY PIPE STUB TURBO WTR FEED LH $38.31 To Order
View All

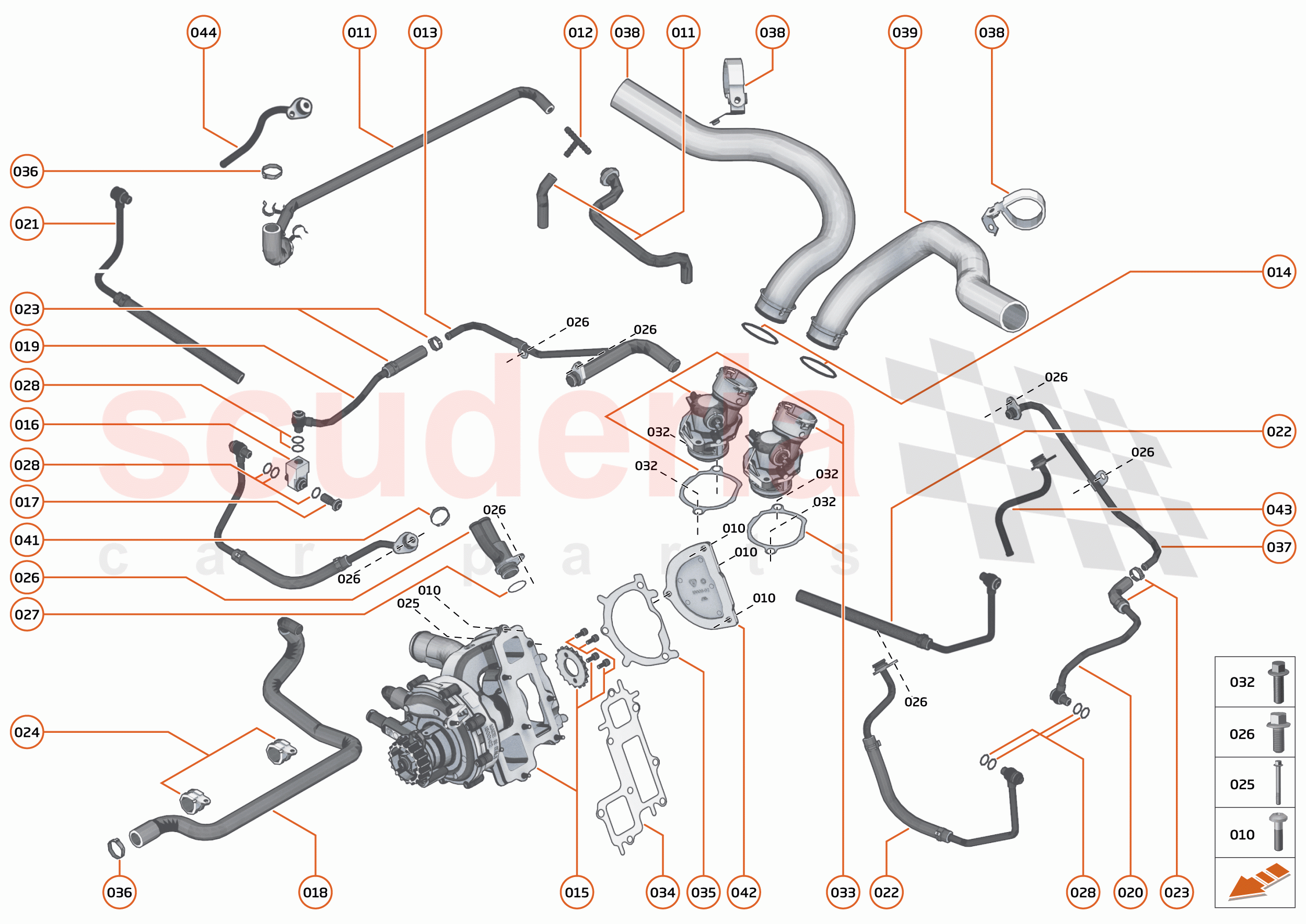

34 - ENGINE - 34.12 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1793CP
BOLT - M6X20 - HEX 		$10.58 4
011 11F1468CP
Hose Assy - Engine - Degas - MY2015 		$125.22 1
012 11F1674CP
T PIECE - DEGAS 		$16.36 1
013 11F2167CP
Pipe - Heater Feed Stub 		$91.51 1
014 11F1954CP
O-RING - 16-0X2-0 		$5.38 2
015 28FA063CP
WATER PUMP 		$1,627.27 1
016 13F0761CP
TURBO - COOLANT RETURN - ADAPTER - ASSEMBLY 		$229.72 1
017 13F0762CP
BOLT - HOLLOW - M12 		$38.52 1
018 13F0866CP
COOLANT HOSE - FEED - CLUTCH COOLER 		$124.43 1
019 13F0901CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH 		$179.90 1
019 13F0901CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH 		$179.90 1
020 13F0902CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH 		$67.42 1
021 13F0903CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH 		$57.78 1
021 13F0903CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH 		$57.78 1
022 13F0904CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH 		$62.60 1
022 13F0904CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH 		$62.60 1
023 00RB091
Oetiker Clip - 18.5 		- 4 Enquire
024 11F0981CP
P-Clip - Clutch Cooler Hose - Engine 		$7.88 2
025 11F1784CP
BOLT - M6X80 - HEX 		$19.25 1
026 11F1792CP
BOLT - M6X16 - ENGINE 		$12.50 7
027 11F0802CP
Heater Return Stub - Engine - Water Pump 		$125.22 1
028 11F1131CP
Banjo Washer - Turbo Oil Feed 		$6.14 9
031 11F0704CP
ENGINE COOLANT TOP24OSE SUPPOR 		$28.87 1
032 11F1783CP
BOLT - M8X30 - HEX 		$13.47 1
033 13FA050CP
THERMOSTAT AND HOUSING-ENGINE
Superseded parts: 11F2395CP; 		$250.48 1
034 11F0686CP
ENGINE WATER PUMP GASKET 		$33.72 1
035 11F2434CP
GASKET SERVICE COVER WATER PUMP
IN STOCK 		$15.38 1
036 11F1012CP
Oetiker Clip - Engine - 27.1 		$7.70 2
037 13F0831CP
ASSY PIPE TURBOCHARGER WATER RETURN - UPPER RH 		- 1 Enquire
038 11F1021CP
RADIATOR - INBOARD LH 		$250.48 1
039 11FA039CP
RADIATOR - INBOARD RH 		$250.48 1
041 11F1859CP
OETIKER CLAMP - 24.1MM 		$12.50 1
042 11F2433CP
COVER - WATER PUMP - ENGINE 		$24.07 1
043 13F0828CP
ASSY PIPE STUB TURBOCHARGER WATER FEED - RH 		$52.96 1
044 13F0829CP
ASSY PIPE STUB TURBO WTR FEED LH 		$38.31 1
