34 - Engine - 34.17 - Secondary Air System

McLaren 600LT Spider

Find Your Part

McLaren 600LT Spider - 34 - ENGINE - 34.17 - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
12F0750CP PUMP - SECONDARY AIR $368.50 To Order
Photo Part No Description Price (each) Stock
00RB066 SWIVEL CLIP - 25-27MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB137 HOSE CLAMP - 28.6 - 706R - OETIKER Enquire To Order
Photo Part No Description Price (each) Stock
00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Enquire To Order
Photo Part No Description Price (each) Stock
00RL001 CABLE TIE - FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
13F0336CP HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH $145.46 To Order
Photo Part No Description Price (each) Stock
11F1785CP BOLT - HEX - M5X10 $6.56 To Order
Photo Part No Description Price (each) Stock
11F1862CP OETIKER CLIP - 26.9 - 30.1MM $7.75 To Order
Photo Part No Description Price (each) Stock
13F0524CP HOSE - SECONDARY AIR INTAKE - RH $106.66 To Order
Photo Part No Description Price (each) Stock
13F0335CP HOSE - SECONDARY AIR INJECTION - INC SENSOR - LH $145.46 To Order
Photo Part No Description Price (each) Stock
13F0533CP HOSE - SECONDARY AIR INTAKE - LH $106.66 To Order
Photo Part No Description Price (each) Stock
11F0821CP Sensor - Engine Secondary Air - Pressure inc. Bolt $134.88 To Order
Photo Part No Description Price (each) Stock
13F0360CP SECONDARY AIR VALVE - ENGINE - INC GASKET $329.71 To Order
Photo Part No Description Price (each) Stock
11F1970CP GASKET - SECONDARY AIR - INJECTION PIPE TO ENGINE $14.53 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $12.58 To Order
Photo Part No Description Price (each) Stock
13F0590CP PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - RH $126.05 To Order
13F0591CP PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - LH $126.05 To Order
View All

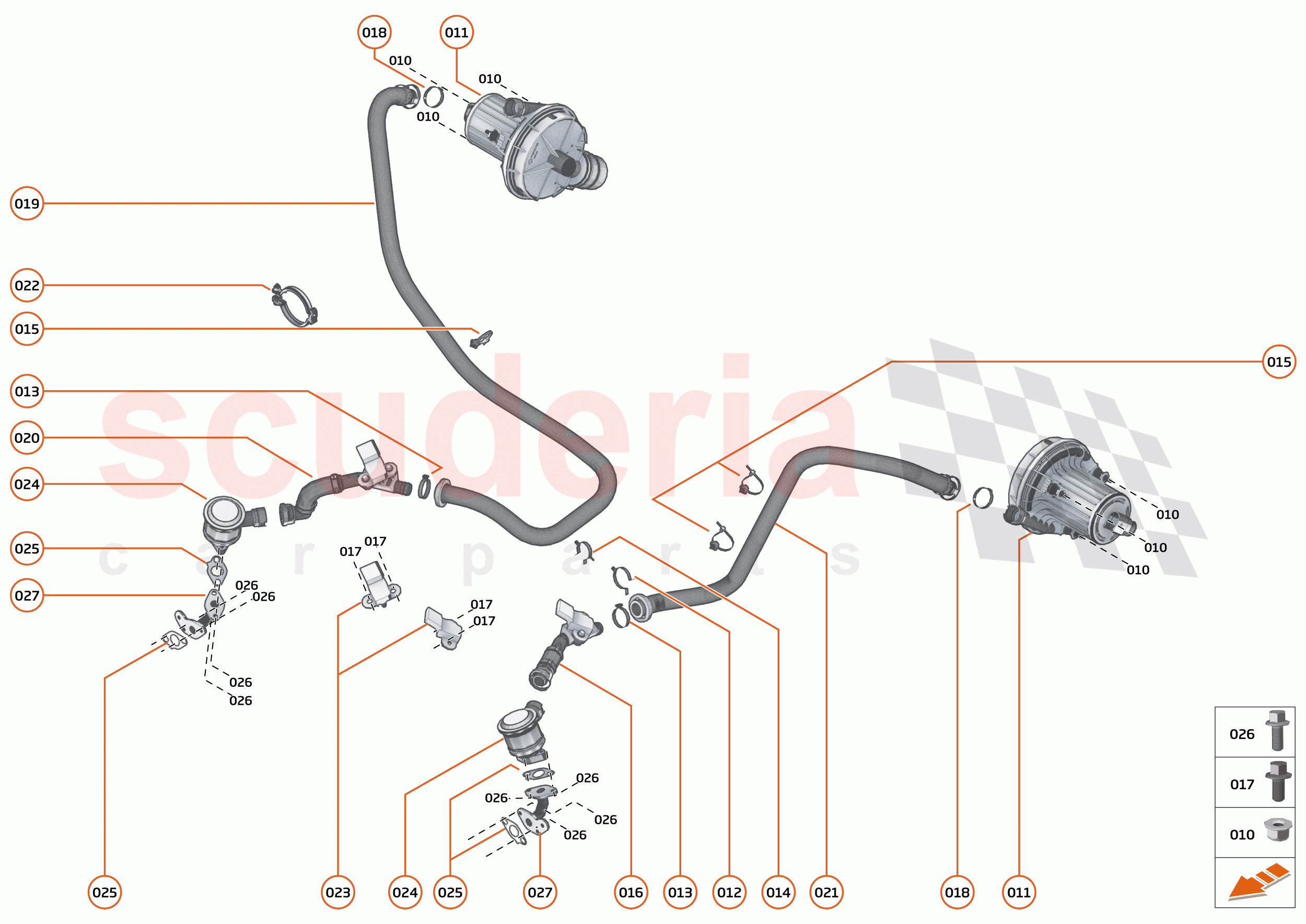

34 - ENGINE - 34.17 - SECONDARY AIR SYSTEM of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 6 Enquire
011 12F0750CP
PUMP - SECONDARY AIR 		$368.50 2
012 00RB066
SWIVEL CLIP - 25-27MM - FEMALE 		- 1 Enquire
013 00RB137
HOSE CLAMP - 28.6 - 706R - OETIKER 		- 2 Enquire
014 00RG028
CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 		- 1 Enquire
015 00RL001
CABLE TIE - FIRTREE BASE 		- 3 Enquire
016 13F0336CP
HOSE - SECONDARY AIR INJECTION - INC SENSOR - RH 		$145.46 1
017 11F1785CP
BOLT - HEX - M5X10 		$6.56 4
018 11F1862CP
OETIKER CLIP - 26.9 - 30.1MM 		$7.75 2
019 13F0524CP
HOSE - SECONDARY AIR INTAKE - RH 		$106.66 1
020 13F0335CP
HOSE - SECONDARY AIR INJECTION - INC SENSOR - LH 		$145.46 1
021 13F0533CP
HOSE - SECONDARY AIR INTAKE - LH 		$106.66 1
022 11F0821CP
Sensor - Engine Secondary Air - Pressure inc. Bolt 		$134.88 2
024 13F0360CP
SECONDARY AIR VALVE - ENGINE - INC GASKET 		$329.71 2
025 11F1970CP
GASKET - SECONDARY AIR - INJECTION PIPE TO ENGINE 		$14.53 4
026 11F1792CP
BOLT - M6X16 - ENGINE 		$12.58 8
027 13F0590CP
PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - RH 		$126.05 1
027 13F0591CP
PIPE - SECONDARY AIR INJECTION VALVE - CYLINDER HEAD - ENGINE - LH 		$126.05 1
028 13FA153RP
CLAMP - G-COUPLING - M6X58DIA 		$33.94 1
