34 - Engine - 34.9 - Electrical System

McLaren 600LT Spider

Find Your Part

McLaren 600LT Spider - 34 - ENGINE - 34.9 - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F2191CP SENSOR - ENGINE - CRANK POSITION $57.60 To Order
Photo Part No Description Price (each) Stock
13F0768CP HARNESS - INTAKE $439.21 To Order
Photo Part No Description Price (each) Stock
13F0769CP HARNESS - ENGINE LINK - INJECTORS - RH $303.98 To Order
Photo Part No Description Price (each) Stock
13F0770CP HARNESS - ENGINE LINK - INJECTORS - LH $303.98 To Order
Photo Part No Description Price (each) Stock
13FA020SP WIRING HARNESS - ENGINE $2,880.25 To Order
Photo Part No Description Price (each) Stock
13FA018SP HARNESS - VEE LINK - LH $439.21 To Order
Photo Part No Description Price (each) Stock
13FA019SP HARNESS - VEE KINK - RH $439.21 To Order
Photo Part No Description Price (each) Stock
11F1964RP BLANKING - CONNECTOR $16.41 To Order
Photo Part No Description Price (each) Stock
11F2158RP BRACKET - MAIN ENGINE HARNESS - NON A/C - 675LT $124.22 To Order
Photo Part No Description Price (each) Stock
11F1792CP BOLT - M6X16 - ENGINE $12.54 To Order
Photo Part No Description Price (each) Stock
11F1783CP BOLT - M8X30 - HEX $13.51 To Order
Photo Part No Description Price (each) Stock
11F2791CP Sensor - Engine - Knock - Coated $163.23 To Order
Photo Part No Description Price (each) Stock
11F1893CP PLUG- SPARK- NGK T20231A HR8 $42.95 IN STOCK
Photo Part No Description Price (each) Stock
11F1892CP COIL- IGNITION $231.94 IN STOCK
Photo Part No Description Price (each) Stock
11F1035CP Repair Flylead - Ignition Coil $72.00 To Order
Photo Part No Description Price (each) Stock
11F2418CP SENSOR - HEAD TEMPERATURE $91.22 To Order
Photo Part No Description Price (each) Stock
13M1178CP SENSOR - ENGINE - AMBIENT AIR TEMPERATURE $134.42 To Order
View All

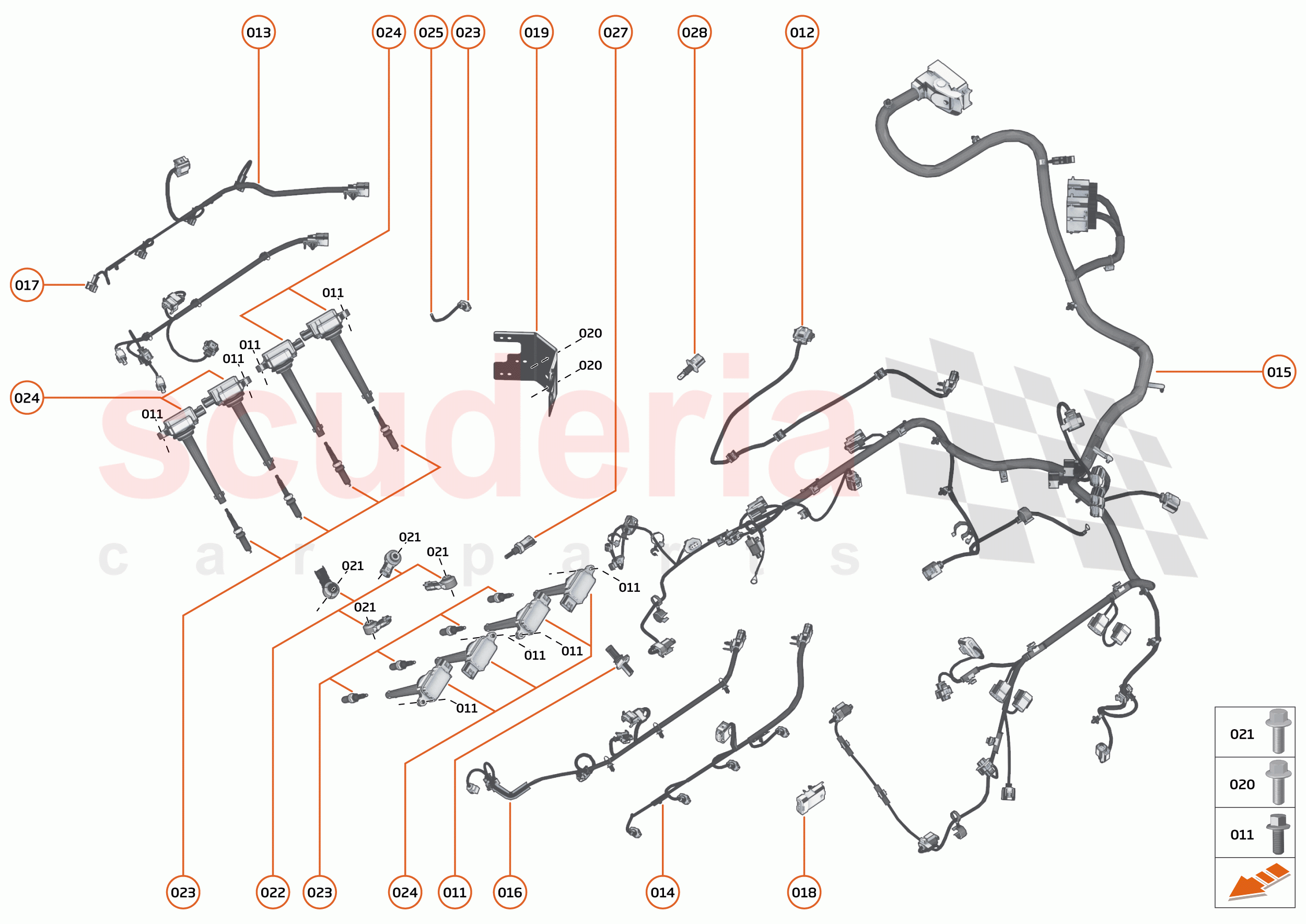

34 - ENGINE - 34.9 - ELECTRICAL SYSTEM of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11F1793CP
BOLT - M6X20 - HEX 		$10.62 8
011 11F2191CP
SENSOR - ENGINE - CRANK POSITION 		$57.60 1
012 13F0768CP
HARNESS - INTAKE 		$439.21 1
013 13F0769CP
HARNESS - ENGINE LINK - INJECTORS - RH 		$303.98 1
014 13F0770CP
HARNESS - ENGINE LINK - INJECTORS - LH 		$303.98 1
015 13FA020SP
WIRING HARNESS - ENGINE 		$2,880.25 1
016 13FA018SP
HARNESS - VEE LINK - LH 		$439.21 1
017 13FA019SP
HARNESS - VEE KINK - RH 		$439.21 1
018 11F1964RP
BLANKING - CONNECTOR 		$16.41 1
019 11F2158RP
BRACKET - MAIN ENGINE HARNESS - NON A/C - 675LT 		$124.22 1
020 11F1792CP
BOLT - M6X16 - ENGINE 		$12.54 2
021 11F1783CP
BOLT - M8X30 - HEX 		$13.51 4
022 11F2791CP
Sensor - Engine - Knock - Coated 		$163.23 4
023 11F1893CP
PLUG- SPARK- NGK T20231A HR8
IN STOCK 		$42.95 8
024 11F1892CP
COIL- IGNITION
IN STOCK 		$231.94 8
025 11F1035CP
Repair Flylead - Ignition Coil 		$72.00 1
026 11F1019CP
CONNCTR HOUSING-IG24COIL-ENGIN 		$57.60 1
027 11F2418CP
SENSOR - HEAD TEMPERATURE 		$91.22 1
028 13M1178CP
SENSOR - ENGINE - AMBIENT AIR TEMPERATURE 		$134.42 1
