6 - Closures - 6.5 - Doors Structure

McLaren 600LT Spider

Find Your Part

McLaren 600LT Spider - 6 - CLOSURES - 6.5 - DOORS STRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13AB066CP DOOR ASSY - RH $5,413.76 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
00RC070 Washer - Form A - M8 Enquire To Order
Photo Part No Description Price (each) Stock
13AA858CP APPLIQUE - DOOR - RH Enquire To Order
13AA855CP APPLIQUE - DOOR - LH Enquire To Order
Photo Part No Description Price (each) Stock
13A4996CP DECAL PANEL - DOOR OUTER - RH - CARBON $2,511.91 To Order
13A5010CP DECAL PANEL - DOOR OUTER - LH - CARBON $2,473.24 To Order
13A5926CP DECAL PANEL - DOOR OUTER - LH - CARBON $2,473.24 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA075 NUT - M8-8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
00RB167 CLIP - PANEL - DOOR SKIRT INNER Enquire To Order
Photo Part No Description Price (each) Stock
13A5859CP APPLIQUE FINISHER - DOOR - RH Enquire To Order
13A6337CP APPLIQUE FINISHER - DOOR - LH $729.50 To Order
Photo Part No Description Price (each) Stock
00RA544 BOLT - HEX HEAD - FLANGED - M8X100 Enquire To Order
Photo Part No Description Price (each) Stock
13AA431CP SHIM - DOOR WINGLET - 0.25MM $18.01 To Order
13AA431CP SHIM - DOOR WINGLET - 0.25MM $18.01 To Order
Photo Part No Description Price (each) Stock
13AA432CP SHIM - DOOR WINGLET - 0.6MM $17.76 To Order
13AA432CP SHIM - DOOR WINGLET - 0.6MM $17.76 To Order
Photo Part No Description Price (each) Stock
13AA439CP SHIM - DOOR WINGLET - 1.0MM $17.91 To Order
13AA439CP SHIM - DOOR WINGLET - 1.0MM $17.91 To Order
Photo Part No Description Price (each) Stock
00RA256 Screw - M4x8 - Button Enquire To Order
Photo Part No Description Price (each) Stock
00RA565 BOLT - HEX HEAD - FLANGE - M6X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13AB065CP DOOR ASSY - LH $5,413.76 To Order
Photo Part No Description Price (each) Stock
13AA460CP SHIM - SPACER $3.46 To Order
Photo Part No Description Price (each) Stock
13A2915CP BRACE - WINGLET - DOOR SIDE - LH $134.36 To Order
13A2914CP BRACE - WINGLET - DOOR SIDE - RH $134.36 To Order
Photo Part No Description Price (each) Stock
13A6566CP COVER SUPPORT - DOOR WINGLET - RH $38.37 To Order
13A6554CP COVER SUPPORT - DOOR WINGLET - LH $38.37 To Order
Photo Part No Description Price (each) Stock
13A4087CP SWITCH - DOOR RELEASE - PUSH BUTTON $95.98 To Order
Photo Part No Description Price (each) Stock
13A4121CP BRACE - WINGLET - TENDON SIDE $134.36 To Order
Photo Part No Description Price (each) Stock
13A4126CP MLDG DOOR SWITCH CARRIER $19.18 To Order
Photo Part No Description Price (each) Stock
13AA630CP FOAM - DOOR WINGLET - INNER $33.39 To Order
Photo Part No Description Price (each) Stock
13AB881RP CHIP PROTECTION - DOOR KIT $212.54 To Order
Photo Part No Description Price (each) Stock
13A6157CP INSERT COVER - WINGLET - DOOR - CARBON - RH $8,926.44 To Order
13A6156CP INSERT COVER - WINGLET - DOOR - CARBON - LH $8,926.44 To Order
View All

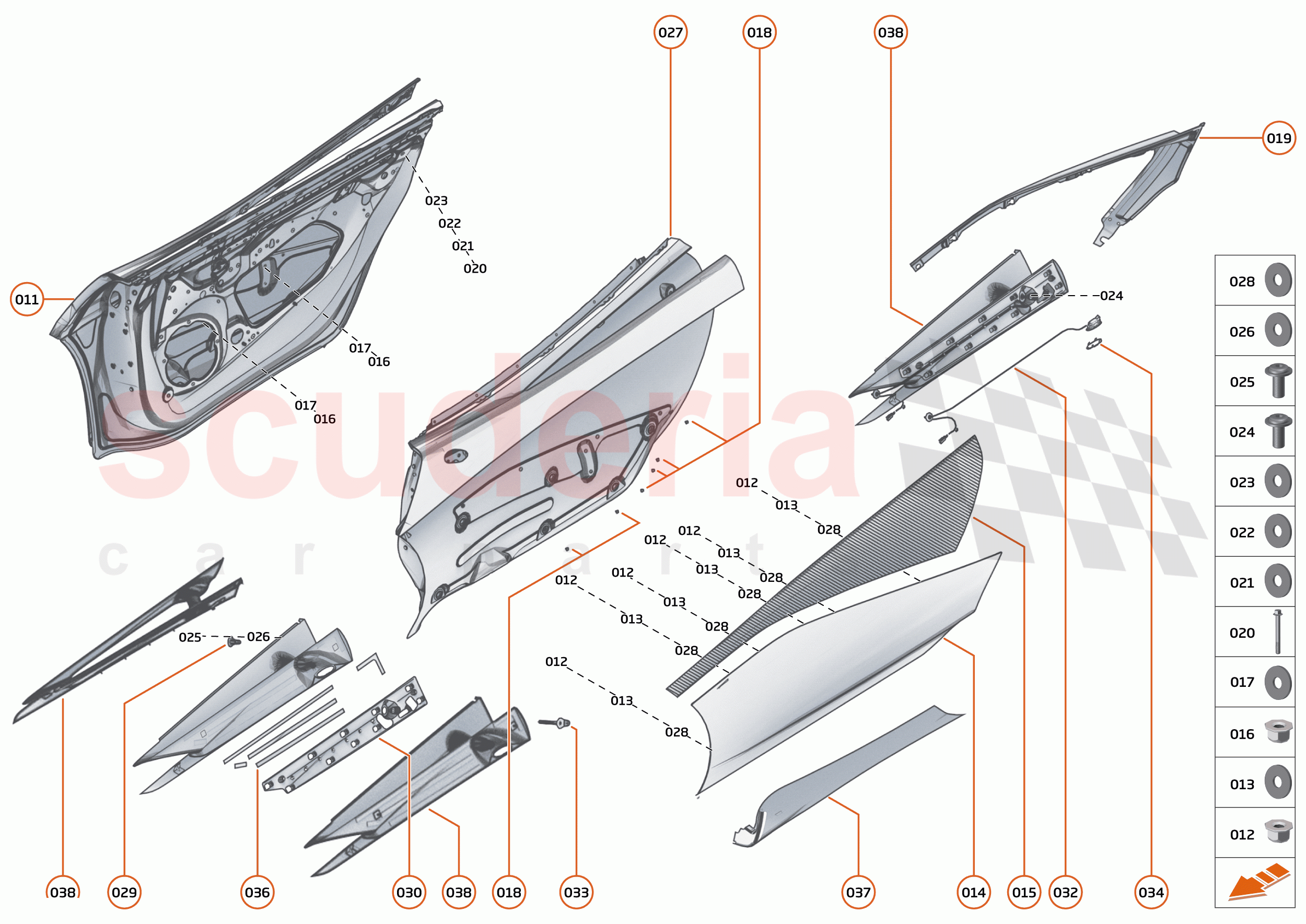

6 - CLOSURES - 6.5 - DOORS STRUCTURE of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
011 13AB066CP
DOOR ASSY - RH 		$5,413.76 1
012 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 6 Enquire
013 00RC070
Washer - Form A - M8 		- 6 Enquire
014 13AA858CP
APPLIQUE - DOOR - RH 		- 1 Enquire
014 13AA855CP
APPLIQUE - DOOR - LH 		- 1 Enquire
015 13A4996CP
DECAL PANEL - DOOR OUTER - RH - CARBON 		$2,511.91 1
015 13A5010CP
DECAL PANEL - DOOR OUTER - LH - CARBON 		$2,473.24 1
015 13A5926CP
DECAL PANEL - DOOR OUTER - LH - CARBON 		$2,473.24 1
015 13A5924CP
DECAL PANEL - DOOR OUTER - RH - CARBON 		$2,879.02 1
016 00RA075
NUT - M8-8 - HEX 		- 2 Enquire
017 00RC015
WASHER - M8X24X2 		- 2 Enquire
018 00RB167
CLIP - PANEL - DOOR SKIRT INNER 		- 5 Enquire
019 13A5859CP
APPLIQUE FINISHER - DOOR - RH 		- 1 Enquire
019 13A6337CP
APPLIQUE FINISHER - DOOR - LH 		$729.50 1
020 00RA544
BOLT - HEX HEAD - FLANGED - M8X100 		- 1 Enquire
021 13AA431CP
SHIM - DOOR WINGLET - 0.25MM 		$18.01 1
021 13AA431CP
SHIM - DOOR WINGLET - 0.25MM 		$18.01 1
022 13AA432CP
SHIM - DOOR WINGLET - 0.6MM 		$17.76 1
022 13AA432CP
SHIM - DOOR WINGLET - 0.6MM 		$17.76 1
023 13AA439CP
SHIM - DOOR WINGLET - 1.0MM 		$17.91 1
023 13AA439CP
SHIM - DOOR WINGLET - 1.0MM 		$17.91 1
024 00RA256
Screw - M4x8 - Button 		- 1 Enquire
025 00RA565
BOLT - HEX HEAD - FLANGE - M6X12 		- 1 Enquire
026 00RC064
WASHER - M6X18X1.6 - BLACK 		- 1 Enquire
027 13AB065CP
DOOR ASSY - LH 		$5,413.76 1
028 13AA460CP
SHIM - SPACER 		$3.46 6
029 13A2915CP
BRACE - WINGLET - DOOR SIDE - LH 		$134.36 1
029 13A2914CP
BRACE - WINGLET - DOOR SIDE - RH 		$134.36 1
030 13A6566CP
COVER SUPPORT - DOOR WINGLET - RH 		$38.37 1
030 13A6554CP
COVER SUPPORT - DOOR WINGLET - LH 		$38.37 1
032 13A4087CP
SWITCH - DOOR RELEASE - PUSH BUTTON 		$95.98 1
033 13A4121CP
BRACE - WINGLET - TENDON SIDE 		$134.36 1
034 13A4126CP
MLDG DOOR SWITCH CARRIER
Color codes: 13AA167SP; 		$19.18 1
036 13AA630CP
FOAM - DOOR WINGLET - INNER 		$33.39 1
037 13AB881RP
CHIP PROTECTION - DOOR KIT 		$212.54 1
038 13A6157CP
INSERT COVER - WINGLET - DOOR - CARBON - RH 		$8,926.44 1
038 13A6156CP
INSERT COVER - WINGLET - DOOR - CARBON - LH 		$8,926.44 1
