McLaren 600LT Spider - 5 - PANELS - 5.4 - BULKHEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RC039 WASHER - M6 - STAR LOCK Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Enquire To Order
Photo Part No Description Price (each) Stock
00RX003 BOLT - M6X1X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Enquire To Order
Photo Part No Description Price (each) Stock
00RA313 SCREW - M6X16 - HEX - SILVER Enquire To Order
Photo Part No Description Price (each) Stock
11A5401SP EDGE PROTECTION - BULKHEAD BRACKET - REAR - SPIDER $10.60 To Order
Photo Part No Description Price (each) Stock
13AA188SP SUPPORT - BULKHEAD - LH $55.26 To Order
Photo Part No Description Price (each) Stock
13AA192SP SUPPORT - BULKHEAD - RH $55.26 To Order
Photo Part No Description Price (each) Stock
13AA273SP HEATSHIELD - BULKHEAD - REAR - UPPER - LH $135.12 To Order
Photo Part No Description Price (each) Stock
13AA275SP HEATSHIELD - BULKHEAD - REAR - UPPER - RH $135.12 To Order
Photo Part No Description Price (each) Stock
11AA018SP HEATSHIELD - HATCH - BULKHEAD $287.70 To Order
Photo Part No Description Price (each) Stock
00RA399 Screw - M4x12 Enquire To Order
Photo Part No Description Price (each) Stock
11A1657SP GROMMET - SPIDER $33.78 To Order
Photo Part No Description Price (each) Stock
12N1282CP ADHESIVE TAPE - 3M-PT1100 $328.17 To Order
Photo Part No Description Price (each) Stock
11A5842SP WASHER - TINNERMANN - M4 $13.49 To Order
Photo Part No Description Price (each) Stock
11A5307SP HATCH - BULKHEAD $978.21 To Order
13A6468CP HATCH - BULKHEAD $81.50 To Order
Photo Part No Description Price (each) Stock
13AA617SP LINER - BULKHEAD - CENTRE - ESG Enquire To Order
Photo Part No Description Price (each) Stock
22AE399GP NVH FOAM - DOOR INNER - GT BULKHEAD $3.43 To Order
Photo Part No Description Price (each) Stock
13AA670RP ADAPTER - ESG - LH $28.93 To Order
Photo Part No Description Price (each) Stock
13AA671RP ADAPTER - ESG - RH $28.93 To Order
View All

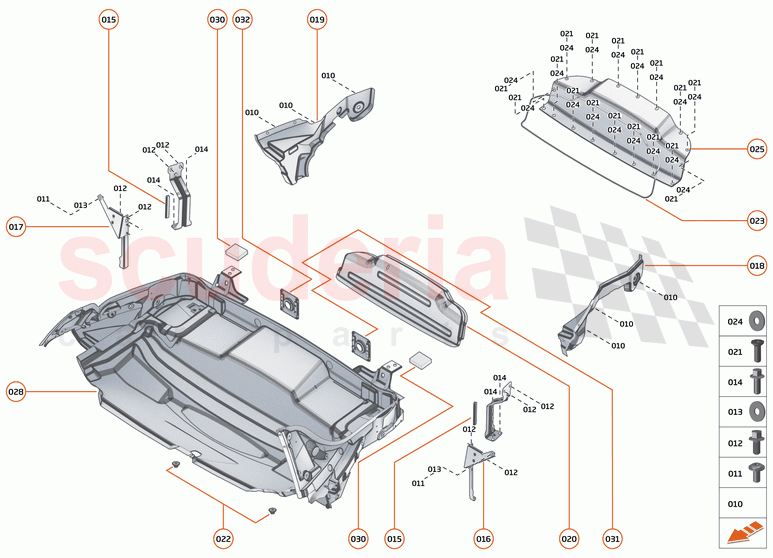

5 - PANELS - 5.4 - BULKHEAD of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RM005
ANIXTER RIVET - BLACK 		- 4 Enquire
000 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK 		- 17 Enquire
010 00RC039
WASHER - M6 - STAR LOCK 		- 15 Enquire
011 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 2 Enquire
012 00RX003
BOLT - M6X1X12 - HEX 		- 4 Enquire
013 00RC077
WASHER - M6X18X1.6 - STAINLESS STEEL 		- 1 Enquire
014 00RA313
SCREW - M6X16 - HEX - SILVER 		- 4 Enquire
015 11A5401SP
EDGE PROTECTION - BULKHEAD BRACKET - REAR - SPIDER 		$10.60 2
016 13AA188SP
SUPPORT - BULKHEAD - LH 		$55.26 1
017 13AA192SP
SUPPORT - BULKHEAD - RH 		$55.26 1
018 13AA273SP
HEATSHIELD - BULKHEAD - REAR - UPPER - LH 		$135.12 1
019 13AA275SP
HEATSHIELD - BULKHEAD - REAR - UPPER - RH 		$135.12 1
020 11AA018SP
HEATSHIELD - HATCH - BULKHEAD 		$287.70 1
021 00RA399
Screw - M4x12 		- 17 Enquire
022 11A1657SP
GROMMET - SPIDER 		$33.78 2
023 12N1282CP
ADHESIVE TAPE - 3M-PT1100 		$328.17 1
024 11A5842SP
WASHER - TINNERMANN - M4 		$13.49 17
025 11A5307SP
HATCH - BULKHEAD 		$978.21 1
025 13A6468CP
HATCH - BULKHEAD 		$81.50 1
028 13AA617SP
LINER - BULKHEAD - CENTRE - ESG 		- 1 Enquire
030 22AE399GP
NVH FOAM - DOOR INNER - GT BULKHEAD 		$3.43 2
031 13AA670RP
ADAPTER - ESG - LH 		$28.93 1
032 13AA671RP
ADAPTER - ESG - RH 		$28.93 1
033 00RA430
SCREW - M4X10 - BUTTON HEAD - 10.9 		- 2 Enquire
034 00RC030
Washer - M4x12x1 		- 2 Enquire
035 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD 		- 1 Enquire
