8 - Opening Roof Systems - 8.3 - Convertible Roof - Tonneau Cover

McLaren 600LT Spider

Find Your Part

McLaren 600LT Spider - 8 - OPENING ROOF SYSTEMS - 8.3 - CONVERTIBLE ROOF - TONNEAU COVER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11A4048SP RHT - Down Stack Buffer - Roof - Front $72.50 To Order
11A4043SP Striker - RHT - Down Stack Complete $480.31 To Order
11A4049SP RHT - Buffer Latch - Tonneau Cover $57.98 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13AA222SP LINER - TONNEAU COMPARTMENT - LH $11.58 To Order
Photo Part No Description Price (each) Stock
13AA226SP LINER - TONNEAU COMPARTMENT - RH $11.58 To Order
Photo Part No Description Price (each) Stock
13AA312SP SHIM - HINGE - 1.0MM $1.14 To Order
Photo Part No Description Price (each) Stock
13AA314SP SHIM - DOG BONE $16.26 To Order
Photo Part No Description Price (each) Stock
00RA606 BOLT - M8X1.25 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RC104 Washer - M8x24x2 - Black Enquire To Order
00RC015 WASHER - M8X24X2 Enquire To Order
Photo Part No Description Price (each) Stock
11A6363SP BOLT - TONNEAU ARM $32.67 To Order
Photo Part No Description Price (each) Stock
11A6364SP SPRING CLIP - TONNEAU ARM $2.88 To Order
Photo Part No Description Price (each) Stock
11A6570SP LINKAGE - TONNEAU COVER - LH $864.56 To Order
Photo Part No Description Price (each) Stock
11A6571SP LINKAGE - TONNEAU COVER - RH $864.56 To Order
Photo Part No Description Price (each) Stock
11A6572SP ASSY HINGE - TONNEAU COVER - LH Enquire To Order
Photo Part No Description Price (each) Stock
11A6573SP ASSY HINGE - TONNEAU COVER - RH Enquire To Order
Photo Part No Description Price (each) Stock
11A8774SP SHIM - RHT - 0.5MM $8.48 To Order
11A8773SP SHIM - RHT - 1.0MM $1.59 To Order
11A6578SP SHIM - 1.0MM $2.92 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13AA611SP ASSY TONNEAU COVER $14,025.41 To Order
Photo Part No Description Price (each) Stock
11A2351SP SHIM PLATE PACK - TONNEAU 2-HOLE - SPIDER $10.61 To Order
Photo Part No Description Price (each) Stock
13AA052SP Assy Fin - Tonneau Cover - LH Enquire To Order
Photo Part No Description Price (each) Stock
13AA056SP Assy Fin - Tonneau Cover - RH Enquire To Order
View All

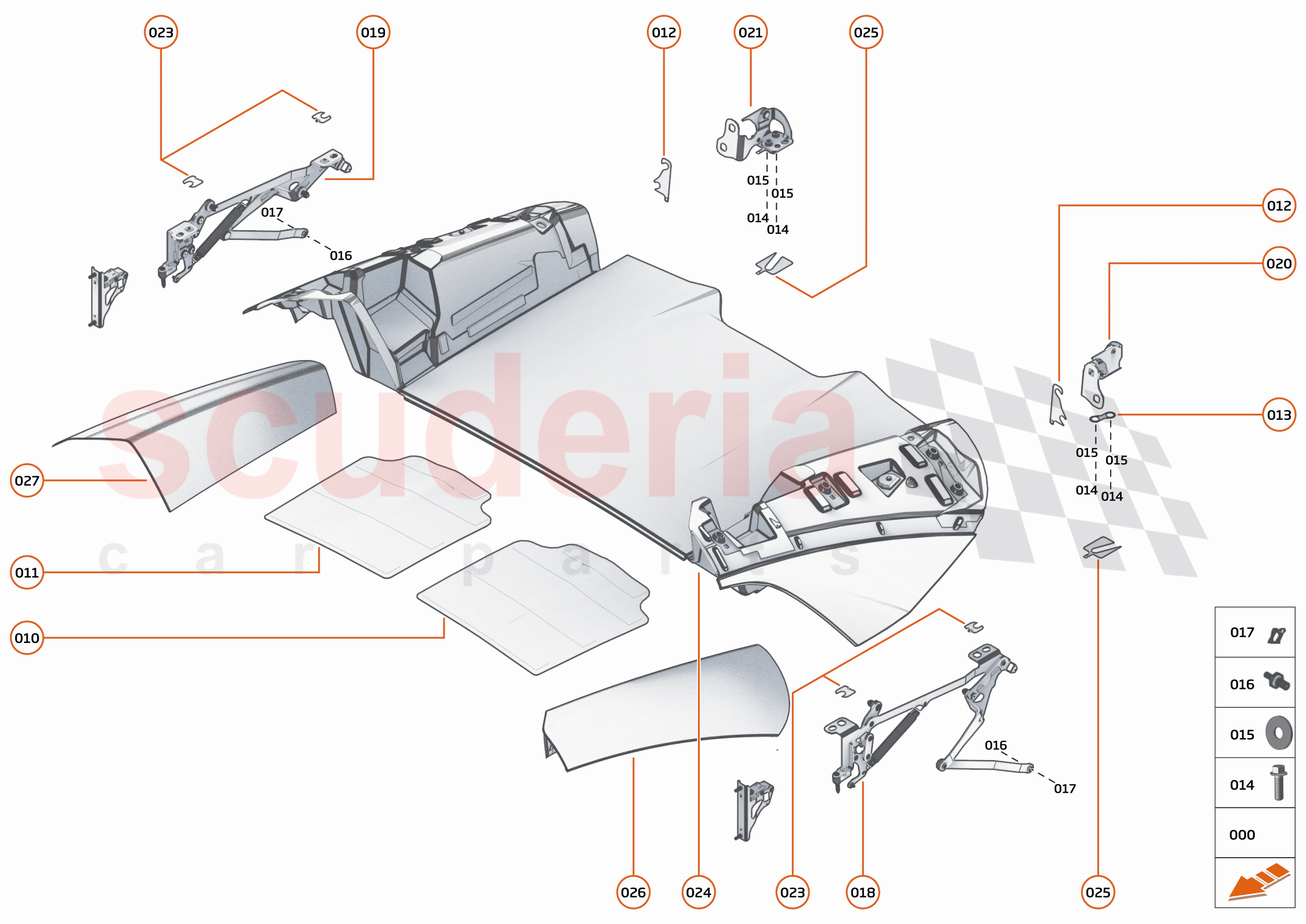

8 - OPENING ROOF SYSTEMS - 8.3 - CONVERTIBLE ROOF - TONNEAU COVER of McLaren McLaren 600LT Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11A4048SP
RHT - Down Stack Buffer - Roof - Front 		$72.50 1
000 11A4043SP
Striker - RHT - Down Stack Complete 		$480.31 1
000 11A4049SP
RHT - Buffer Latch - Tonneau Cover 		$57.98 1
000 11A4015SP
RHT - Striker - Tonneau Cover - Kit 		$422.67 1
000 11A4007SP
RHT - Hinge -Tonneau Assy - Kit LH & RH 		$889.53 1
010 13AA222SP
LINER - TONNEAU COMPARTMENT - LH 		$11.58 1
011 13AA226SP
LINER - TONNEAU COMPARTMENT - RH 		$11.58 1
012 13AA312SP
SHIM - HINGE - 1.0MM 		$1.14 2
013 13AA314SP
SHIM - DOG BONE 		$16.26 2
014 00RA606
BOLT - M8X1.25 - HEX 		- 4 Enquire
015 00RC104
Washer - M8x24x2 - Black 		- 4 Enquire
015 00RC015
WASHER - M8X24X2 		- 4 Enquire
016 11A6363SP
BOLT - TONNEAU ARM 		$32.67 2
017 11A6364SP
SPRING CLIP - TONNEAU ARM 		$2.88 2
018 11A6570SP
LINKAGE - TONNEAU COVER - LH 		$864.56 1
019 11A6571SP
LINKAGE - TONNEAU COVER - RH 		$864.56 1
020 11A6572SP
ASSY HINGE - TONNEAU COVER - LH 		- 1 Enquire
021 11A6573SP
ASSY HINGE - TONNEAU COVER - RH 		- 1 Enquire
023 11A8774SP
SHIM - RHT - 0.5MM 		$8.48 12
023 11A8773SP
SHIM - RHT - 1.0MM 		$1.59 6
023 11A6578SP
SHIM - 1.0MM 		$2.92 4
023 11A6577SP
SHIM - KINEMATIC - 0.5MM 		$8.30 8
023 13AA324SP
SHIM - KINEMATIC - 1.0MM 		$1.45 8
024 13AA611SP
ASSY TONNEAU COVER 		$14,025.41 1
025 11A2351SP
SHIM PLATE PACK - TONNEAU 2-HOLE - SPIDER 		$10.61 4
026 13AA052SP
Assy Fin - Tonneau Cover - LH 		- 1 Enquire
027 13AA056SP
Assy Fin - Tonneau Cover - RH 		- 1 Enquire
028 00RA485
BOLT - HEX HEAD - FLANGED - M8X25 		- 4 Enquire
