Name: 32 - ENGINE - 32.4 - EXHAUST MANIFOLD & TURBOCHARGERS
Rating: 5.0 (1 reviews)

32 - ENGINE - 32.4 - EXHAUST MANIFOLD & TURBOCHARGERS of McLaren McLaren 540C Coupe

View All

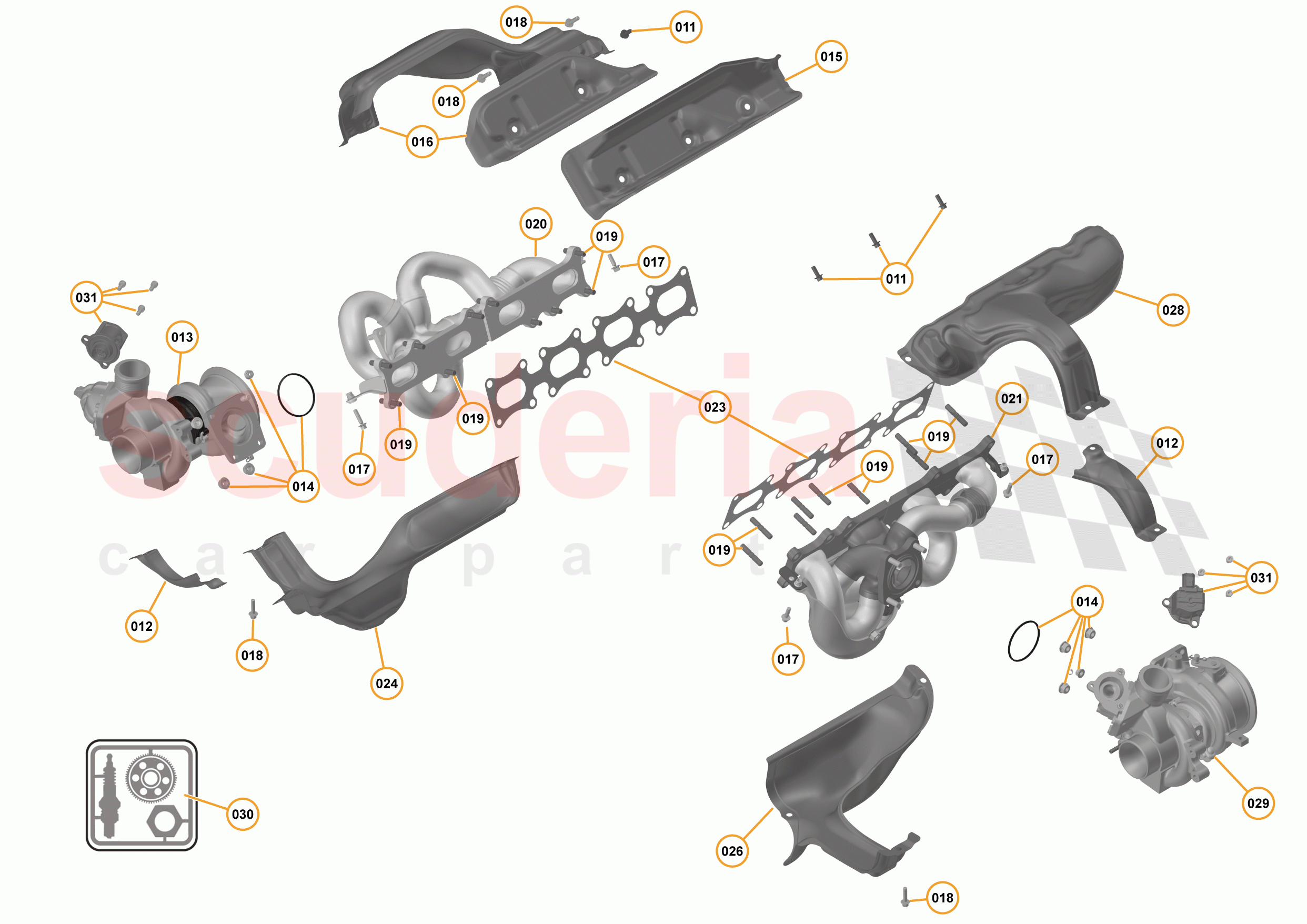

McLaren 540C Coupe - 32 - ENGINE - 32.4 - EXHAUST MANIFOLD & TURBOCHARGERS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11F0822CP	Bolt - M6x16 - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0598CP	HEATSHIELD - TURBOCHARGER - - LH	$57.44	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0545CP	TURBOCHARGER ASSY - ENGINE - RH	$2,968.59	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2586RP	Gasket - Turbocharger to Manifold - inc Nuts - 675LT	$144.56	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0796CP	HEATSHIELD - CAM COVER RH	$153.21	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0809CP	HEATSHIELD - EXHAUST MANIFOLD - UPPER RH	$231.29	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1795CP	EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S	$11.54	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0737CP	SCREW - M6X24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1262CP	STUD-M8X1.25X41 - ENGINE	$28.89	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0322CP	EXHAUST MANIFOLD - ENGINE - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0321CP	EXHAUST MANIFOLD - ENGINE - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0599CP	GASKET - EXHAUST MANIFOLD - ENGINE	$91.54	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0800CP	HEATSHIELD - EXHAUST MANIFOLD - LOWER RH	$269.85	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0798CP	HEATSHIELD - EXHAUST MANIFOLD - LOWER LH	$269.85	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0797CP	HEATSHIELD - EXHAUST MANIFOLD - UPPER LH	$231.29	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0546CP	TURBOCHARGER ASSY - ENGINE - LH	$2,968.59	To Order

Photo	Part No	Description	Price (each)	Stock
	11F2588RP	Bolt Set - Engine - Exhaust Turbocharger - Heatshield - 675LT	$38.53	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0879CP	Kit - Dump Valve - Electric - Inc Screws	$269.85	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	11F0822CP	Bolt - M6x16 - Engine	11F0822CP Bolt - M6x16 - Engine	-	1	Enquire
012	13F0598CP	HEATSHIELD - TURBOCHARGER - - LH	13F0598CP HEATSHIELD - TURBOCHARGER - - LH	$57.44	2
013	13F0545CP	TURBOCHARGER ASSY - ENGINE - RH	13F0545CP TURBOCHARGER ASSY - ENGINE - RH	$2,968.59	1
014	11F2586RP	Gasket - Turbocharger to Manifold - inc Nuts - 675LT	11F2586RP Gasket - Turbocharger to Manifold - inc Nuts - 675LT	$144.56	2
015	13F0796CP	HEATSHIELD - CAM COVER RH	13F0796CP HEATSHIELD - CAM COVER RH	$153.21	1
016	13F0809CP	HEATSHIELD - EXHAUST MANIFOLD - UPPER RH	13F0809CP HEATSHIELD - EXHAUST MANIFOLD - UPPER RH Superseded parts: 13F0799CP;	$231.29	2
017	11F1795CP	EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S	11F1795CP EXHAUST MANIFOLD - HEATSHIELD - SCREW - M6X20 - 675LT - SPORTS SERIES - 720S	$11.54	2
018	13F0737CP	SCREW - M6X24	13F0737CP SCREW - M6X24	-	4	Enquire
019	11F1262CP	STUD-M8X1.25X41 - ENGINE	11F1262CP STUD-M8X1.25X41 - ENGINE	$28.89	20
020	13F0322CP	EXHAUST MANIFOLD - ENGINE - RH	13F0322CP EXHAUST MANIFOLD - ENGINE - RH Superseded parts: 13F0322CP;	-	1	Enquire
021	13F0321CP	EXHAUST MANIFOLD - ENGINE - LH	13F0321CP EXHAUST MANIFOLD - ENGINE - LH Superseded parts: 13F0321CP;	-	1	Enquire
022	11F1905CP	NUT - EXHAUST MANIFOLD FLANGED - M8	11F1905CP NUT - EXHAUST MANIFOLD FLANGED - M8	$10.59	22
023	13F0599CP	GASKET - EXHAUST MANIFOLD - ENGINE	13F0599CP GASKET - EXHAUST MANIFOLD - ENGINE	$91.54	2
024	13F0800CP	HEATSHIELD - EXHAUST MANIFOLD - LOWER RH	13F0800CP HEATSHIELD - EXHAUST MANIFOLD - LOWER RH	$269.85	2
026	13F0798CP	HEATSHIELD - EXHAUST MANIFOLD - LOWER LH	13F0798CP HEATSHIELD - EXHAUST MANIFOLD - LOWER LH	$269.85	1
028	13F0797CP	HEATSHIELD - EXHAUST MANIFOLD - UPPER LH	13F0797CP HEATSHIELD - EXHAUST MANIFOLD - UPPER LH	$231.29	1
029	13F0546CP	TURBOCHARGER ASSY - ENGINE - LH	13F0546CP TURBOCHARGER ASSY - ENGINE - LH	$2,968.59	1
030	11F2588RP	Bolt Set - Engine - Exhaust Turbocharger - Heatshield - 675LT	11F2588RP Bolt Set - Engine - Exhaust Turbocharger - Heatshield - 675LT	$38.53	2
031	13F0879CP	Kit - Dump Valve - Electric - Inc Screws	13F0879CP Kit - Dump Valve - Electric - Inc Screws	$269.85	2

32 - Engine - 32.4 - Exhaust Manifold & Turbochargers

McLaren 540C Coupe

McLaren 540C Coupe - 32 - ENGINE - 32.4 - EXHAUST MANIFOLD & TURBOCHARGERS
