33 - ENGINE AIR SYSTEMS - 33.4 - INTAKE SOUND GENERATOR (ISG) SYSTEM of McLaren McLaren 540C Coupe

View All

McLaren 540C Coupe - 33 - ENGINE AIR SYSTEMS - 33.4 - INTAKE SOUND GENERATOR (ISG) SYSTEM

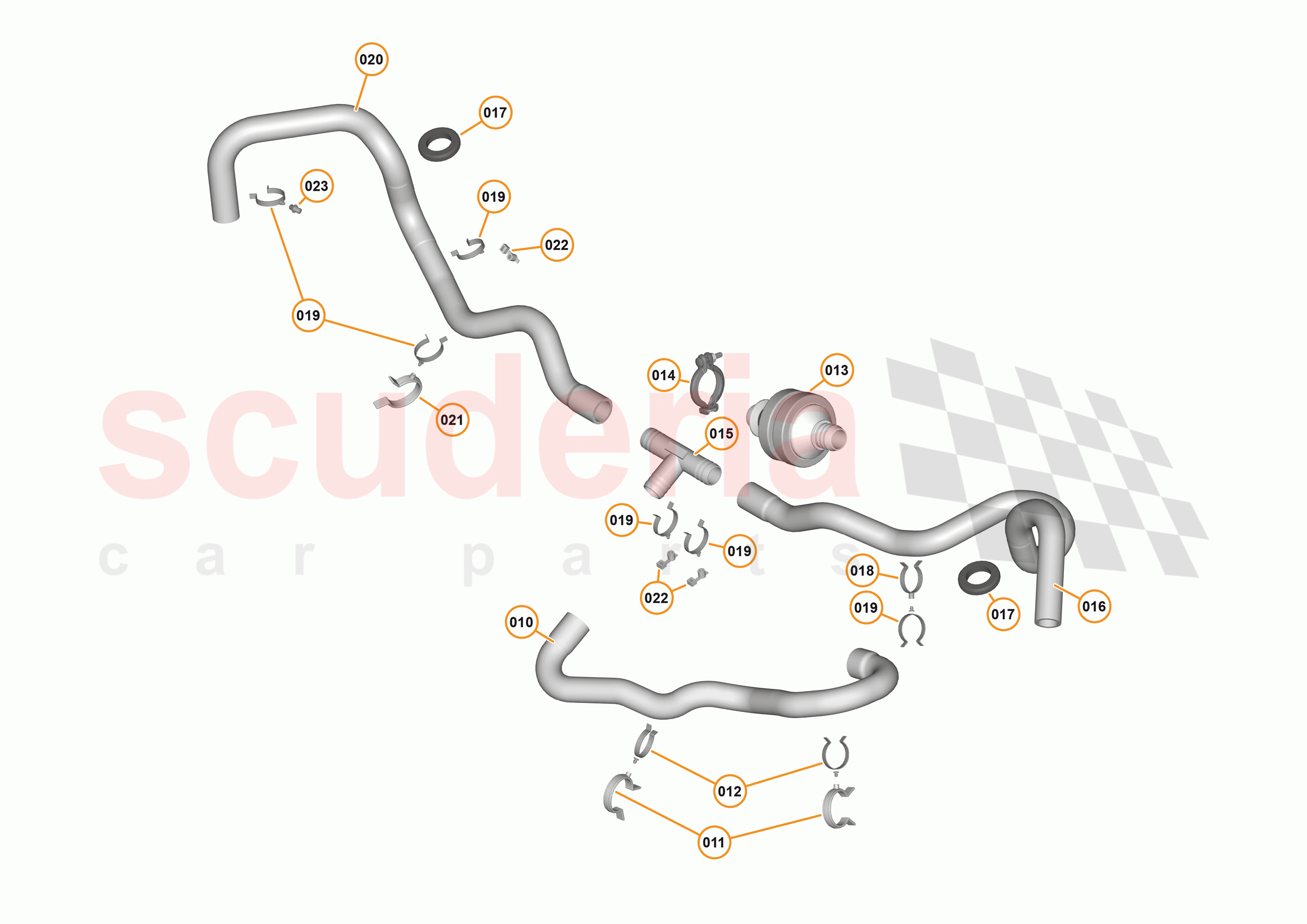

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13F0690CP	Hose - Primary - Intake Sound Generator	$72.42	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB057	CLIP - 39-45MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB073	Swivel Clip - 28-30mm - Male	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0839CP	INTAKE SOUND GENERATOR	$328.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0651CP	CLAMP - THROTTLE - INTAKE SOUND GENERATOR	$57.91	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0419CP	ADAPTOR - INTAKE SOUND GENERATOR - HOSE TO SERVICE PANEL - LH	$33.79	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0691CP	Hose - Outlet - Intake Sound Generator - Coupe - LH	$96.55	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG047	GROMMET - OPEN - 38.1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB066	SWIVEL CLIP - 25-27MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB073	Swivel Clip - 28-30mm - Male	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0692CP	Hose - Outlet - Intake Sound Generator - Coupe - RH	$96.55	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB057	CLIP - 39-45MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB035	Cable Tie - Female - Dia 8-20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13F0690CP	Hose - Primary - Intake Sound Generator	13F0690CP Hose - Primary - Intake Sound Generator	$72.42	1
011	00RB057	CLIP - 39-45MM - FEMALE	00RB057 CLIP - 39-45MM - FEMALE	-	2	Enquire
012	00RB073	Swivel Clip - 28-30mm - Male	00RB073 Swivel Clip - 28-30mm - Male	-	2	Enquire
013	13F0839CP	INTAKE SOUND GENERATOR	13F0839CP INTAKE SOUND GENERATOR	$328.31	1
014	11F0651CP	CLAMP - THROTTLE - INTAKE SOUND GENERATOR	11F0651CP CLAMP - THROTTLE - INTAKE SOUND GENERATOR	$57.91	1
015	12F0419CP	ADAPTOR - INTAKE SOUND GENERATOR - HOSE TO SERVICE PANEL - LH	12F0419CP ADAPTOR - INTAKE SOUND GENERATOR - HOSE TO SERVICE PANEL - LH	$33.79	1
016	13F0691CP	Hose - Outlet - Intake Sound Generator - Coupe - LH	13F0691CP Hose - Outlet - Intake Sound Generator - Coupe - LH	$96.55	1
017	00RG047	GROMMET - OPEN - 38.1	00RG047 GROMMET - OPEN - 38.1	-	2	Enquire
018	00RB066	SWIVEL CLIP - 25-27MM - FEMALE	00RB066 SWIVEL CLIP - 25-27MM - FEMALE	-	1	Enquire
019	00RB073	Swivel Clip - 28-30mm - Male	00RB073 Swivel Clip - 28-30mm - Male	-	6	Enquire
020	13F0692CP	Hose - Outlet - Intake Sound Generator - Coupe - RH	13F0692CP Hose - Outlet - Intake Sound Generator - Coupe - RH	$96.55	1
021	00RB057	CLIP - 39-45MM - FEMALE	00RB057 CLIP - 39-45MM - FEMALE	-	1	Enquire
022	00RB035	Cable Tie - Female - Dia 8-20	00RB035 Cable Tie - Female - Dia 8-20	-	3	Enquire
023	00RG019	SWIVEL - 6.5X10.5 FIRTREE BASE	00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE	-	1	Enquire
024	00RG050	Plug - Dome - 33 Diameter	00RG050 Plug - Dome - 33 Diameter	-	2	Enquire
