McLaren 540C Coupe - 35 - ENGINE COOLING SYSTEM - 35.1 - ENGINE WATER PUMP & WATER CIRCUIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13F0866CP COOLANT HOSE - FEED - CLUTCH COOLER $125.30 To Order
Photo Part No Description Price (each) Stock
11F1012CP Oetiker Clip - Engine - 27.1 $7.75 To Order
Photo Part No Description Price (each) Stock
11F0981CP P-Clip - Clutch Cooler Hose - Engine $7.94 To Order
Photo Part No Description Price (each) Stock
28FA063CP WATER PUMP $1,638.63 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.66 To Order
Photo Part No Description Price (each) Stock
11F1784CP BOLT - M6X80 - HEX $19.38 To Order
Photo Part No Description Price (each) Stock
11F0822CP Bolt - M6x16 - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F0802CP Heater Return Stub - Engine - Water Pump $126.10 To Order
Photo Part No Description Price (each) Stock
13F0903CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH $58.18 To Order
Photo Part No Description Price (each) Stock
13F0901CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH $181.16 To Order
Photo Part No Description Price (each) Stock
11F1131CP Banjo Washer - Turbo Oil Feed $6.18 To Order
Photo Part No Description Price (each) Stock
11F2167CP Pipe - Heater Feed Stub $92.14 To Order
Photo Part No Description Price (each) Stock
13F0761CP TURBO - COOLANT RETURN - ADAPTER - ASSEMBLY $231.32 To Order
Photo Part No Description Price (each) Stock
11F1468CP Hose Assy - Engine - Degas - MY2015 $126.10 To Order
Photo Part No Description Price (each) Stock
11F0704CP ENGINE COOLANT TOP24OSE SUPPOR $29.08 To Order
Photo Part No Description Price (each) Stock
11F1132CP O-ring - Radiator Hose - Inboard - Engine $33.95 To Order
Photo Part No Description Price (each) Stock
11F0809CP Bolt - M8x30 - Engine - Thermostat $12.55 To Order
Photo Part No Description Price (each) Stock
13F0902CP PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH $67.89 To Order
Photo Part No Description Price (each) Stock
13F0904CP PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH $63.04 To Order
Photo Part No Description Price (each) Stock
11F0686CP ENGINE WATER PUMP GASKET $33.95 To Order
Photo Part No Description Price (each) Stock
11F2434CP GASKET SERVICE COVER WATER PUMP $15.49 IN STOCK
Photo Part No Description Price (each) Stock
11F1674CP T PIECE - DEGAS $16.48 To Order
Photo Part No Description Price (each) Stock
11F1012CP Oetiker Clip - Engine - 27.1 $7.75 To Order
Photo Part No Description Price (each) Stock
11F2165CP Pipe - Turbocharger Water Return - Upper - RH $58.18 To Order
Photo Part No Description Price (each) Stock
00RB091 Oetiker Clip - 18.5 Enquire To Order
Photo Part No Description Price (each) Stock
13F0762CP BOLT - HOLLOW - M12 $38.79 To Order
Photo Part No Description Price (each) Stock
13FA050CP THERMOSTAT AND HOUSING-ENGINE $252.23 To Order
Photo Part No Description Price (each) Stock
13F0828CP ASSY PIPE STUB TURBOCHARGER WATER FEED - RH $53.33 To Order
Photo Part No Description Price (each) Stock
13F0829CP ASSY PIPE STUB TURBO WTR FEED LH $38.57 To Order
Photo Part No Description Price (each) Stock
11F1021CP RADIATOR - INBOARD LH $252.23 To Order
Photo Part No Description Price (each) Stock
11FA039CP RADIATOR - INBOARD RH $252.23 To Order
View All

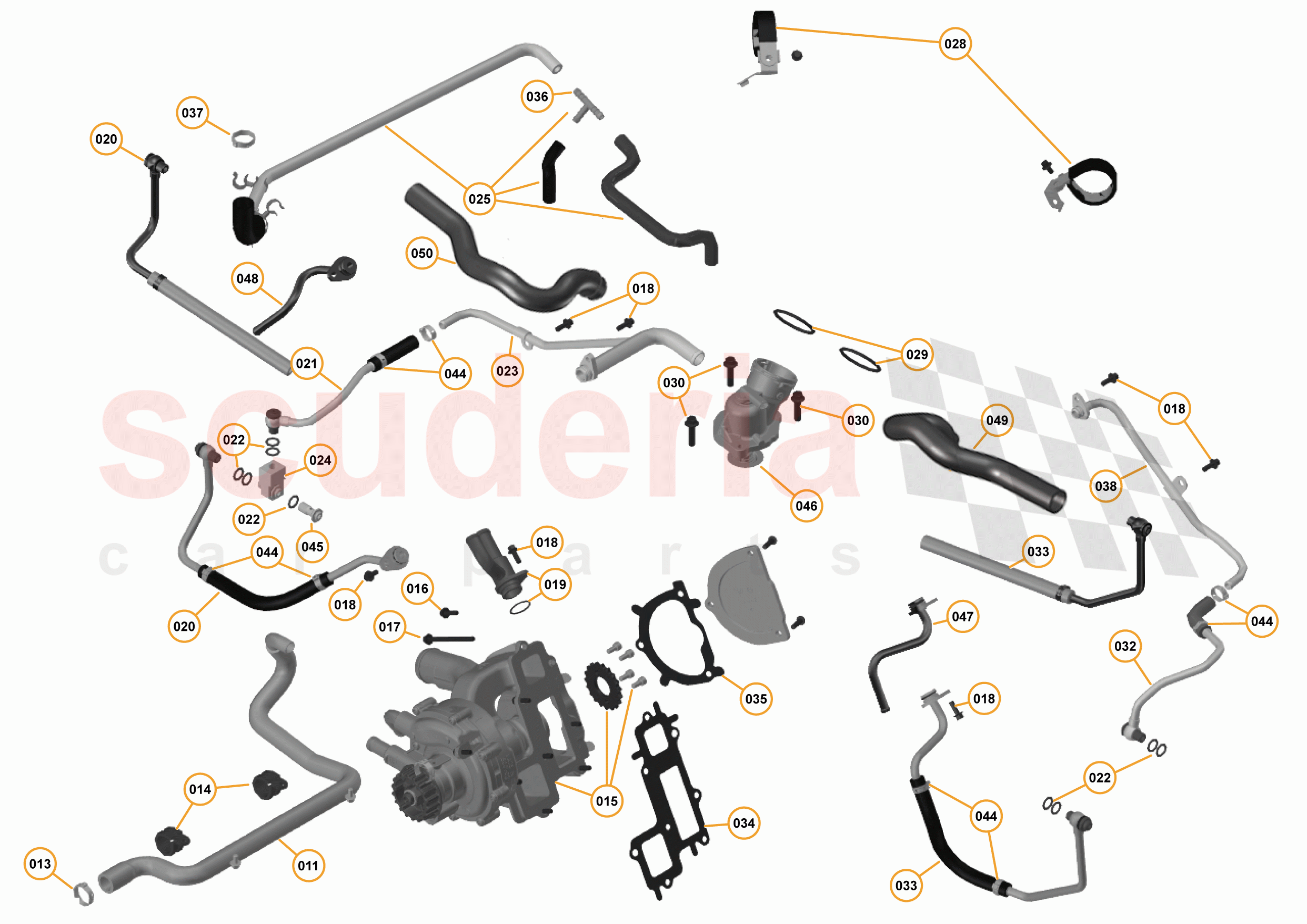

35 - ENGINE COOLING SYSTEM - 35.1 - ENGINE WATER PUMP & WATER CIRCUIT of McLaren McLaren 540C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
011 13F0866CP
COOLANT HOSE - FEED - CLUTCH COOLER 		$125.30 1
013 11F1012CP
Oetiker Clip - Engine - 27.1 		$7.75 1
014 11F0981CP
P-Clip - Clutch Cooler Hose - Engine 		$7.94 1
015 28FA063CP
WATER PUMP
Superseded parts: 13FA018CP; 		$1,638.63 1
016 11F1793CP
BOLT - M6X20 - HEX
Superseded parts: 11F0825CP; 		$10.66 1
017 11F1784CP
BOLT - M6X80 - HEX
Superseded parts: 11F0832CP; 		$19.38 1
018 11F0822CP
Bolt - M6x16 - Engine 		- 1 Enquire
019 11F0802CP
Heater Return Stub - Engine - Water Pump 		$126.10 1
020 13F0903CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - LH
Superseded parts: 13F0757CP; 		$58.18 1
021 13F0901CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - LH
Superseded parts: 13F0760CP; 		$181.16 1
022 11F1131CP
Banjo Washer - Turbo Oil Feed 		$6.18 9
023 11F2167CP
Pipe - Heater Feed Stub 		$92.14 1
024 13F0761CP
TURBO - COOLANT RETURN - ADAPTER - ASSEMBLY 		$231.32 1
025 11F1468CP
Hose Assy - Engine - Degas - MY2015 		$126.10 1
028 11F0704CP
ENGINE COOLANT TOP24OSE SUPPOR 		$29.08 1
029 11F1132CP
O-ring - Radiator Hose - Inboard - Engine 		$33.95 2
030 11F0809CP
Bolt - M8x30 - Engine - Thermostat 		$12.55 1
032 13F0902CP
PIPE - HOSE - TURBOCHARGER WATER RETURN - INC CLIPS - RH 		$67.89 1
033 13F0904CP
PIPE - HOSE - TURBOCHARGER COOLANT FEED - ASSY - RH
Superseded parts: 13F0758CP; 		$63.04 1
034 11F0686CP
ENGINE WATER PUMP GASKET 		$33.95 1
035 11F2434CP
GASKET SERVICE COVER WATER PUMP
Superseded parts: 11F1033CP;
IN STOCK 		$15.49 1
036 11F1674CP
T PIECE - DEGAS 		$16.48 1
037 11F1012CP
Oetiker Clip - Engine - 27.1 		$7.75 1
038 11F2165CP
Pipe - Turbocharger Water Return - Upper - RH 		$58.18 1
044 00RB091
Oetiker Clip - 18.5 		- 1 Enquire
045 13F0762CP
BOLT - HOLLOW - M12 		$38.79 1
046 13FA050CP
THERMOSTAT AND HOUSING-ENGINE 		$252.23 1
047 13F0828CP
ASSY PIPE STUB TURBOCHARGER WATER FEED - RH 		$53.33 1
048 13F0829CP
ASSY PIPE STUB TURBO WTR FEED LH 		$38.57 1
049 11F1021CP
RADIATOR - INBOARD LH 		$252.23 1
050 11FA039CP
RADIATOR - INBOARD RH 		$252.23 1
