15 - E1 - Heat Insulation - 15.1 - 01 - Heat Insulation

McLaren 12C Coupe

Find Your Part

McLaren 12C Coupe - 15 - E1 - HEAT INSULATION - 15.1 - 01 - HEAT INSULATION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RG003 FIRTREE 7.2X15X24 Enquire To Order
Photo Part No Description Price (each) Stock
11E0169CP Heatshield - Oil Tank $613.33 To Order
Photo Part No Description Price (each) Stock
11E0168CP Heatshield - Bulkhead $977.51 To Order
Photo Part No Description Price (each) Stock
11E0152CP Heatshield - Link Pipe - Lower - Inner - RH $462.99 To Order
Photo Part No Description Price (each) Stock
11E0150CP Heatshield - Link Pipe - Lower - Outer - RH $462.99 To Order
Photo Part No Description Price (each) Stock
11E0092CP Heatshield - Lambda Sensor $53.02 To Order
Photo Part No Description Price (each) Stock
00RC063 Washer - M5x20x1 Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11E0148CP Heatshield - Link Pipe - Upper RH Inner - LH Outer $462.99 To Order
Photo Part No Description Price (each) Stock
11E0147CP Heatshield - Link Pipe - Upper LH Inner - RH Outer $462.99 To Order
Photo Part No Description Price (each) Stock
00RA074 NUT-HEX HEAD FLANG24M5 Enquire To Order
Photo Part No Description Price (each) Stock
11E0061CP Heatshield - Muffler - Upper Enquire To Order
Photo Part No Description Price (each) Stock
00RC060 Washer - M5X25X1.3 Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11E0172CP Heatshield Closing Panel - Standard Muffler - Lower - RH $135.02 To Order
11E0166CP Heatshield Closing Panel - Sports Muffler - Lower - RH $125.37 To Order
Photo Part No Description Price (each) Stock
11E0171CP Heatshield Closing Panel - Standard Muffler - Lower - LH $135.02 To Order
11E0165CP Heatshield Closing Panel - Sports Muffler - Lower - LH $125.37 To Order
Photo Part No Description Price (each) Stock
11E0186CP Superseded parts: 11E0181CP $462.99 To Order
Photo Part No Description Price (each) Stock
11E0164CP NUT-HSHIELD-MUFFLE24M5 $18.31 To Order
Photo Part No Description Price (each) Stock
11E0149CP Heatshield - Link Pipe - Lower - Outer - LH $462.99 To Order
Photo Part No Description Price (each) Stock
11E0151CP Heatshield - Link Pipe - Lower - Inner - LH $462.99 To Order
Photo Part No Description Price (each) Stock
11E0177CP ASSY-HEATSHIELD-AC COMPRESSOR $498.33 To Order
Photo Part No Description Price (each) Stock
00RA011 NUT-HEX HEAD-FLANGE-M6-8 Enquire To Order
Photo Part No Description Price (each) Stock
11E0144CP Gasket - Bulkhead Shield $125.37 To Order
Photo Part No Description Price (each) Stock
11E0186CP Superseded parts: 11E0181CP $462.99 To Order
Photo Part No Description Price (each) Stock
11HA001CP Chmney Nut - M5 - Exhaust Heatshield $24.10 To Order
View All

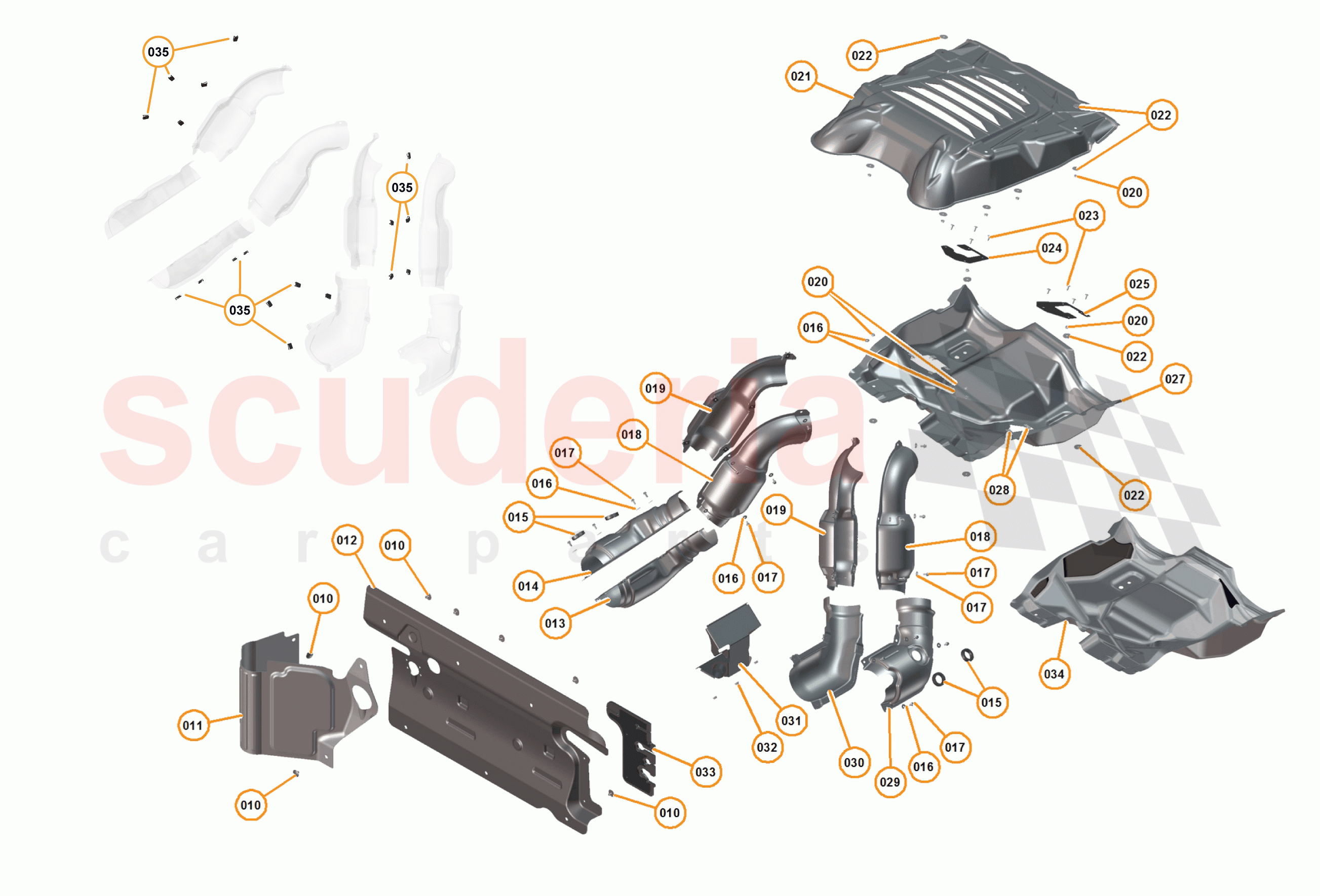

15 - E1 - HEAT INSULATION - 15.1 - 01 - HEAT INSULATION of McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RG003
FIRTREE 7.2X15X24 		- 10 Enquire
011 11E0169CP
Heatshield - Oil Tank 		$613.33 1
012 11E0168CP
Heatshield - Bulkhead 		$977.51 1
013 11E0152CP
Heatshield - Link Pipe - Lower - Inner - RH 		$462.99 1
014 11E0150CP
Heatshield - Link Pipe - Lower - Outer - RH 		$462.99 1
015 11E0092CP
Heatshield - Lambda Sensor 		$53.02 4
016 00RC063
Washer - M5x20x1 		- 18 Enquire
017 00RA064
BOLT - M5X12 - HEX 		- 18 Enquire
018 11E0148CP
Heatshield - Link Pipe - Upper RH Inner - LH Outer 		$462.99 2
019 11E0147CP
Heatshield - Link Pipe - Upper LH Inner - RH Outer 		$462.99 2
020 00RA074
NUT-HEX HEAD FLANG24M5 		- 9 Enquire
021 11E0061CP
Heatshield - Muffler - Upper
Superseded parts: 11E0061CP; 		- 1 Enquire
022 00RC060
Washer - M5X25X1.3 		- 16 Enquire
023 00RA087
SCREW - M5X10 - HEX 		- 8 Enquire
024 11E0172CP
Heatshield Closing Panel - Standard Muffler - Lower - RH 		$135.02 1
024 11E0166CP
Heatshield Closing Panel - Sports Muffler - Lower - RH 		$125.37 1
025 11E0171CP
Heatshield Closing Panel - Standard Muffler - Lower - LH 		$135.02 1
025 11E0165CP
Heatshield Closing Panel - Sports Muffler - Lower - LH 		$125.37 1
027 11E0186CP
Superseded parts: 11E0181CP
Color codes: 11B0626CP; Superseded parts: 11E0181CP; 		$462.99 1
028 11E0164CP
NUT-HSHIELD-MUFFLE24M5 		$18.31 1
029 11E0149CP
Heatshield - Link Pipe - Lower - Outer - LH 		$462.99 1
030 11E0151CP
Heatshield - Link Pipe - Lower - Inner - LH 		$462.99 1
031 11E0177CP
ASSY-HEATSHIELD-AC COMPRESSOR 		$498.33 1
032 00RA011
NUT-HEX HEAD-FLANGE-M6-8 		- 3 Enquire
033 11E0144CP
Gasket - Bulkhead Shield 		$125.37 1
034 11E0186CP
Superseded parts: 11E0181CP 		$462.99 1
035 11HA001CP
Chmney Nut - M5 - Exhaust Heatshield 		$24.10 18
