McLaren 12C Coupe - 17 - F2 - OIL SYSTEM - ENGINE - 17.1 - 01 - OIL SYSTEM - ENGINE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11F0839CP Bolt - M8x40 - Engine - Shouldered $15.38 To Order
11F2577CP GRUB SCREW - OIL CHANNEL - ENGINE $9.63 To Order
11F0430CP Spacer - Oil Tank $28.87 To Order
Photo Part No Description Price (each) Stock
11F0289CP AV MOUNT-WCAC 24 $24.07 To Order
Photo Part No Description Price (each) Stock
11F0146CP BRKT MOUNT-OIL TAN24 $81.34 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
11F0021CP Drain Plug - Oil Tank - M14 $33.71 To Order
Photo Part No Description Price (each) Stock
11F1119CP Oil Tank - Engine Enquire To Order
Photo Part No Description Price (each) Stock
00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
11M0369CP SENSOR - ENGINE OIL LEVEL/TEMPERATURE $363.71 To Order
Photo Part No Description Price (each) Stock
11F0429CP BRKT-SWIRL POT MOUNT $81.34 To Order
Photo Part No Description Price (each) Stock
11F0127CP FILLER TUBE-OIL TANK $558.75 To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11F1595CP Bowl - Oil Filler - Coupe $231.18 To Order
Photo Part No Description Price (each) Stock
11F0895CP SEAL - OIL FILLER BOWL $62.60 To Order
Photo Part No Description Price (each) Stock
11F1584CP CAP ENGINE OIL FILLER ALUMINIUM $459.43 To Order
11F1107CP Cap - Engine - Oil Filler Enquire To Order
Photo Part No Description Price (each) Stock
11F0926CP HOSE DRAIN OIL FIL24R $96.31 To Order
Photo Part No Description Price (each) Stock
11F0884CP Hose - Clutch Cooler - Low Temperature Radiators - Feed Enquire To Order
Photo Part No Description Price (each) Stock
11F2162CP Pipe - Oil Feed - Oil Tank to Engine $558.75 To Order
Photo Part No Description Price (each) Stock
11F2163CP Pipe - Oil Return - Engine to Oil Tank $385.34 To Order
Photo Part No Description Price (each) Stock
00RB060 P CLIP - DIA 20 Enquire To Order
Photo Part No Description Price (each) Stock
11F0919CP O-ring - Hose - Oil Tank $28.87 To Order
Photo Part No Description Price (each) Stock
00RB018 CLIP - 11-13MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB035 Cable Tie - Female - Dia 8-20 Enquire To Order
Photo Part No Description Price (each) Stock
11F0918CP O-ring - Hose - Oil Filler $16.36 To Order
Photo Part No Description Price (each) Stock
11M1179CP Link Harness - Sensor - Oil $162.70 To Order
Photo Part No Description Price (each) Stock
16FC464CP COPPER WASHER - TO OIL TANK DRAIN PLUG $3.04 To Order
Photo Part No Description Price (each) Stock
00RA239 SCREW - M6X16 - LOCK HEX Enquire To Order
View All

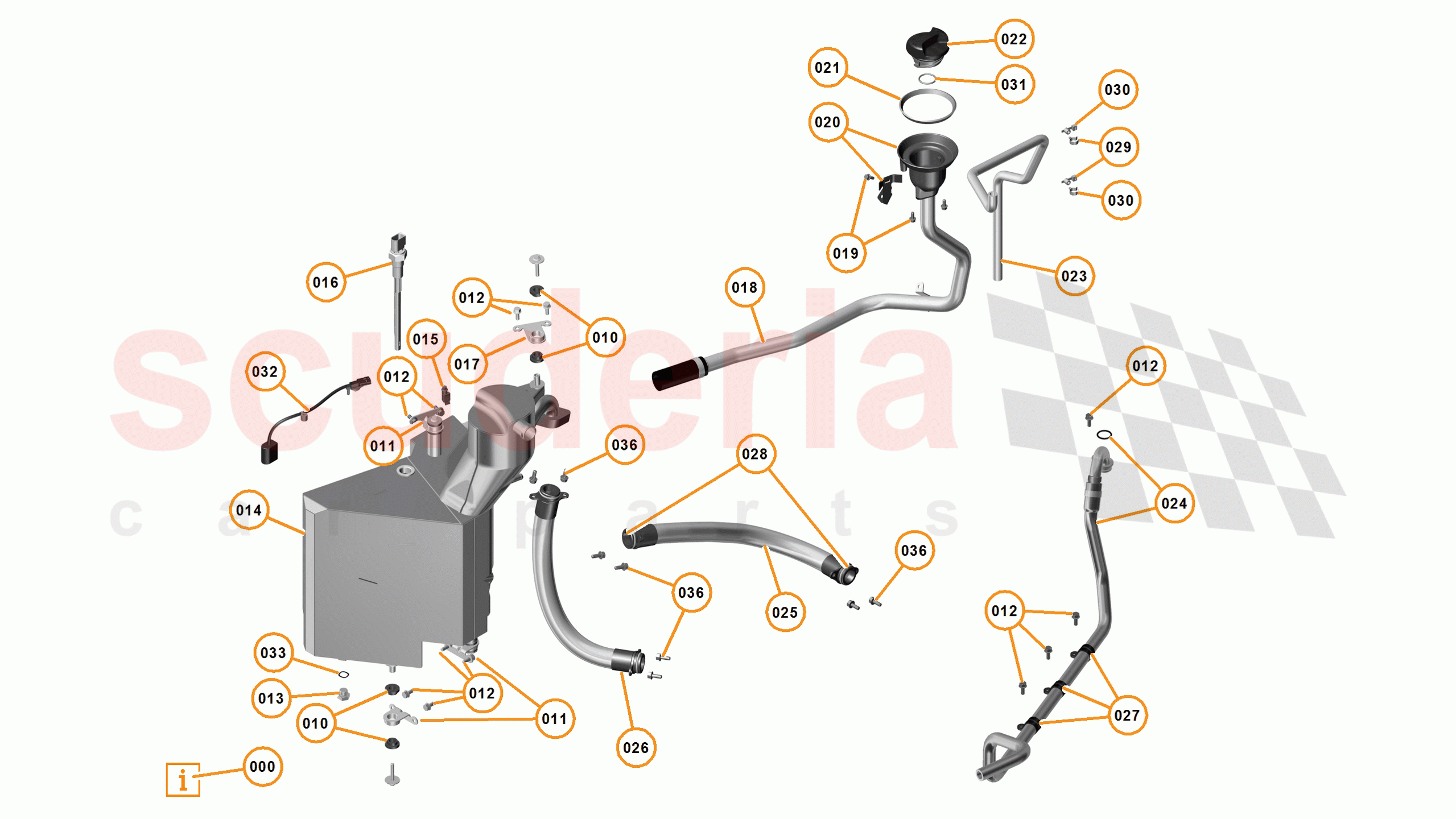

17 - F2 - OIL SYSTEM - ENGINE - 17.1 - 01 - OIL SYSTEM - ENGINE of McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 11F0839CP
Bolt - M8x40 - Engine - Shouldered 		$15.38 1
000 11F2577CP
GRUB SCREW - OIL CHANNEL - ENGINE 		$9.63 1
000 11F0430CP
Spacer - Oil Tank 		$28.87 4
010 11F0289CP
AV MOUNT-WCAC 24 		$24.07 8
011 11F0146CP
BRKT MOUNT-OIL TAN24 		$81.34 3
012 00RA061
Screw - M6x16 - Flange Hex 		- 10 Enquire
013 11F0021CP
Drain Plug - Oil Tank - M14 		$33.71 1
014 11F1119CP
Oil Tank - Engine 		- 1 Enquire
015 00RB053
HOSE CLAMP - 25-40MM - NORMA TORRO 		- 2 Enquire
016 11M0369CP
SENSOR - ENGINE OIL LEVEL/TEMPERATURE 		$363.71 1
017 11F0429CP
BRKT-SWIRL POT MOUNT 		$81.34 1
018 11F0127CP
FILLER TUBE-OIL TANK 		$558.75 1
019 00RA064
BOLT - M5X12 - HEX 		- 3 Enquire
020 11F1595CP
Bowl - Oil Filler - Coupe
Superseded parts: 11F0849CP; 		$231.18 1
021 11F0895CP
SEAL - OIL FILLER BOWL 		$62.60 1
022 11F1584CP
CAP ENGINE OIL FILLER ALUMINIUM 		$459.43 1
022 11F1107CP
Cap - Engine - Oil Filler
Superseded parts: 11F1107CP; 		- 1 Enquire
023 11F0926CP
HOSE DRAIN OIL FIL24R 		$96.31 1
024 11F0884CP
Hose - Clutch Cooler - Low Temperature Radiators - Feed
Superseded parts: 11F0884CP; 		- 1 Enquire
025 11F2162CP
Pipe - Oil Feed - Oil Tank to Engine
Superseded parts: 11F0214CP; 		$558.75 1
026 11F2163CP
Pipe - Oil Return - Engine to Oil Tank
Superseded parts: 11F0213CP; 		$385.34 1
027 00RB060
P CLIP - DIA 20 		- 3 Enquire
028 11F0919CP
O-ring - Hose - Oil Tank 		$28.87 4
029 00RB018
CLIP - 11-13MM - MALE 		- 2 Enquire
030 00RB035
Cable Tie - Female - Dia 8-20 		- 2 Enquire
031 11F0918CP
O-ring - Hose - Oil Filler 		$16.36 1
032 11M1179CP
Link Harness - Sensor - Oil 		$162.70 1
033 16FC464CP
COPPER WASHER - TO OIL TANK DRAIN PLUG 		$3.04 1
034 00RC043
WASHER - M6XOD25 		- 8 Enquire
035 00RA066
Bolt - M6x35 - Hex 		- 4 Enquire
036 00RA239
SCREW - M6X16 - LOCK HEX 		- 8 Enquire
