McLaren 12C Coupe - 16 - F1 - POWER UNIT - 16.18 - 02 - AIR INTAKE SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RM003 Rivet - DIA 5 x 10 - Torx Enquire To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA063 Screw - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
11F0555CP ASSY-DIRTY DUCT-CO24E-LH $499.12 To Order
Photo Part No Description Price (each) Stock
11F0948CP Airbox Assy - Engine - RH $541.01 To Order
Photo Part No Description Price (each) Stock
11F0238CP DUCT-MAF TUBE TO T24-RH $193.20 To Order
Photo Part No Description Price (each) Stock
11F0471CP SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE $28.96 To Order
Photo Part No Description Price (each) Stock
00RB030 HOSE CLAMP - 60-80 - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
11F0217CP AIR FILTER $115.91 IN STOCK
Photo Part No Description Price (each) Stock
11F0020CP SENSOR-MASS AIR FL24 $591.73 To Order
Photo Part No Description Price (each) Stock
11F0470CP Isolator - Mass Air Flow Tube $11.57 To Order
Photo Part No Description Price (each) Stock
00RA061 Screw - M6x16 - Flange Hex Enquire To Order
Photo Part No Description Price (each) Stock
00RB031 CLAMP - HOSE - 90-110 Enquire To Order
Photo Part No Description Price (each) Stock
11F0246CP MAF TUBE $328.45 To Order
Photo Part No Description Price (each) Stock
11F0944CP ELBOW-AIRBOX TO MA24TUBE-RH $251.18 To Order
Photo Part No Description Price (each) Stock
00RA073 SCREW - M6X30 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11F1478CP Hose Adaptor - Intake Sound Generator - With Resistor $61.69 To Order
11F0598CP ISG-ADAPTOR-HOSE T24BULKHEAD-C $72.45 To Order
Photo Part No Description Price (each) Stock
00RL011 EDGE CLIP - 202X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
11F0640CP Bracket - Mounting Clip - Hose - Intake Sound Generator - RH $57.94 To Order
Photo Part No Description Price (each) Stock
11F0651CP CLAMP - THROTTLE - INTAKE SOUND GENERATOR $57.94 To Order
Photo Part No Description Price (each) Stock
13F0839CP INTAKE SOUND GENERATOR $328.45 To Order
11F1276CP INTAKE-SOUND-GENERATOR $231.84 To Order
Photo Part No Description Price (each) Stock
11F1461CP Hose - Primary - Intake Sound Generator - Coupe - MY15 $24.14 To Order
11F0595CP ISG-PRIMARY HOSE-C06PE $125.57 To Order
Photo Part No Description Price (each) Stock
00RM007 Ratchet Rivet - 19.8-35 - Black - 0705831 Enquire To Order
Photo Part No Description Price (each) Stock
11F1479CP Bracket - Intake Sound Generator - Coupe - MY2015 $98.92 To Order
Photo Part No Description Price (each) Stock
11F1463CP Hose - Secondary - Intake Sound Generator - Coupe - RH - MY15 $102.58 To Order
11F0600CP Hose - Intake Sound Generator - Coupe - RH $289.82 To Order
Photo Part No Description Price (each) Stock
11F1475CP Y Piece - Intake Sound Generator - Coupe - MY15 $94.96 To Order
11F0596CP Y Piece - Intake Sound Generator - Coupe $43.45 To Order
Photo Part No Description Price (each) Stock
11F1462CP Hose - Secondary - Intake Sound Generator - Coupe - LH - MY15 $106.26 To Order
11F0599CP ISG-SECONDARY HOSE24H-COUPE $289.82 To Order
Photo Part No Description Price (each) Stock
11F0943CP ELBOW-AIRBOX TO MA24TUBE-LH $251.18 To Order
Photo Part No Description Price (each) Stock
11F0945CP Airbox Assy - Engine - LH $541.01 To Order
Photo Part No Description Price (each) Stock
11F0641CP Airbox Service Panel - Engine $164.21 To Order
Photo Part No Description Price (each) Stock
11F0556CP ASSY-DIRTY DUCT-CO24E-RH $499.12 To Order
Photo Part No Description Price (each) Stock
11F1057CP Duct - Mass Air Flow Tube to Turbocharger - Engine - LH $193.20 To Order
Photo Part No Description Price (each) Stock
00RB068 Hose Clamp - 80-100 - Norma Torro Enquire To Order
Photo Part No Description Price (each) Stock
00RB144 Adaptor Base - M6 - Stud Enquire To Order
Photo Part No Description Price (each) Stock
11F0889CP SPACER - TOPHAT - AIRBOX $19.30 To Order
Photo Part No Description Price (each) Stock
00RA314 Blind Rivet-Screw - 6.3-6.81 Enquire To Order
Photo Part No Description Price (each) Stock
00RB023 CLIP SPACER - 1MM - MALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB066 SWIVEL CLIP - 25-27MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RB085 P-CLIP - NORMA - DIA 25X15 Enquire To Order
Photo Part No Description Price (each) Stock
00RG019 SWIVEL - 6.5X10.5 FIRTREE BASE Enquire To Order
Photo Part No Description Price (each) Stock
00RG028 CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 Enquire To Order
Photo Part No Description Price (each) Stock
00RL023 CABLE TIE - HIGH TEMP Enquire To Order
Photo Part No Description Price (each) Stock
00RG017 Firtree C Clip - 25-27mm Enquire To Order
Photo Part No Description Price (each) Stock
00RL012 CABLE TIE - 300X4.6MM Enquire To Order
Photo Part No Description Price (each) Stock
00RA366 PIPE PROTECTOR - 13MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RA367 PIPE PROTECTOR - 19MM ID Enquire To Order
Photo Part No Description Price (each) Stock
00RA357 PIPE PROTECTOR Enquire To Order
View All

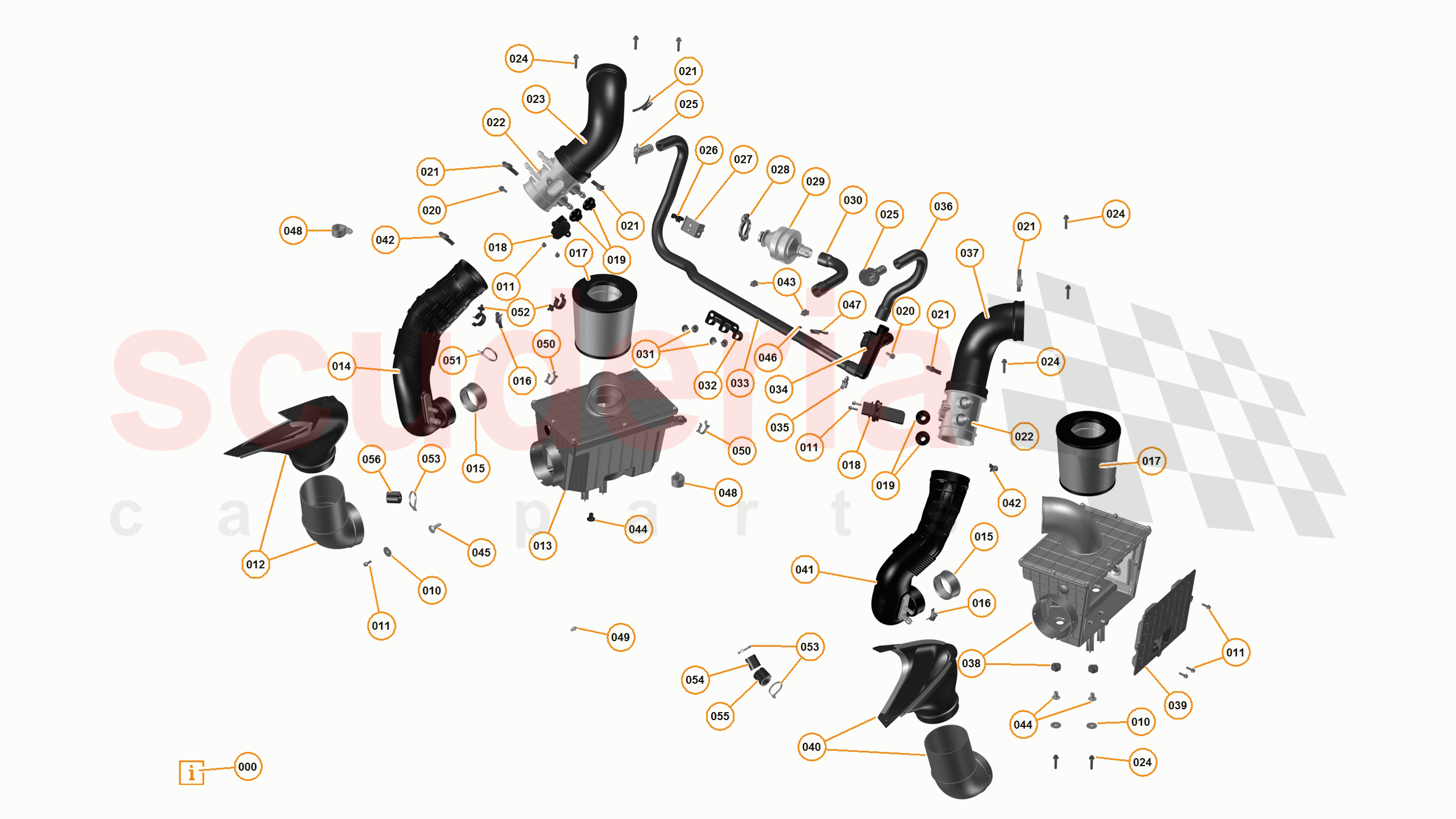

16 - F1 - POWER UNIT - 16.18 - 02 - AIR INTAKE SYSTEM of McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RM003
Rivet - DIA 5 x 10 - Torx 		- 4 Enquire
010 00RC043
WASHER - M6XOD25 		- 6 Enquire
011 00RA063
Screw - M5x16 - Hex 		- 10 Enquire
012 11F0555CP
ASSY-DIRTY DUCT-CO24E-LH 		$499.12 1
013 11F0948CP
Airbox Assy - Engine - RH 		$541.01 1
014 11F0238CP
DUCT-MAF TUBE TO T24-RH 		$193.20 1
015 11F0471CP
SEAL - MASS AIR FLOW TUBE - TURBOCHARGER - ENGINE 		$28.96 2
016 00RB030
HOSE CLAMP - 60-80 - NORMA TORRO 		- 2 Enquire
017 11F0217CP
AIR FILTER
IN STOCK 		$115.91 2
018 11F0020CP
SENSOR-MASS AIR FL24 		$591.73 2
019 11F0470CP
Isolator - Mass Air Flow Tube 		$11.57 4
020 00RA061
Screw - M6x16 - Flange Hex 		- 2 Enquire
021 00RB031
CLAMP - HOSE - 90-110 		- 4 Enquire
022 11F0246CP
MAF TUBE
MAF Tube; 		$328.45 2
023 11F0944CP
ELBOW-AIRBOX TO MA24TUBE-RH 		$251.18 1
024 00RA073
SCREW - M6X30 - HEX 		- 6 Enquire
025 11F1478CP
Hose Adaptor - Intake Sound Generator - With Resistor 		$61.69 2
025 11F0598CP
ISG-ADAPTOR-HOSE T24BULKHEAD-C 		$72.45 2
026 00RL011
EDGE CLIP - 202X4.6MM 		- 1 Enquire
027 11F0640CP
Bracket - Mounting Clip - Hose - Intake Sound Generator - RH 		$57.94 1
028 11F0651CP
CLAMP - THROTTLE - INTAKE SOUND GENERATOR 		$57.94 1
029 13F0839CP
INTAKE SOUND GENERATOR 		$328.45 1
029 11F1276CP
INTAKE-SOUND-GENERATOR 		$231.84 1
030 11F1461CP
Hose - Primary - Intake Sound Generator - Coupe - MY15 		$24.14 1
030 11F0595CP
ISG-PRIMARY HOSE-C06PE 		$125.57 1
031 00RM007
Ratchet Rivet - 19.8-35 - Black - 0705831 		- 4 Enquire
032 11F1479CP
Bracket - Intake Sound Generator - Coupe - MY2015
Superseded parts: 11F0597CP; 		$98.92 1
033 11F1463CP
Hose - Secondary - Intake Sound Generator - Coupe - RH - MY15 		$102.58 1
033 11F0600CP
Hose - Intake Sound Generator - Coupe - RH 		$289.82 1
034 11F1475CP
Y Piece - Intake Sound Generator - Coupe - MY15 		$94.96 1
034 11F0596CP
Y Piece - Intake Sound Generator - Coupe 		$43.45 1
035 00RB053
HOSE CLAMP - 25-40MM - NORMA TORRO 		- 1 Enquire
036 11F1462CP
Hose - Secondary - Intake Sound Generator - Coupe - LH - MY15 		$106.26 1
036 11F0599CP
ISG-SECONDARY HOSE24H-COUPE 		$289.82 1
037 11F0943CP
ELBOW-AIRBOX TO MA24TUBE-LH 		$251.18 1
038 11F0945CP
Airbox Assy - Engine - LH 		$541.01 1
039 11F0641CP
Airbox Service Panel - Engine 		$164.21 2
040 11F0556CP
ASSY-DIRTY DUCT-CO24E-RH 		$499.12 1
041 11F1057CP
Duct - Mass Air Flow Tube to Turbocharger - Engine - LH 		$193.20 1
042 00RB068
Hose Clamp - 80-100 - Norma Torro 		- 2 Enquire
043 00RB144
Adaptor Base - M6 - Stud 		- 2 Enquire
044 11F0889CP
SPACER - TOPHAT - AIRBOX 		$19.30 3
045 00RA314
Blind Rivet-Screw - 6.3-6.81 		- 2 Enquire
046 00RB023
CLIP SPACER - 1MM - MALE 		- 1 Enquire
047 00RB066
SWIVEL CLIP - 25-27MM - FEMALE 		- 1 Enquire
048 00RB085
P-CLIP - NORMA - DIA 25X15 		- 2 Enquire
049 00RG019
SWIVEL - 6.5X10.5 FIRTREE BASE 		- 2 Enquire
050 00RG028
CLIP - SWIVEL TYPE - MALE+FEMALE - 23.5-25 		- 2 Enquire
051 00RL023
CABLE TIE - HIGH TEMP 		- 1 Enquire
052 00RG017
Firtree C Clip - 25-27mm 		- 2 Enquire
053 00RL012
CABLE TIE - 300X4.6MM 		- 3 Enquire
054 00RA366
PIPE PROTECTOR - 13MM ID 		- 1 Enquire
055 00RA367
PIPE PROTECTOR - 19MM ID 		- 1 Enquire
056 00RA357
PIPE PROTECTOR 		- 1 Enquire
