Lubrication System: Circuit And Collection

Maserati Quattroporte (2013+) GTS

Find Your Part

Maserati Quattroporte (2013+) GTS - LUBRICATION SYSTEM: CIRCUIT AND COLLECTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
289921 OIL SUMP ASSEMBLY $1,044.79 To Order
Photo Part No Description Price (each) Stock
10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 $1.20 IN STOCK
Photo Part No Description Price (each) Stock
104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 $13.02 IN STOCK
Photo Part No Description Price (each) Stock
301591 OIL SUMP GASKET $88.28 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW M6 X 25 $1.74 IN STOCK
Photo Part No Description Price (each) Stock
230171 OIL LEVEL DETECTOR $64.29 IN STOCK
Photo Part No Description Price (each) Stock
282396 SCREW $3.04 To Order
Photo Part No Description Price (each) Stock
16165276 CIRCLIP $1.83 IN STOCK
Photo Part No Description Price (each) Stock
271468 OIL SUMP SHIELD $222.80 To Order
Photo Part No Description Price (each) Stock
339948 STUD Enquire To Order
Photo Part No Description Price (each) Stock
301461 DIPSTICK $23.05 To Order
Photo Part No Description Price (each) Stock
297463 OIL DIPSTICK HOLDER EXTENSION $39.68 To Order
Photo Part No Description Price (each) Stock
233600 SCREW M6 X 12 $2.49 IN STOCK
Photo Part No Description Price (each) Stock
282370 O.R. GASKET $2.60 IN STOCK
Photo Part No Description Price (each) Stock
293205 ENGINE OIL FILLER CAP $33.31 IN STOCK
Photo Part No Description Price (each) Stock
307944 OIL CAP EXTENSION $157.26 To Order
Photo Part No Description Price (each) Stock
14457881 GASKET $2.39 To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM $3.11 IN STOCK
Photo Part No Description Price (each) Stock
277533 BRACKET $11.87 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.37 IN STOCK
Photo Part No Description Price (each) Stock
223577 THREADED INSERT M22 X 1.5 X 9MM $3.95 IN STOCK
View All

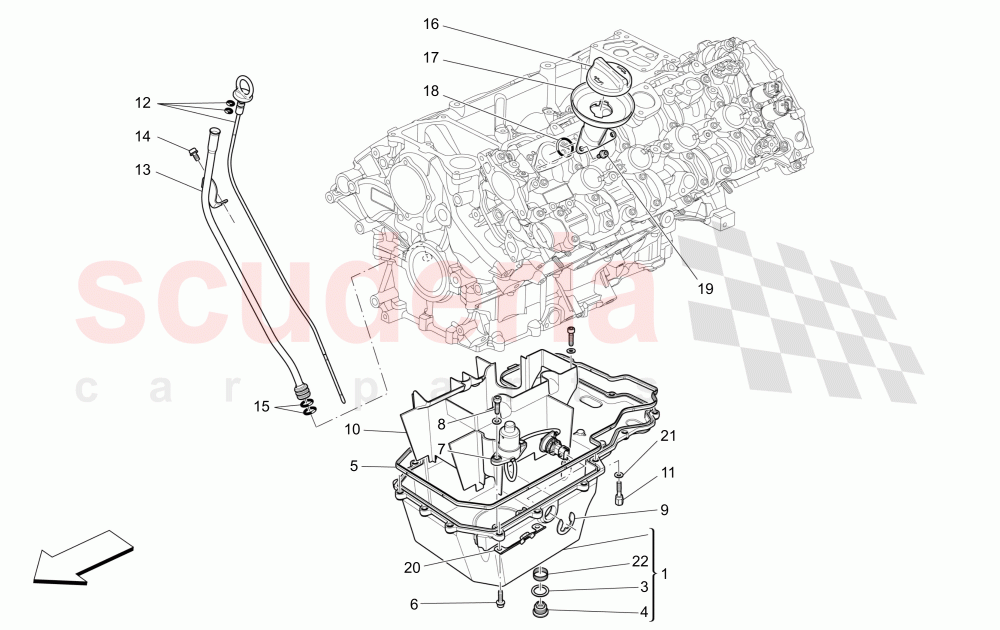

LUBRICATION SYSTEM: CIRCUIT AND COLLECTION of Maserati Maserati Quattroporte (2013+) GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 289921
OIL SUMP ASSEMBLY
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$1,044.79 1
3 10261860
COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$1.20 1
4 104280
MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$13.02 1
5 301591
OIL SUMP GASKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$88.28 1
6 231620
SCREW M6 X 25
M6X25 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$1.74 17
7 230171
OIL LEVEL DETECTOR
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$64.29 1
8 282396
SCREW
M6X22 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$3.04 2
9 16165276
CIRCLIP
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$1.83 1
10 271468
OIL SUMP SHIELD
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$222.80 1
11 339948
STUD
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		- 1 Enquire
12 301461
DIPSTICK
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$23.05 1
13 297463
OIL DIPSTICK HOLDER EXTENSION
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$39.68 1
14 233600
SCREW M6 X 12
M6X12 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$2.49 1
15 282370
O.R. GASKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$2.60 2
16 293205
ENGINE OIL FILLER CAP
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$33.31 1
17 307944
OIL CAP EXTENSION
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$157.26 1
18 14457881
GASKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$2.39 1
19 248334
SCREW M6 X 14MM
M6X16 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$3.11 2
20 277533
BRACKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$11.87 1
21 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X2.4 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$2.37 1
22 223577
THREADED INSERT M22 X 1.5 X 9MM
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$3.95 1
