Additional Air System

Maserati Quattroporte (2013+) GTS

Find Your Part

Maserati Quattroporte (2013+) GTS - ADDITIONAL AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675000752 VACUUM TANK $36.43 IN STOCK
Photo Part No Description Price (each) Stock
675000435 SCREW $4.79 IN STOCK
Photo Part No Description Price (each) Stock
675000438 SCREWM8X22 $1.71 IN STOCK
Photo Part No Description Price (each) Stock
670002843 ON/OFF SOLENOID VALVE $47.46 To Order
Photo Part No Description Price (each) Stock
14304624 SCREW $0.99 IN STOCK
Photo Part No Description Price (each) Stock
12604178 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
670007423 UNDERBODY VACUUM PIPE - 1st SECTION $72.37 To Order
Photo Part No Description Price (each) Stock
670005592 PIPE BETWEEN VACUUM TANK AND VACUUM PIPE $26.18 To Order
Photo Part No Description Price (each) Stock
670003500 SECONDARY AIR PUMP $455.10 To Order
Photo Part No Description Price (each) Stock
670003501 AIR PUMP FIXING BRACKET $57.01 To Order
Photo Part No Description Price (each) Stock
670160876 BRACKET $8.40 IN STOCK
Photo Part No Description Price (each) Stock
675000076 CLIP $0.91 IN STOCK
Photo Part No Description Price (each) Stock
16286024 Screw Hex Head 6 X 16 $2.41 IN STOCK
Photo Part No Description Price (each) Stock
675000076 CLIP $0.91 IN STOCK
Photo Part No Description Price (each) Stock
670003008 AIR DELIVERY PIPE TO VALVES ASS. $206.24 To Order
Photo Part No Description Price (each) Stock
670003608 PIPE BETWEEN AIR PUMP AND AIRBOX $48.83 To Order
Photo Part No Description Price (each) Stock
670005593 BRACKET ASSEMBLY $3.82 To Order
Photo Part No Description Price (each) Stock
675000076 CLIP $0.91 IN STOCK
Photo Part No Description Price (each) Stock
283441 SECONDARY AIR VALVE $139.80 To Order
Photo Part No Description Price (each) Stock
186781 Gasket for Manifold $5.47 IN STOCK
Photo Part No Description Price (each) Stock
292658 L.H. SECONDARY AIR VALVE SUPPORT $81.99 To Order
Photo Part No Description Price (each) Stock
231618 SCREW M6 X 20 $1.20 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW M6 X 22MM $2.60 IN STOCK
Photo Part No Description Price (each) Stock
292657 RH SECONDARY AIR VALVE SUPPORT $76.12 To Order
Photo Part No Description Price (each) Stock
670003207 PRESSURE TRANSMITTER $86.65 To Order
Photo Part No Description Price (each) Stock
231617 SCREW M6 X 18 $2.60 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.37 IN STOCK
Photo Part No Description Price (each) Stock
670007033 SECONDARY AIR DUCT PRESSURE SENSOR SUPPORT $47.87 To Order
Photo Part No Description Price (each) Stock
675000438 SCREWM8X22 $1.71 IN STOCK
Photo Part No Description Price (each) Stock
675000191 SCREWM6X14 $2.07 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.37 IN STOCK
Photo Part No Description Price (each) Stock
675000205 CLIP $11.13 To Order
Photo Part No Description Price (each) Stock
675000202 CLIP $13.07 To Order
Photo Part No Description Price (each) Stock
675000191 SCREWM6X14 $2.07 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.37 IN STOCK
Photo Part No Description Price (each) Stock
675000352 HOSE ELASTIC COLLAR D.23 $3.61 IN STOCK
Photo Part No Description Price (each) Stock
670006740 RETAINING CLIP $3.81 To Order
Photo Part No Description Price (each) Stock
670005928 CLIP $3.19 To Order
View All

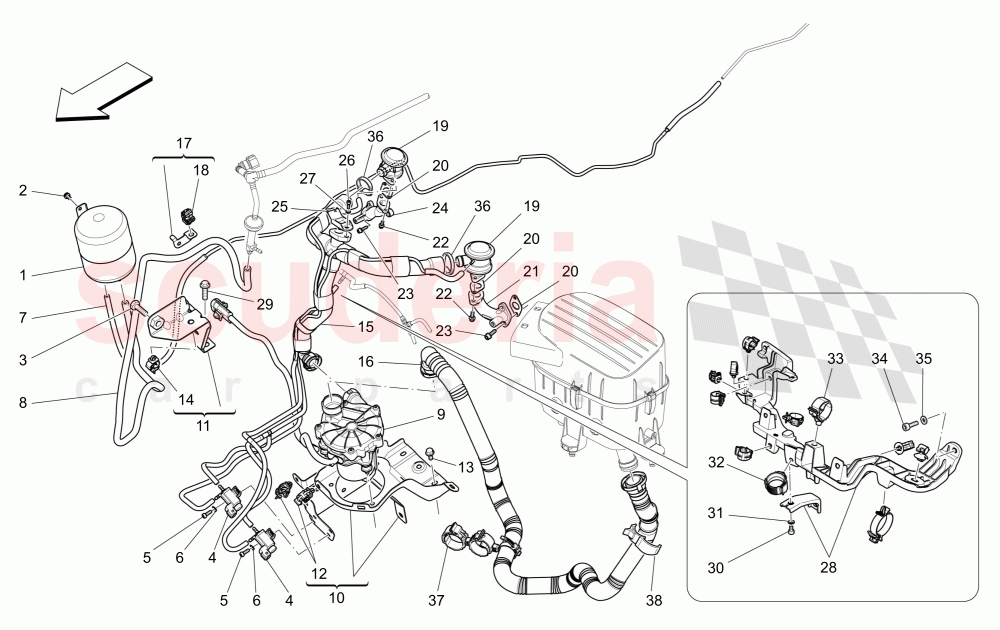

ADDITIONAL AIR SYSTEM of Maserati Maserati Quattroporte (2013+) GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675000752
VACUUM TANK
IN STOCK 		$36.43 1
2 675000435
SCREW
IN STOCK 		$4.79 2
3 675000438
SCREWM8X22
M8X22
IN STOCK 		$1.71 1
4 670002843
ON/OFF SOLENOID VALVE 		$47.46 2
5 14304624
SCREW
IN STOCK 		$0.99 4
6 12604178
WASHER
D.5.3-11X0.5 		- 4 Enquire
7 670007423
UNDERBODY VACUUM PIPE - 1st SECTION 		$72.37 1
8 670005592
PIPE BETWEEN VACUUM TANK AND VACUUM PIPE 		$26.18 1
9 670003500
SECONDARY AIR PUMP 		$455.10 1
10 670003501
AIR PUMP FIXING BRACKET 		$57.01 1
11 670160876
BRACKET
IN STOCK 		$8.40 1
12 675000076
CLIP
IN STOCK 		$0.91 2
13 16286024
Screw Hex Head 6 X 16
M 6X 16
IN STOCK 		$2.41 3
14 675000076
CLIP
IN STOCK 		$0.91 1
15 670003008
AIR DELIVERY PIPE TO VALVES ASS. 		$206.24 1
16 670003608
PIPE BETWEEN AIR PUMP AND AIRBOX 		$48.83 1
17 670005593
BRACKET ASSEMBLY 		$3.82 1
18 675000076
CLIP
IN STOCK 		$0.91 1
19 283441
SECONDARY AIR VALVE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$139.80 2
20 186781
Gasket for Manifold
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$5.47 4
21 292658
L.H. SECONDARY AIR VALVE SUPPORT
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$81.99 1
22 231618
SCREW M6 X 20
M6X20 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$1.20 4
23 231619
SCREW M6 X 22MM
M6X22 SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION
IN STOCK 		$2.60 6
24 292657
RH SECONDARY AIR VALVE SUPPORT
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$76.12 1
25 670003207
PRESSURE TRANSMITTER 		$86.65 1
26 231617
SCREW M6 X 18
M6X16
IN STOCK 		$2.60 1
27 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X1.2
IN STOCK 		$2.37 1
28 670007033
SECONDARY AIR DUCT PRESSURE SENSOR SUPPORT 		$47.87 1
29 675000438
SCREWM8X22
M8X22
IN STOCK 		$1.71 1
30 675000191
SCREWM6X14
M6X14 		$2.07 1
31 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X1.2
IN STOCK 		$2.37 1
32 675000205
CLIP 		$11.13 1
33 675000202
CLIP 		$13.07 1
34 675000191
SCREWM6X14
M6X14 		$2.07 3
35 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D.6.4-12X1.2
IN STOCK 		$2.37 3
36 675000352
HOSE ELASTIC COLLAR D.23
D.23
IN STOCK 		$3.61 2
37 670006740
RETAINING CLIP 		$3.81 1
38 670005928
CLIP 		$3.19 1
