Crank Mechanism

Maserati Quattroporte (2013+) GTS

Find Your Part

Maserati Quattroporte (2013+) GTS - CRANK MECHANISM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
315650 CRANKSHAFT $2,653.39 To Order
Photo Part No Description Price (each) Stock
271406 UPPER HALF-BEARING $25.20 To Order
271408 UPPER HALF-BEARING $27.55 To Order
271409 UPPER HALF-BEARING $27.35 IN STOCK
Photo Part No Description Price (each) Stock
271412 LOWER HALF-BEARING $16.77 IN STOCK
271413 LOWER HALF-BEARING $18.39 To Order
271414 LOWER HALF-BEARING $16.77 To Order
Photo Part No Description Price (each) Stock
271589 SHIM WASHER $17.90 To Order
Photo Part No Description Price (each) Stock
271810 CYLINDERS LINER $382.24 To Order
Photo Part No Description Price (each) Stock
281902 TORSION DAMPER $521.53 To Order
Photo Part No Description Price (each) Stock
271609 WASHER $8.77 To Order
Photo Part No Description Price (each) Stock
14308074 ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55 $9.43 To Order
Photo Part No Description Price (each) Stock
271592 O.R. GASKET $10.34 To Order
Photo Part No Description Price (each) Stock
271598 GASKET $32.58 To Order
Photo Part No Description Price (each) Stock
296962 LH SIDE ENGINE PISTON WITH RINGS $301.43 To Order
Photo Part No Description Price (each) Stock
297700 CONNECTING ROD SHAFT AND CAP ASSEMBLY $239.95 To Order
Photo Part No Description Price (each) Stock
296961 RH SIDE ENGINE PISTON WITH RINGS $340.09 To Order
Photo Part No Description Price (each) Stock
286954 SEAL RING $84.68 IN STOCK
Photo Part No Description Price (each) Stock
296139 SEAL RING $31.07 IN STOCK
Photo Part No Description Price (each) Stock
287177 OIL SCRAPER RING $62.43 IN STOCK
Photo Part No Description Price (each) Stock
270275 LOCK RING $11.62 To Order
Photo Part No Description Price (each) Stock
270274 PIN $35.42 To Order
Photo Part No Description Price (each) Stock
270249 CONNECTING ROD TIGHTENING SCREW Enquire To Order
Photo Part No Description Price (each) Stock
271401 CONNECTING ROD HALF-BEARING $15.16 To Order
271402 CONNECTING ROD HALF-BEARING $16.36 IN STOCK
271403 CONNECTING ROD HALF-BEARING $15.16 To Order
Photo Part No Description Price (each) Stock
292751 CENTRING PIN FOR CONNECTING RODS $34.92 To Order
283507 CENTRING PIN FOR CONNECTING RODS $1.44 To Order
292751 CENTRING PIN FOR CONNECTING RODS $34.92 To Order
Photo Part No Description Price (each) Stock
277212 PISTONS COOLING NOZZLE $40.63 To Order
Photo Part No Description Price (each) Stock
277213 PISTONS COOLING NOZZLE $28.28 To Order
Photo Part No Description Price (each) Stock
262413 SCREW $2.70 To Order
Photo Part No Description Price (each) Stock
176396 THREADED PLUG $11.13 To Order
View All

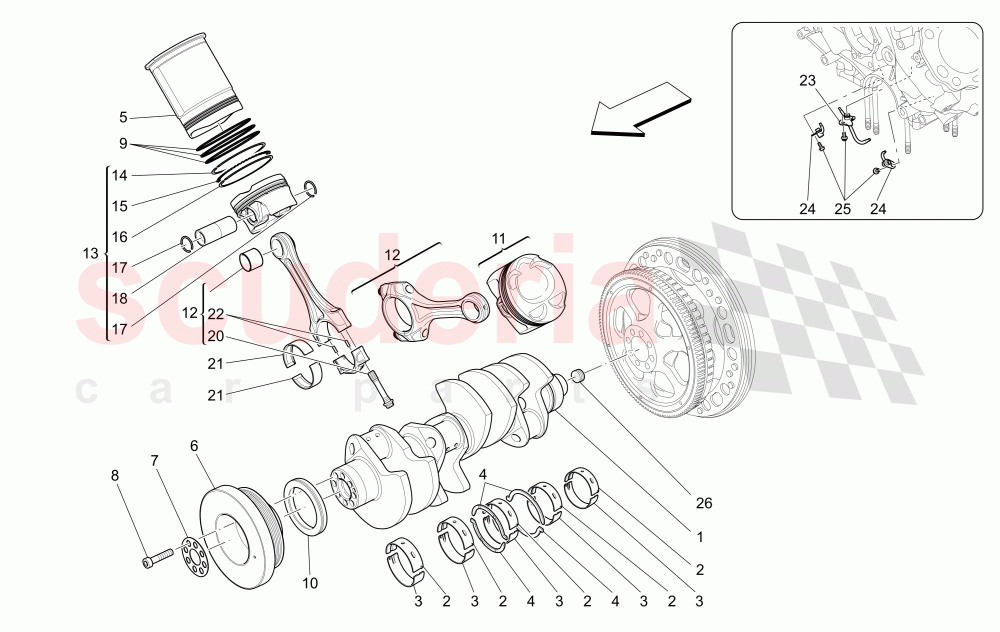

CRANK MECHANISM of Maserati Maserati Quattroporte (2013+) GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 315650
CRANKSHAFT
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$2,653.39 1
2 271406
UPPER HALF-BEARING
Green - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK 		$25.20 5
2 271408
UPPER HALF-BEARING
Yellow - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK 		$27.55 5
2 271409
UPPER HALF-BEARING
Blue - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$27.35 5
3 271412
LOWER HALF-BEARING
Green - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$16.77 5
3 271413
LOWER HALF-BEARING
Yellow - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK 		$18.39 5
3 271414
LOWER HALF-BEARING
Blue - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK 		$16.77 5
4 271589
SHIM WASHER
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$17.90 4
5 271810
CYLINDERS LINER
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$382.24 8
6 281902
TORSION DAMPER
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$521.53 1
7 271609
WASHER
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$8.77 1
8 14308074
ALLEN SCREW SOCKET HEAD M10 X 1.25 X 55
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$9.43 8
9 271592
O.R. GASKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$10.34 24
10 271598
GASKET
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$32.58 1
11 296962
LH SIDE ENGINE PISTON WITH RINGS
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$301.43 4
12 297700
CONNECTING ROD SHAFT AND CAP ASSEMBLY 		$239.95 8
13 296961
RH SIDE ENGINE PISTON WITH RINGS
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$340.09 4
14 286954
SEAL RING
1st groove - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$84.68 8
15 296139
SEAL RING
2nd groove - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$31.07 8
16 287177
OIL SCRAPER RING
3nd groove - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$62.43 8
17 270275
LOCK RING
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$11.62 16
18 270274
PIN
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$35.42 8
20 270249
CONNECTING ROD TIGHTENING SCREW
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		- 16 Enquire
21 271401
CONNECTING ROD HALF-BEARING
Black - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK 		$15.16 16
21 271402
CONNECTING ROD HALF-BEARING
Blue - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK
IN STOCK 		$16.36 16
21 271403
CONNECTING ROD HALF-BEARING
Red - UPON AUTHORIZATION BY THE MASERATI SERVICE NETWORK 		$15.16 16
22 292751
CENTRING PIN FOR CONNECTING RODS 		$34.92 16
22 283507
CENTRING PIN FOR CONNECTING RODS
IF 283507 STOCK=0, FOR THE FIRST REPLACE OF THE COMPONENT PLEASE SELL-OUT COMPLETE PISTON ROD WITH PN 297700 AND UPDATE VARIANT TRACKING. FOR THE NEXT REPLACE YOU CAN ORDER ONLY PN 292751 		$1.44 16
22 292751
CENTRING PIN FOR CONNECTING RODS
FOR THE FIRST REPLACE ITโ€™S MANDATORY ORDER THE COMPLETE PISTON ROD WITH PN 297700 AND UPDATED VARIANT TRACKING. FOR THE NEXT REPLACE YOU CAN ORDER ONLY THE SINGLE CENTRING PIN 		$34.92 16
23 277212
PISTONS COOLING NOZZLE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$40.63 4
24 277213
PISTONS COOLING NOZZLE
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$28.28 8
25 262413
SCREW
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$2.70 12
26 176396
THREADED PLUG
SUBJECT TO MASERATI TECHNICAL SERVICE AUTHORISATION 		$11.13 1
