Fuel Pumps And Connection Lines

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV

Illustration Number: 01431

Find Your Part

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV - FUEL PUMPS AND CONNECTION LINES (01431)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
675002220 FUEL PUMP $341.19 To Order
Photo Part No Description Price (each) Stock
675001996 GASKET $63.20 To Order
Photo Part No Description Price (each) Stock
675001997 RING NUT $19.14 To Order
Photo Part No Description Price (each) Stock
675001492 INSPECTION COVER $24.19 To Order
Photo Part No Description Price (each) Stock
675000680 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
675001766 BLOCK $0.78 To Order
Photo Part No Description Price (each) Stock
670156350 UNDERFLOOR FUEL PIPES $84.01 To Order
Photo Part No Description Price (each) Stock
670156527 FRONT UNDERFLOOR FUEL PIPES $54.31 To Order
Photo Part No Description Price (each) Stock
670296105 FUEL DELIVERY TUBE $113.40 To Order
Photo Part No Description Price (each) Stock
675001000 ENGINE COMPARTMENT FUEL PIPES $95.32 To Order
Photo Part No Description Price (each) Stock
670156530 BRACKET $5.26 To Order
Photo Part No Description Price (each) Stock
675000998 BRACKET $3.69 To Order
Photo Part No Description Price (each) Stock
675001876 FUEL PUMP ELECTRIC CONTROL UNIT $117.77 To Order
Photo Part No Description Price (each) Stock
675001835 CLIP $2.69 To Order
Photo Part No Description Price (each) Stock
675001815 SCREW $1.21 To Order
Photo Part No Description Price (each) Stock
675001747 GASKET $2.30 To Order
View All

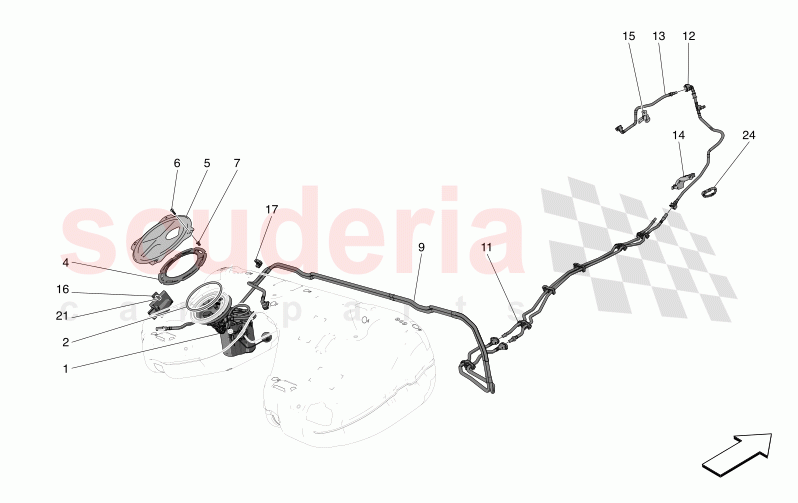

FUEL PUMPS AND CONNECTION LINES of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 675002220
FUEL PUMP 		$341.19 1
2 675001996
GASKET 		$63.20 1
4 675001997
RING NUT 		$19.14 1
5 675001492
INSPECTION COVER 		$24.19 1
6 675000680
SCREW 		$0.97 4
7 675001766
BLOCK 		$0.78 4
9 670156350
UNDERFLOOR FUEL PIPES 		$84.01 1
11 670156527
FRONT UNDERFLOOR FUEL PIPES 		$54.31 1
12 670296105
FUEL DELIVERY TUBE 		$113.40 1
13 675001000
ENGINE COMPARTMENT FUEL PIPES 		$95.32 1
14 670156530
BRACKET 		$5.26 1
15 675000998
BRACKET 		$3.69 1
16 675001876
FUEL PUMP ELECTRIC CONTROL UNIT 		$117.77 1
17 675001835
CLIP 		$2.69 1
21 675001815
SCREW 		$1.21 2
24 675001747
GASKET 		$2.30 1
