Crankcase

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV

Illustration Number: 01001

Find Your Part

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV - CRANKCASE (01001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670054764 ENGINE BLOCK $3,381.64 To Order
670054052 ENGINE BLOCK $3,381.64 To Order
Photo Part No Description Price (each) Stock
675000844 SCREW $2.91 To Order
Photo Part No Description Price (each) Stock
675000923 BASE SHIELD $18.65 To Order
Photo Part No Description Price (each) Stock
675001971 LH ENGINE MOUNTING BRACKET $222.66 To Order
Photo Part No Description Price (each) Stock
675001128 SCREW $2.57 To Order
Photo Part No Description Price (each) Stock
675001604 LH ENGINE BUSHING $211.77 To Order
675001603 RH ENGINE BUSHING $211.77 To Order
Photo Part No Description Price (each) Stock
675001345 SCREW $2.32 To Order
Photo Part No Description Price (each) Stock
675001507 NUT $3.48 To Order
Photo Part No Description Price (each) Stock
675000841 CENTERING DOWEL $2.25 To Order
Photo Part No Description Price (each) Stock
675000836 PLUG $2.15 To Order
Photo Part No Description Price (each) Stock
675000872 REAR PLATE $71.05 To Order
675007942 REAR PLATE $66.71 To Order
Photo Part No Description Price (each) Stock
675000873 SCREW $2.64 To Order
Photo Part No Description Price (each) Stock
675000891 CENTERING PIN $4.79 To Order
Photo Part No Description Price (each) Stock
675000835 PLUG $1.79 To Order
Photo Part No Description Price (each) Stock
675000837 PLUG $1.16 To Order
Photo Part No Description Price (each) Stock
675000874 PLUG $2.15 To Order
Photo Part No Description Price (each) Stock
675001972 RH ENGINE MOUNTING BRACKET $246.41 To Order
Photo Part No Description Price (each) Stock
675000881 STUD $4.93 To Order
Photo Part No Description Price (each) Stock
675007373 CABLE FOR ENGINE-FRAME EARTH $28.94 To Order
675001705 CABLE FOR ENGINE-FRAME EARTH $28.55 To Order
Photo Part No Description Price (each) Stock
16288424 SCREW $8.02 To Order
Photo Part No Description Price (each) Stock
673016397 LONG BLOCK $7,933.58 To Order
673016397 LONG BLOCK $7,933.58 To Order
Photo Part No Description Price (each) Stock
675001157 SEAL RING $36.66 To Order
View All

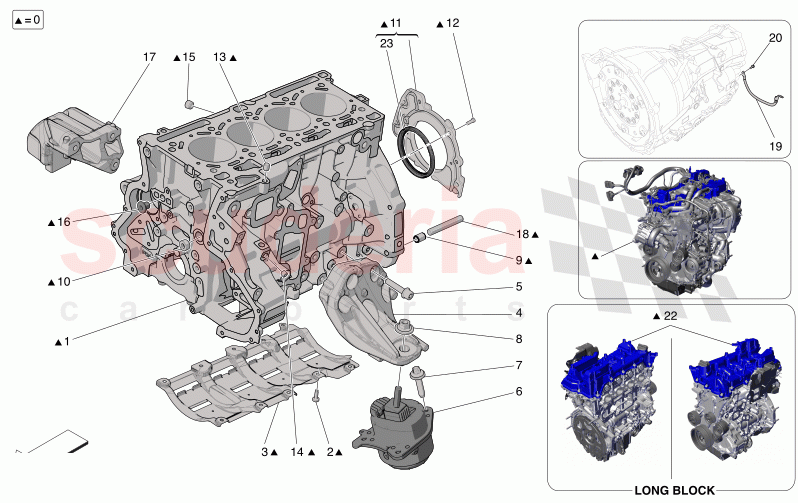

CRANKCASE of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 670054763
ENGINE ASSEMBLY
Bespoke Assembly Number 2036904 - 99999999; 		$13,409.55 1
- 670054411
ENGINE ASSEMBLY
IF STOCK=0 ORDER THE COMPLETE ENGINE PN 670054763 TOGETHER WITH THE PIPES PN 670054428 (FOR LHD) OR PN 670054429 (FOR RHD) AND PN 670309803; Bespoke Assembly Number 2025460 - 2036903; EU AU CN UK JP ME JRH IN KO N0 N8; 		$12,617.16 1
- 670054344
ENGINE ASSEMBLY
Bespoke Assembly Number 0 - 2025459; EU AU CN UK JP ME JRH IN KO N0 N8; 		$12,617.16 1
1 670054764
ENGINE BLOCK
Bespoke Assembly Number 2036904 - 99999999; 		$3,381.64 1
1 670054052
ENGINE BLOCK
IF STOCK=0 ORDER THE ENGINE BLOCK PN 670054764 TOGETHER WITH THE PN 670054410 , PN 670054428 (FOR LHD) OR PN 670054429 (FOR RHD) AND PN 670309803; Bespoke Assembly Number 0 - 2036903; 		$3,381.64 1
2 675000844
SCREW 		$2.91 9
3 675000923
BASE SHIELD 		$18.65 1
4 675001971
LH ENGINE MOUNTING BRACKET 		$222.66 1
5 675001128
SCREW 		$2.57 7
6 675001604
LH ENGINE BUSHING 		$211.77 1
6 675001603
RH ENGINE BUSHING 		$211.77 1
7 675001345
SCREW 		$2.32 6
8 675001507
NUT 		$3.48 2
9 675000841
CENTERING DOWEL 		$2.25 2
10 675000836
PLUG 		$2.15 2
11 675000872
REAR PLATE
Bespoke Engine Number 0 - 1960428; 		$71.05 1
11 675007942
REAR PLATE
Bespoke Engine Number 1960429 - ZZZZZZZZ; 		$66.71 1
12 675000873
SCREW 		$2.64 8
13 675000891
CENTERING PIN 		$4.79 2
14 675000835
PLUG 		$1.79 4
15 675000837
PLUG 		$1.16 1
16 675000874
PLUG 		$2.15 1
17 675001972
RH ENGINE MOUNTING BRACKET 		$246.41 1
18 675000881
STUD 		$4.93 4
19 675007373
CABLE FOR ENGINE-FRAME EARTH
Bespoke Assembly Number 2025900 - 99999999; 		$28.94 1
19 675001705
CABLE FOR ENGINE-FRAME EARTH
Bespoke Assembly Number 0 - 2025899; 		$28.55 1
20 16288424
SCREW 		$8.02 1
22 673016397
LONG BLOCK
Bespoke Assembly Number 2036904 - 99999999; 		$7,933.58 1
22 673016397
LONG BLOCK
FOR ASSEMBLY < 2036904 ORDER ALSO THE PN 670054410, PN 670054428 (FOR LHD) OR PN 670054429 (FOR RHD) AND PN 670309803; Bespoke Assembly Number 0 - 2036903; 		$7,933.58 1
23 675001157
SEAL RING 		$36.66 1
