Intake Manifold And Throttle Body

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV

Illustration Number: 01401

Find Your Part

Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV - INTAKE MANIFOLD AND THROTTLE BODY (01401)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670050579 THROTTLE BODY $566.16 To Order
Photo Part No Description Price (each) Stock
670051720 SCREW $2.77 To Order
Photo Part No Description Price (each) Stock
670053613 INTAKE MANIFOLD $295.48 To Order
Photo Part No Description Price (each) Stock
675000976 SENSOR $108.79 To Order
Photo Part No Description Price (each) Stock
670051107 SCREW $1.93 To Order
Photo Part No Description Price (each) Stock
670037194 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
670051584 BUSHING $33.12 To Order
Photo Part No Description Price (each) Stock
670037087 GASKET $41.89 To Order
Photo Part No Description Price (each) Stock
675000969 NUT $1.02 To Order
Photo Part No Description Price (each) Stock
670053044 BRACKET $37.66 To Order
Photo Part No Description Price (each) Stock
675000960 SCREW $3.37 To Order
Photo Part No Description Price (each) Stock
675000976 SENSOR $108.79 To Order
Photo Part No Description Price (each) Stock
673015229 THROTTLE BODY AND GASKET KIT $331.16 To Order
Photo Part No Description Price (each) Stock
675000980 SCREW $17.80 To Order
Photo Part No Description Price (each) Stock
675000983 RUBBER $34.73 To Order
Photo Part No Description Price (each) Stock
673011075 GASKET KIT $159.44 To Order
Photo Part No Description Price (each) Stock
675000954 SCREW $3.37 To Order
Photo Part No Description Price (each) Stock
675001484 INTAKE MANIFOLD ASSEMBLY $528.48 To Order
675001484 INTAKE MANIFOLD ASSEMBLY $528.48 To Order
675004718 INTAKE MANIFOLD ASSEMBLY $528.48 To Order
Photo Part No Description Price (each) Stock
673013363 GASKET $16.71 To Order
View All

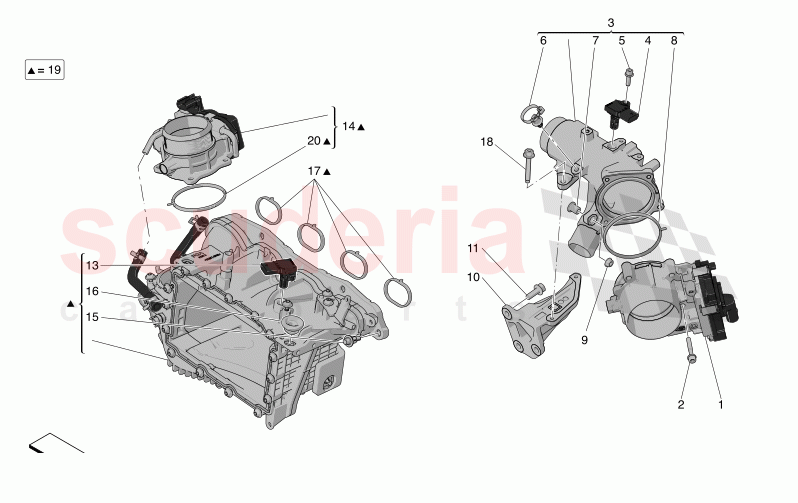

INTAKE MANIFOLD AND THROTTLE BODY of Maserati Maserati Grecale Modena Automatic 2.0 T4 4WD 330HP MHEV Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670050579
THROTTLE BODY 		$566.16 1
2 670051720
SCREW 		$2.77 4
3 670053613
INTAKE MANIFOLD 		$295.48 1
4 675000976
SENSOR 		$108.79 1
5 670051107
SCREW 		$1.93 1
6 670037194
CLIP 		- 1 Enquire
7 670051584
BUSHING 		$33.12 1
8 670037087
GASKET 		$41.89 1
9 675000969
NUT 		$1.02 1
10 670053044
BRACKET 		$37.66 1
11 675000960
SCREW 		$3.37 3
13 675000976
SENSOR 		$108.79 1
14 673015229
THROTTLE BODY AND GASKET KIT 		$331.16 1
15 675000980
SCREW 		$17.80 5
16 675000983
RUBBER 		$34.73 2
17 673011075
GASKET KIT 		$159.44 1
18 675000954
SCREW 		$3.37 2
19 675001484
INTAKE MANIFOLD ASSEMBLY
Bespoke Engine Number 0 - 1724357; 		$528.48 1
19 675001484
INTAKE MANIFOLD ASSEMBLY
Bespoke Engine Number 1724358 - 1880351; 		$528.48 1
19 675004718
INTAKE MANIFOLD ASSEMBLY
Bespoke Engine Number 1880352 - 0; 		$528.48 1
20 673013363
GASKET 		$16.71 1
