Front Underchassis

Maserati 4200 Spyder (2005-2007) CC

Find Your Part

Maserati 4200 Spyder (2005-2007) CC - FRONT UNDERCHASSIS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67650500 FRONT UNDERFRAME $1,740.69 To Order
Photo Part No Description Price (each) Stock
184141 ANTI-HEAT SHIELD $54.24 To Order
Photo Part No Description Price (each) Stock
14039614 NUT $1.33 IN STOCK
Photo Part No Description Price (each) Stock
11306924 SCREW $1.90 To Order
Photo Part No Description Price (each) Stock
12620774 WASHER $1.76 To Order
Photo Part No Description Price (each) Stock
12626224 WASHER $2.24 IN STOCK
Photo Part No Description Price (each) Stock
66318700 REAR PLATE $2.81 To Order
Photo Part No Description Price (each) Stock
14422574 SCREW $2.67 To Order
Photo Part No Description Price (each) Stock
11198674 WASHER $2.01 To Order
Photo Part No Description Price (each) Stock
10732531 WASHER $3.00 IN STOCK
Photo Part No Description Price (each) Stock
14422574 SCREW $2.67 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10732531 WASHER $3.00 IN STOCK
Photo Part No Description Price (each) Stock
184842 UNDERMOTOR SHIELD $84.61 To Order
Photo Part No Description Price (each) Stock
16043324 SCREW M8 X 18 $1.80 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $1.80 IN STOCK
Photo Part No Description Price (each) Stock
191790 PAD LOWER SHIELD $19.10 To Order
Photo Part No Description Price (each) Stock
16043224 SCREW $1.74 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $1.80 IN STOCK
Photo Part No Description Price (each) Stock
14039614 NUT $1.33 IN STOCK
Photo Part No Description Price (each) Stock
13579224 WASHER $1.22 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.34 IN STOCK
Photo Part No Description Price (each) Stock
66601200 PLATE $20.17 To Order
66601300 PLATE $2.77 To Order
66601400 PLATE $3.32 To Order
View All

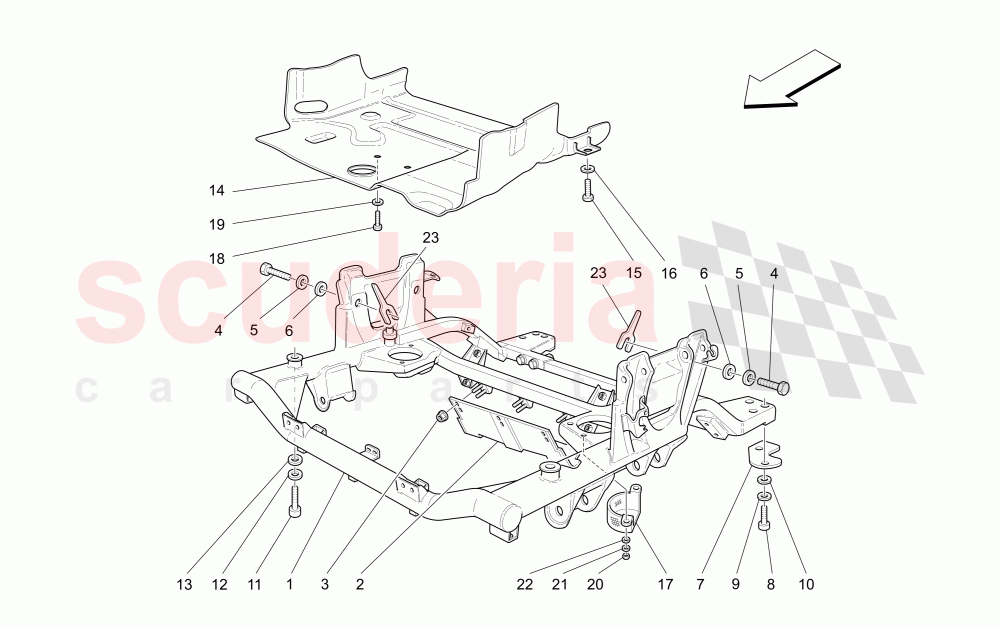

FRONT UNDERCHASSIS of Maserati Maserati 4200 Spyder (2005-2007) CC Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67650500
FRONT UNDERFRAME 		$1,740.69 (15.2% off) 1
2 184141
ANTI-HEAT SHIELD 		$54.24 (21% off) 1
3 14039614
NUT
M 6
IN STOCK 		$1.33 6
4 11306924
SCREW 		$1.90 (18.5% off) 4
5 12620774
WASHER 		$1.76 4
6 12626224
WASHER
IN STOCK 		$2.24 4
7 66318700
REAR PLATE 		$2.81 (7% off) 2
8 14422574
SCREW 		$2.67 (14.1% off) 4
9 11198674
WASHER 		$2.01 4
10 10732531
WASHER
IN STOCK 		$3.00 4
11 14422574
SCREW 		$2.67 (14.1% off) 4
12 84653800
WASHER 		- 4 Enquire
13 10732531
WASHER
IN STOCK 		$3.00 4
14 184842
UNDERMOTOR SHIELD
Not for USA and CDN 		$84.61 (15.6% off) 1
15 16043324
SCREW M8 X 18
Not for USA and CDN
IN STOCK 		$1.80 2
16 14496524
WASHER D.8.4 X 17 X 1.6
D. 8.40-17 X1.6 Not for USA and CDN
IN STOCK 		$1.80 2
17 191790
PAD LOWER SHIELD
Valid for USA and CDN 		$19.10 (21.5% off) 2
18 16043224
SCREW
IN STOCK 		$1.74 2
19 14496524
WASHER D.8.4 X 17 X 1.6
D. 8.40-17 X1.6
IN STOCK 		$1.80 2
20 14039614
NUT
Valid for USA and CDN
IN STOCK 		$1.33 4
21 13579224
WASHER
Valid for USA and CDN
IN STOCK 		$1.22 4
22 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 Valid for USA and CDN
IN STOCK 		$2.34 4
23 66601200
PLATE
Tickness mm. 0,5 		$20.17 -
23 66601300
PLATE
Tickness mm. 1 		$2.77 -
23 66601400
PLATE
Thickness mm. 2 		$3.32 -
